# evaluateHeatRate

Evaluate integrated heat flow rate normal to specified boundary

## Syntax

``Qn = evaluateHeatRate(thermalresults,RegionType,RegionID)``

## Description

````Qn = evaluateHeatRate(thermalresults,RegionType,RegionID)` returns the integrated heat flow rate normal to the boundary specified by `RegionType` and `RegionID`.```

example

## Examples

collapse all

Compute the heat flow rate across a face of the block geometry.

Create an `femodel` object for steady-state thermal analysis and include a block geometry into the model.

```model = femodel(AnalysisType="thermalSteady", ... Geometry="Block.stl");```

Plot the geometry.

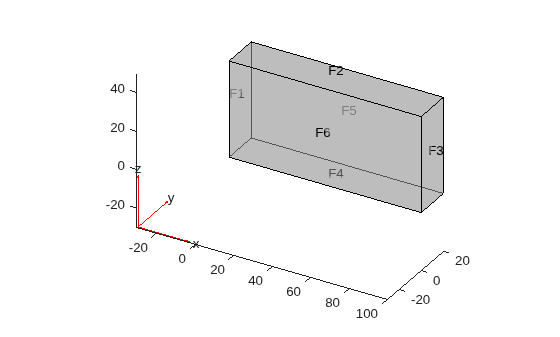

`pdegplot(model.Geometry,FaceLabels="on",FaceAlpha=0.5)`

Specify the thermal conductivity of the block.

```model.MaterialProperties = ... materialProperties(ThermalConductivity=80);```

Apply constant temperatures on the opposite ends of the block. All other faces are insulated by default.

```model.FaceBC(1) = faceBC(Temperature=100); model.FaceBC(3) = faceBC(Temperature=50);```

Generate a mesh.

`model = generateMesh(model);`

Solve the thermal problem.

`R = solve(model);`

Compute the heat flow rate across face 3 of the block.

`Qn = evaluateHeatRate(R,Face=3)`
```Qn = 4.0000e+04 ```

Compute the heat flow rate across the surface of the cooling sphere.

Create an `femodel` object for transient thermal analysis and include a unit sphere into the model.

```model = femodel(AnalysisType="thermalTransient", ... Geometry=multisphere(1));```

Generate a mesh.

`model = generateMesh(model,GeometricOrder="linear");`

Specify thermal properties of the sphere.

```model.MaterialProperties = ... materialProperties(ThermalConductivity=80, ... SpecificHeat=460, ... MassDensity=7800);```

Apply a convection boundary condition on the surface of the sphere.

```model.FaceLoad(1) = ... faceLoad(ConvectionCoefficient=500,... AmbientTemperature=30);```

Set the initial temperature.

`model.CellIC = cellIC(Temperature=800);`

Solve the thermal problem.

```tlist = 0:100:2000; R = solve(model,tlist);```

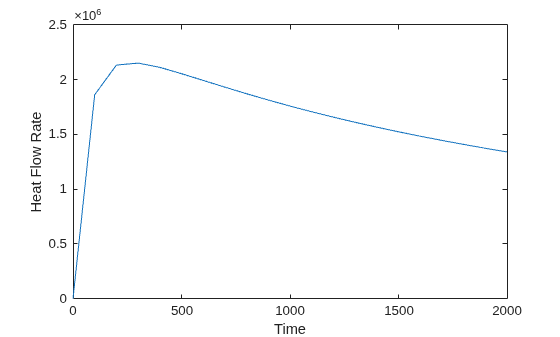

Compute the heat flow rate across the surface of the sphere over time.

```Qn = evaluateHeatRate(R,Face=1); plot(tlist,Qn) xlabel("Time") ylabel("Heat Flow Rate")```

## Input Arguments

collapse all

Solution of a thermal problem, specified as a `SteadyStateThermalResults` object. Create `thermalresults` using the `solve` function.

Geometric region type, specified as `Face` for 3-D geometry or `Edge` for 2-D geometry.

Example: ```Qn = evaluateHeatRate(thermalresults,Face=3)```

Data Types: `char` | `string`

Geometric region ID, specified as a positive integer. Find the region IDs using the `pdegplot` function with the `FaceLabels` (3-D) or `EdgeLabels` (2-D) value set to `"on"`.

Example: ```Qn = evaluateHeatRate(thermalresults,Face=3)```

Data Types: `double`

## Output Arguments

collapse all

Heat flow rate, returned as a real number or, for time-dependent results, a vector of real numbers. This value represents the integrated heat flow rate, measured in energy per unit time, flowing in the direction normal to the boundary. `Qn` is positive if the heat flows out of the domain, and negative if the heat flows into the domain.

## Version History

Introduced in R2017a
