trimesh

Triangular mesh plot

Description

trimesh(T,x,y) plots the 2-D triangular mesh defined by the points in vectors x and y and a triangle connectivity matrix T.

example

trimesh(T,x,y,z) plots a 3-D triangular mesh.

trimesh(x,y,z,c) also specifies the mesh edge color for a 3-D triangular mesh.

example

trimesh(TO) plots the mesh defined by a 2-D or 3-D triangulation or delaunayTriangulation object.

trimesh(___,Name,Value) specifies one or more properties of the mesh plot using name-value pairs. For example, 'LineWidth',2 sets the edge width to 2 points.

h = trimesh(___) returns a patch object used to create the mesh plot. Use h to query and modify properties of the plot. For more information, see Patch Properties.

Examples

collapse all

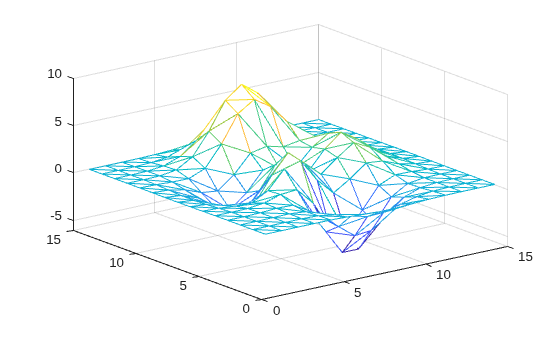

Create a set of 3-D points. Compute a Delaunay triangulation connectivity matrix using the delaunay function, and plot the mesh.

[x,y] = meshgrid(1:15,1:15);
z = peaks(15);
T = delaunay(x,y);
trimesh(T,x,y,z)

Alternatively, you can create a triangulation object to plot the mesh.

TO = triangulation(T,x(:),y(:),z(:));
trimesh(TO)

Input Arguments

collapse all

Triangle connectivity, specified as a 3-column matrix where each row contains the point vertices defining a triangle.

x-coordinates, specified as a column vector.

y-coordinates, specified as a column vector.

z-coordinates, specified as a column vector.

Edge color, specified as a matrix of colormap indices the same size as z. For more information, see How Surface Plot Data Relates to a Colormap. For additional control over the surface coloring, use the 'EdgeColor' and 'FaceColor' name-value pairs.

Triangulation object, specified as a triangulation or delaunayTriangulation object.

Name-Value Pair Arguments

Specify optional comma-separated pairs of Name,Value arguments. Name is the argument name and Value is the corresponding value. Name must appear inside quotes. You can specify several name and value pair arguments in any order as Name1,Value1,...,NameN,ValueN.

Example: trimesh(TO,'LineStyle','--')

The properties listed here are only a subset. For a complete list, see Patch Properties.

Face color, specified as the comma-separated pair consisting of 'FaceColor' and a color name, an RGB triplet, or 'none'.

An RGB triplet is a three-element row vector whose elements specify the intensities of the red, green, and blue components of the color. The intensities must be in the range [0,1]; for example, [0.4 0.6 0.7]. This table lists the long and short color name options and the equivalent RGB triplet values.

Long NameShort NameRGB Triplet
'yellow''y'[1 1 0]
'magenta''m'[1 0 1]
'cyan''c'[0 1 1]
'red''r'[1 0 0]
'green''g'[0 1 0]
'blue''b'[0 0 1]
'white''w'[1 1 1]
'black''k'[0 0 0]

Face transparency, specified as the comma-separated pair consisting of 'FaceAlpha' and a scalar in the range [0,1]. A value of 1 is opaque and 0 is completely transparent. Values between 0 and 1 are semitransparent.

Edge color, specified as the comma-separated pair consisting of 'EdgeColor' and a color name, an RGB triplet, or 'none'. The default color of [0 0 0] corresponds to black boundaries.

An RGB triplet is a three-element row vector whose elements specify the intensities of the red, green, and blue components of the color. The intensities must be in the range [0,1]; for example, [0.4 0.6 0.7]. This table lists the long and short color name options and the equivalent RGB triplet values.

Long NameShort NameRGB Triplet
'yellow''y'[1 1 0]
'magenta''m'[1 0 1]
'cyan''c'[0 1 1]
'red''r'[1 0 0]
'green''g'[0 1 0]
'blue''b'[0 0 1]
'white''w'[1 1 1]
'black''k'[0 0 0]

Line width, specified as the comma-separated pair consisting of 'LineWidth' and a positive numeric value in points.

Line style, specified as one of the options listed in this table.

Line StyleDescriptionResulting Line
'-'Solid line

'--'Dashed line

':'Dotted line

'-.'Dash-dotted line

'none'No lineNo line

Extended Capabilities

Introduced before R2006a
