# sorty

Sort elements in heatmap column

## Syntax

``sorty(h,column)``
``sorty(h,column,direction)``
``sorty(___,'MissingPlacement',lcn)``
``sorty(h)``
``C = sorty(___)``
``[C,y] = sorty(___)``

## Description

example

````sorty(h,column)` displays the elements in `column` in ascending order (from top to bottom). This function sorts the column elements by rearranging the rows. Specify `column` as one element or as an array of elements from `XData`. If the first column that you specify has repeating values, then `sorty` rearranges the remaining rows according to the second column, and so on. ```

example

````sorty(h,column,direction)`, where `direction` is `'descend'`, sorts the values in descending order instead of ascending order (default). To sort in a unique direction for each column in `column`, specify `direction` as an array whose elements are `'ascend'` or `'descend'`.```
````sorty(___,'MissingPlacement',lcn)` specifies whether to put `NaN` elements first or last in the sort order. Specify `lcn` as `'first'`, `'last'`, or `'auto'`. The default setting is `'auto'`, which lists `NaN` elements last for ascending order and first for descending order. Use this option after any of the previous input argument combinations.```
````sorty(h)` displays the elements in the first column in ascending order. If the first column has repeating elements, then `sorty` rearranges the remaining rows according to the second column, and so on. ```
````C = sorty(___)` returns the sorted color data, which is a matrix of values as they appear in the heatmap chart.```

example

````[C,y] = sorty(___)` also returns the sorted y values in the order they are displayed.```

## Examples

collapse all

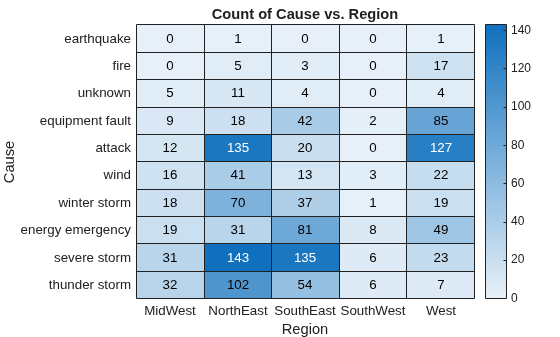

Create a heatmap of utility outages and sort the values in a particular column so that they appear in ascending order, from top to bottom.

First, create a heatmap. Read the sample file `outages.csv` into a table. The sample file contains data representing electric utility outages in the United States. The table contains six columns: `Region`, `OutageTime`, `Loss`, `Customers`, `RestorationTime`, and `Cause`. Create a heatmap that shows the different regions along the x-axis and the different outage causes along the y-axis. In each cell, show how many times each region experienced a power outage due to a particular cause.

```T = readtable('outages.csv'); h = heatmap(T,'Region','Cause');```

Sort the values in the `'NorthEast'` column so that they appear in ascending order from top to bottom.

`sorty(h,'NorthEast')`

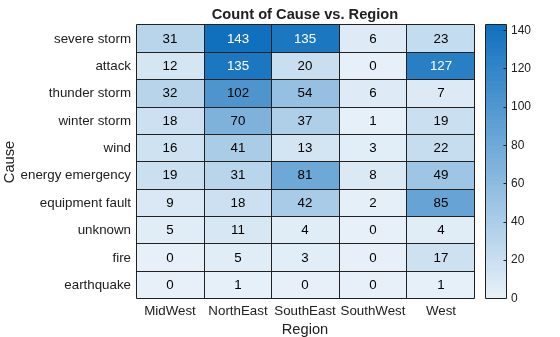

Create a heatmap of utility outages and display the values in the `'NorthEast'` column in descending order by rearranging the rows.

```T = readtable('outages.csv'); h = heatmap(T,'Region','Cause'); sorty(h,'NorthEast','descend')```

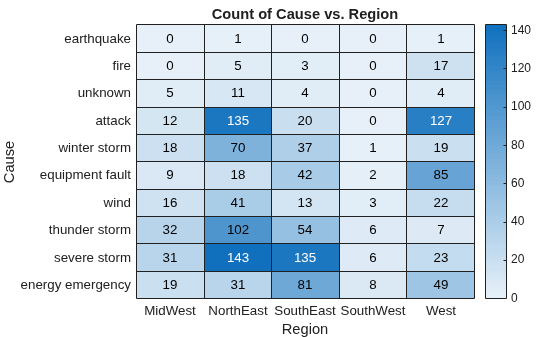

Create a heatmap of utility outages and rearrange the rows using values from multiple columns. Sort the rows so that the column `'SouthWest'` appears in ascending order. Since that column contains duplicate values, use the column `'NorthEast'` to sort the remaining rows.

```T = readtable('outages.csv'); h = heatmap(T,'Region','Cause'); sorty(h,{'SouthWest','NorthEast'})```

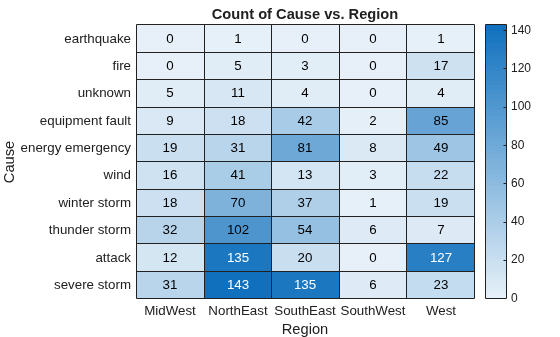

Create a heatmap of utility outages and sort the values in the `'NorthEast'` column so that they appear in ascending order, from top to bottom. Return the sorted color data and the row values (y values) in the order they appear along the y-axis.

```T = readtable('outages.csv'); h = heatmap(T,'Region','Cause'); [C,y] = sorty(h,'NorthEast')```

```C = 10×5 0 1 0 0 1 0 5 3 0 17 5 11 4 0 4 9 18 42 2 85 19 31 81 8 49 16 41 13 3 22 18 70 37 1 19 32 102 54 6 7 12 135 20 0 127 31 143 135 6 23 ```
```y = 10x1 cell {'earthquake' } {'fire' } {'unknown' } {'equipment fault' } {'energy emergency'} {'wind' } {'winter storm' } {'thunder storm' } {'attack' } {'severe storm' } ```

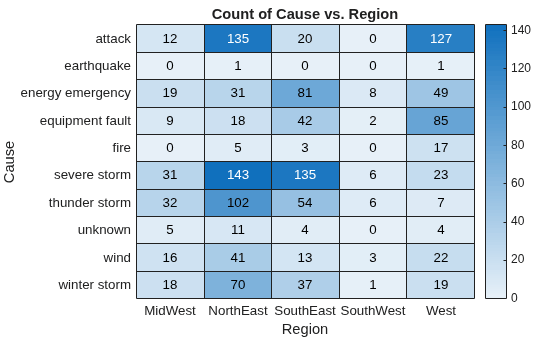

Create a heatmap of utility outages and sort the values in the left column in ascending order (from top to bottom) by rearranging the columns. Then, restore the original order.

```T = readtable('outages.csv'); h = heatmap(T,'Region','Cause'); sorty(h)```

Restore the original row order by setting the Y`DisplayData` property of the `HeatmapChart` object equal to the Y`Data` property.

`h.YDisplayData = h.YData;`

## Input Arguments

collapse all

Heatmap to update, specified as a `HeatmapChart` object.

Column to sort, specified as a character vector, cell array of character vectors, or string array indicating of one or more elements from the `XData` or `XDisplayData` property of the `HeatmapChart` object.

Example: `sorty(h,'MyColumnName')` sorts the elements in the column called `'MyColumnName'` in ascending order.

Direction to sort, specified as `'ascend'`, `'descend'`, a cell array of character vectors, or a string array.

• `'ascend'` — Sort all columns listed in `column` in ascending order.

• `'descend'` — Sort all columns listed in `column` in descending order.

• Array — Sort in a unique direction for each column in `column`. Specify `direction` as a cell array of character vectors or a string array containing the elements `'ascend'` or `'descend'`. The array must be the same length as `column`.

Example: `{'ascend','descend','ascend'}` sorts the elements in the first column in ascending order. If there are any repeating values in the first column, then `sorty` breaks ties using the elements of the second column in descending order, and so on.

`NaN` placement, specified as one of these values:

• `'auto'` — List `NaN` elements last for ascending order and first for descending order.

• `'first'` — List `NaN` elements first.

• `'last'` — List `NaN` elements last.

Example: `sortx(h,column,'MissingPlacement','last')`

## Output Arguments

collapse all

Sorted color data, returned as a matrix. The values in the matrix appear in the same order as they appear on the heatmap.

The `ColorDisplayData` property of the `HeatmapChart` object stores the sorted color data. The `ColorData` property stores the unsorted color data.

Rearranged row order, returned as a cell array of character vectors.

The `YDisplayData` property of the `HeatmapChart` object stores the sorted row order. The `YData` property stores the unsorted row order.

## Algorithms

The `sorty` function sets these `HeatmapChart` object properties:

• `YDisplayData` — Property that stores the y-axis data.

• `ColorDisplayData` — Property that stores the color display data.

The `sorty` function also resets the `YLimits` property.

## Version History

Introduced in R2017b
