# quiver3

3-D quiver or velocity plot ## Syntax

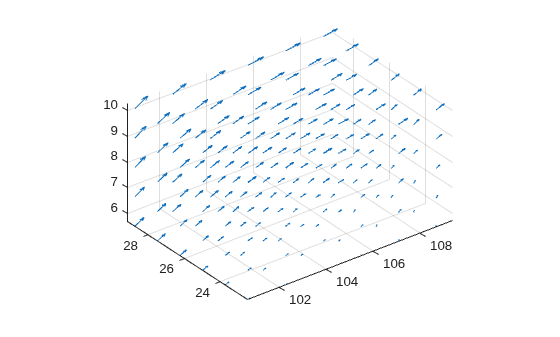

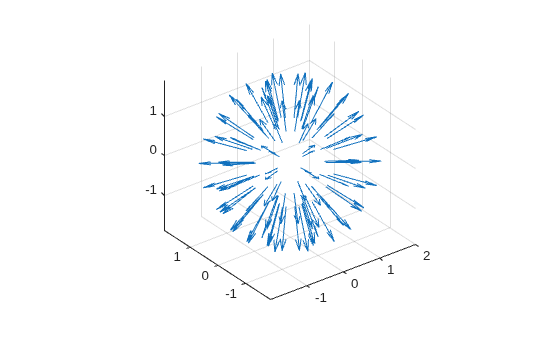

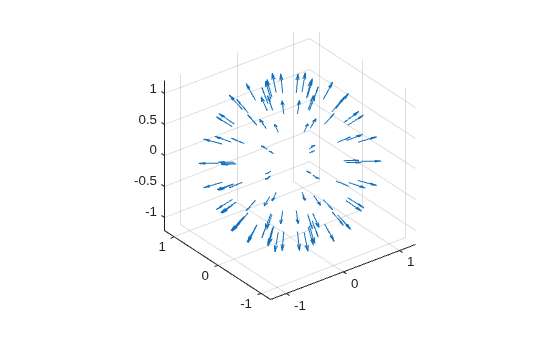

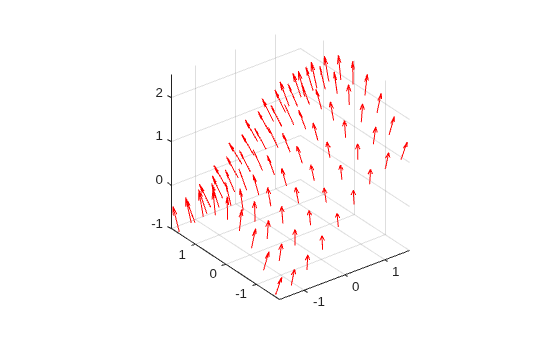

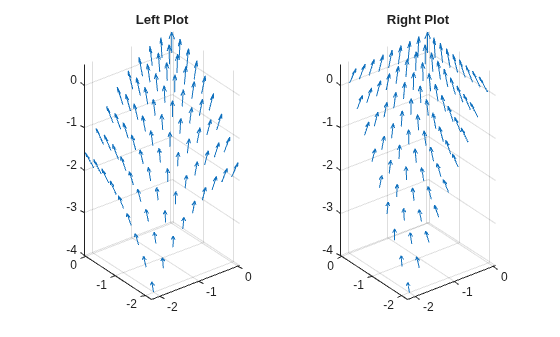

```quiver3(x,y,z,u,v,w) quiver3(z,u,v,w) quiver3(...,scale) quiver3(...,LineSpec) quiver3(...,LineSpec,'filled') quiver3(...,'PropertyName',PropertyValue,...) quiver3(ax,...) h = quiver3(...) ```

## Description

A three-dimensional quiver plot displays vectors with components `(u,v,w)` at the points `(x,y,z)`, where `u`, `v`, `w`, `x`, `y`, and `z` all have real (non-complex) values.

`quiver3(x,y,z,u,v,w)` plots vectors with directions determined by components `(u,v,w)` at points determined by `(x,y,z)`. The matrices `x`,`y`,`z`,`u`,`v`, and `w` must all be the same size and contain the corresponding position and vector components.

`quiver3(z,u,v,w)` plots vectors with directions determined by components `(u,v,w)` at equally spaced points along the surface `z`. For each vector `(u(i,j),v(i,j),w(i,j))`, the column index `j` determines the x-value of the point on the surface, the row index `i` determines the y-value, and `z(i,j)` determines the z-value. That is, `quiver3` locates the vector at the point on the surface `(j,i,z(i,j))`. The `quiver3` function automatically scales the vectors to prevent overlapping based on the distance between them.

`quiver3(...,scale)` automatically scales the vectors to prevent them from overlapping, and then multiplies them by `scale`. `scale` `=` `2` doubles their relative length, and `scale` `=` `0.5` halves them. Use `scale = 0` to plot the vectors without the automatic scaling.

`quiver3(...,LineSpec)` specifies line style, marker symbol, and color using any valid `LineSpec`. `quiver3` draws the markers at the origin of the vectors.

`quiver3(...,LineSpec,'filled')` fills markers specified by `LineSpec`.

`quiver3(...,'PropertyName',PropertyValue,...)` specifies property name and property value pairs for the quiver chart that the function creates.

`quiver3(ax,...)` plots into the axes `ax` instead of into the current axes (`gca`).

`h = quiver3(...)` returns the `Quiver` object.

## Examples

collapse all

Define the data.

```x = -3:0.5:3; y = -3:0.5:3; [X,Y] = meshgrid(x, y); Z = Y.^2 - X.^2; [U,V,W] = surfnorm(Z);```

Plot vectors with components `(U,V,W)` at points that are equally spaced in the x-direction and y-direction with heights determined by `Z`.

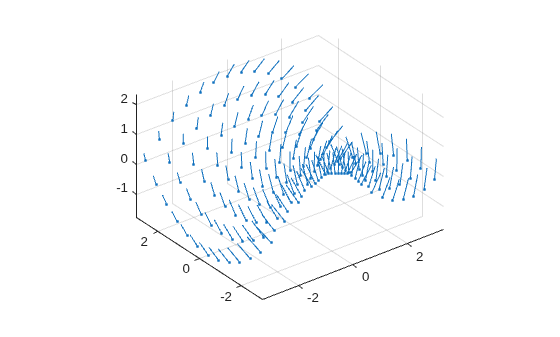

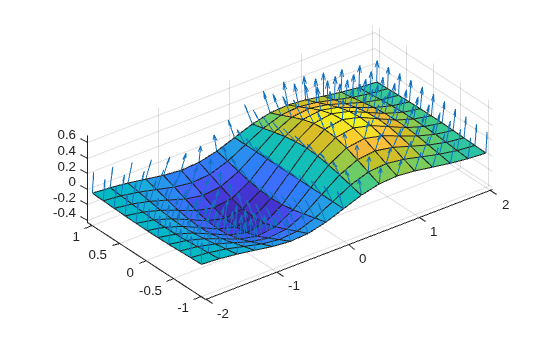

```figure quiver3(Z,U,V,W) view(-35,45)``` Plot the surface normals of the function $z=x{e}^{-{x}^{2}-{y}^{2}}$.

```[X,Y] = meshgrid(-2:0.25:2,-1:0.2:1); Z = X.* exp(-X.^2 - Y.^2); [U,V,W] = surfnorm(X,Y,Z); figure quiver3(X,Y,Z,U,V,W,0.5) hold on surf(X,Y,Z) view(-35,45) axis([-2 2 -1 1 -.6 .6]) hold off```
