addMember

R2026b

Add button to selection group

Since R2026b

Syntax

addMember(sg,b)

Description

addMember(sg,b) adds a radio button or toggle button to the specified selection group.

Examples

Add Button to Selection Group

Create a selection group that manages three toggle buttons.

fig = uifigure(Position=[100 100 200 200]);
gl = uigridlayout(fig,[3,1]);
tb1 = uitogglebutton(gl,Text="English");
tb2 = uitogglebutton(gl,Text="French");
tb3 = uitogglebutton(gl,Text="German");
sg = uiselectiongroup([tb1 tb2 tb3]);

Add a fourth button to the group.

tb4 = uitogglebutton(gl,Text="Japanese");
addMember(sg,tb4)

Add and Remove Buttons from Selection Group

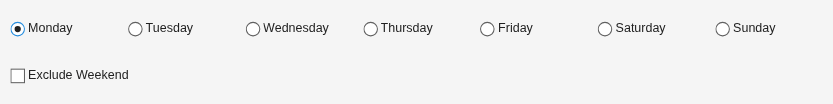

Create a grid layout in a figure with seven radio buttons managed by a selection group and a check box.

fig = uifigure(Position=[100 100 800 100]);
gl = uigridlayout(fig,[2 7]);
rb1 = uiradiobutton(gl,Text="Monday");
rb2 = uiradiobutton(gl,Text="Tuesday");
rb3 = uiradiobutton(gl,Text="Wednesday");
rb4 = uiradiobutton(gl,Text="Thursday");
rb5 = uiradiobutton(gl,Text="Friday");
rb6 = uiradiobutton(gl,Text="Saturday");
rb7 = uiradiobutton(gl,Text="Sunday");
sg = uiselectiongroup([rb1 rb2 rb3 rb4 rb5 rb6 rb7]);
cb = uicheckbox(gl,Text="Exclude Weekend");
cb.Layout.Column = [1 2];

Write a callback function named toggleWeekend that controls whether the Saturday and Sunday buttons are enabled and part of the selection group. This callback executes when a user interacts with the check box. Save the function in a folder that is on the MATLAB path.

function toggleWeekend(src,event,sg,rb6,rb7)
    if src.Value == 1
        sg.removeMember([rb6 rb7])
        rb6.Enable = "off";
        rb7.Enable = "off";
    elseif src.Value == 0
        sg.addMember([rb6 rb7])
        rb6.Enable = "on";
        rb7.Enable = "on";
    end
end

cb.ValueChangedFcn = @(src,event) toggleWeekend(src,event,sg,rb6,rb7);

Input Arguments

sg — Selection group

SingleSelectionGroup object

Selection group, specified as a SingleSelectionGroup object created using the uiselectiongroup function.

b — Button to add

array of RadioButton objects | array of ToggleButton objects

Button to add, specified as an array of RadioButton objects or an array of ToggleButton objects. The specified buttons must be the same type and in the same figure. The button type must match any existing buttons in the selection group sg.

Version History

Introduced in R2026b
