magic

Description

example

M = magic(n) returns an n-by-n matrix constructed from the integers 1 through n2 with equal row and column sums. The order n must be a scalar greater than or equal to 3.

Examples

collapse all

Compute the third-order magic square M.

M = magic(3)
M = 3×3

     8     1     6
     3     5     7
     4     9     2

The sum of the elements in each column and the sum of the elements in each row are the same.

sum(M)
ans = 1×3

    15    15    15

sum(M,2)
ans = 3×1

    15
    15
    15

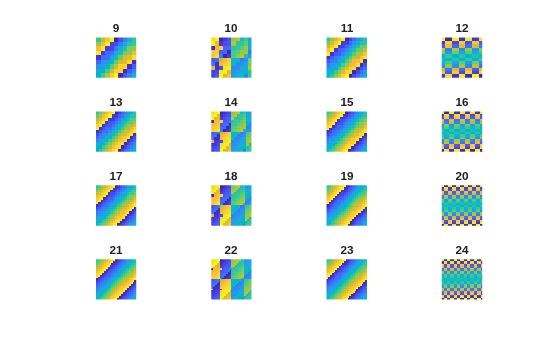

Visually examine the patterns in magic square matrices with orders between 9 and 24 using imagesc. The patterns show that magic uses three different algorithms, depending on whether the value of mod(n,4) is 0, 2, or odd.

for n = 1:16
    subplot(4,4,n)
    ord = n+8;
    m = magic(ord);
    imagesc(m)
    title(num2str(ord))
    axis equal
    axis off
end

Input Arguments

collapse all

Matrix order, specified as a scalar integer greater than or equal to 3. If n is complex, not an integer, or not scalar, then magic converts it into a usable integer with floor(real(double(n(1)))).

If you supply n less than 3, then magic returns either a nonmagic square, or the degenerate magic squares 1 and [].

Data Types: single | double | int8 | int16 | int32 | int64 | uint8 | uint16 | uint32 | uint64 | logical | char

Extended Capabilities

See Also

|

Introduced before R2006a
