filter2

2-D digital filter

Syntax

Y = filter2(H,X)
Y = filter2(H,X,shape)

Description

example

Y = filter2(H,X) applies a finite impulse response filter to a matrix of data X according to coefficients in a matrix H.

example

Y = filter2(H,X,shape) returns a subsection of the filtered data according to shape. For example, Y = filter2(H,X,'valid') returns only filtered data computed without zero-padded edges.

Examples

collapse all

You can digitally filter images and other 2-D data using the filter2 function, which is closely related to the conv2 function.

Create and plot a 2-D pedestal with interior height equal to one.

A = zeros(10);
A(3:7,3:7) = ones(5);
mesh(A)

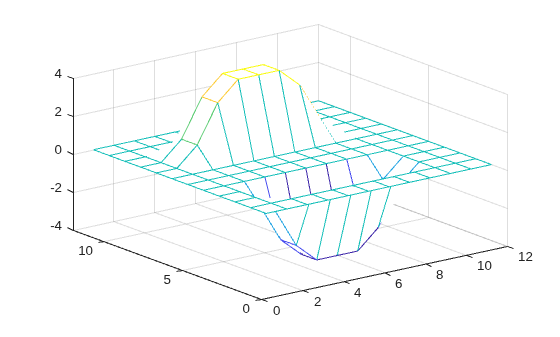

Filter the data in A according to a filter coefficient matrix H, and return the full matrix of filtered data.

H = [1 2 1; 0 0 0; -1 -2 -1];
Y = filter2(H,A,'full');
mesh(Y)

Rotate H 180 degrees and convolve the result with A. The output is equivalent to filtering the data in A with the coefficients in H.

C = conv2(A,rot90(H,2));
mesh(C)

Input Arguments

collapse all

Coefficients of the rational transfer function, specified as a matrix.

Data Types: double | single | int8 | int16 | int32 | int64 | uint8 | uint16 | uint32 | uint64 | logical
Complex Number Support: Yes

Input data, specified as a matrix. If one or both of X and H are of type single, then the output is also of type single. Otherwise, filter2 returns type double.

Data Types: double | single | int8 | int16 | int32 | int64 | uint8 | uint16 | uint32 | uint64 | logical
Complex Number Support: Yes

Subsection of the filtered data, specified as one of these values:

  • 'same' — Return the central part of the filtered data, which is the same size as X.

  • 'full' — Return the full 2-D filtered data.

  • 'valid' — Return only parts of the filtered data that are computed without zero-padded edges.

Algorithms

The filter2 function filters data by taking the 2-D convolution of the input X and the coefficient matrix H rotated 180 degrees. Specifically, filter2(H,X,shape) is equivalent to conv2(X,rot90(H,2),shape).

Extended Capabilities

C/C++ Code Generation
Generate C and C++ code using MATLAB® Coder™.

See Also

| |

Introduced before R2006a
