imblend

Blend two images

Since R2024b

Syntax

I = imblend(fg,bg)

I = imblend(fg,bg,mask)

I = imblend(___,Name=Value)

Description

I = imblend(fg,bg) blends the foreground image fg with the background image bg using alpha blending.

I = imblend(fg,bg,mask) blends only the region of the foreground image specified by mask on the background image.

I = imblend(___,Name=Value) fine-tunes the image blending using one or more optional name-value arguments, in addition to any combination of input arguments from previous syntaxes. For example, Mode="Guided" specifies to use the guided mode for image blending.

Examples

Blend Images Using Alpha Blending

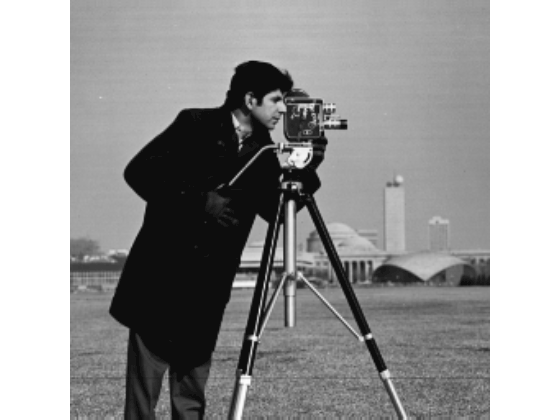

Load an image into the workspace as the background image.

bg = imread("cameraman.tif");
figure
imshow(bg)

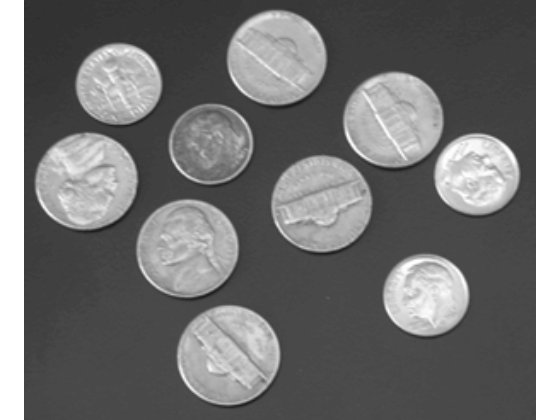

Create a foreground image of a digital object to blend, as augmented reality, with the cameraman scene.

fg = imread("coins.png");
figure
imshow(fg)

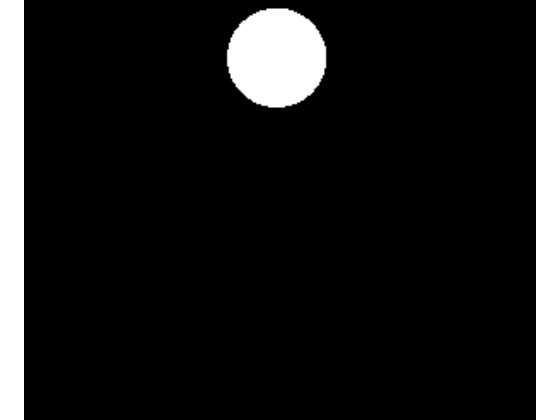

To blend only one coin in the image, create a mask by segmenting one coin in the foreground image.

[centers,radii] = imfindcircles(fg,[15 30]);
centers = centers(1,:);
radii = radii(1,:);
mask = circles2mask(centers,radii,size(fg));
figure
imshow(mask)

Blend the foreground image with the background image using alpha blending. Visualize the blended image.

I = imblend(fg,bg,mask,Location=[-10 40]);
figure
imshow(I)

Compare Different Blend Modes

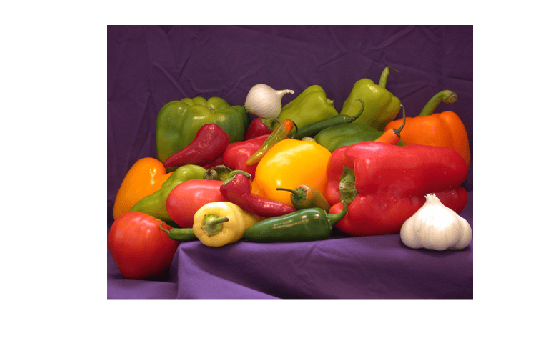

Load an image into the workspace as the background image.

bg = imread("peppers.png");
figure
imshow(bg)

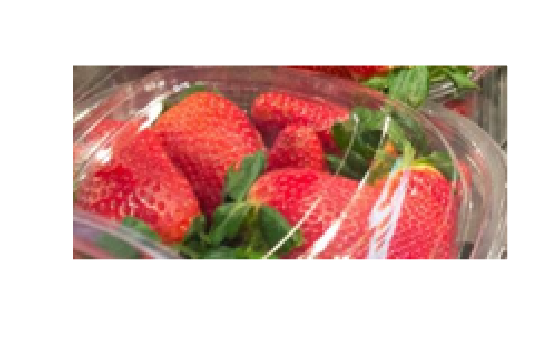

Load a foreground image of an object to blend with the background image.

fg = imread("strawberries.jpg");
fg = fg(510:end,1:390,:);
fg = imresize(fg,0.5);
figure
imshow(fg)

Create a mask for blending the entire foreground image with a section of the background image.

mask = true(size(fg,1),size(fg,2));

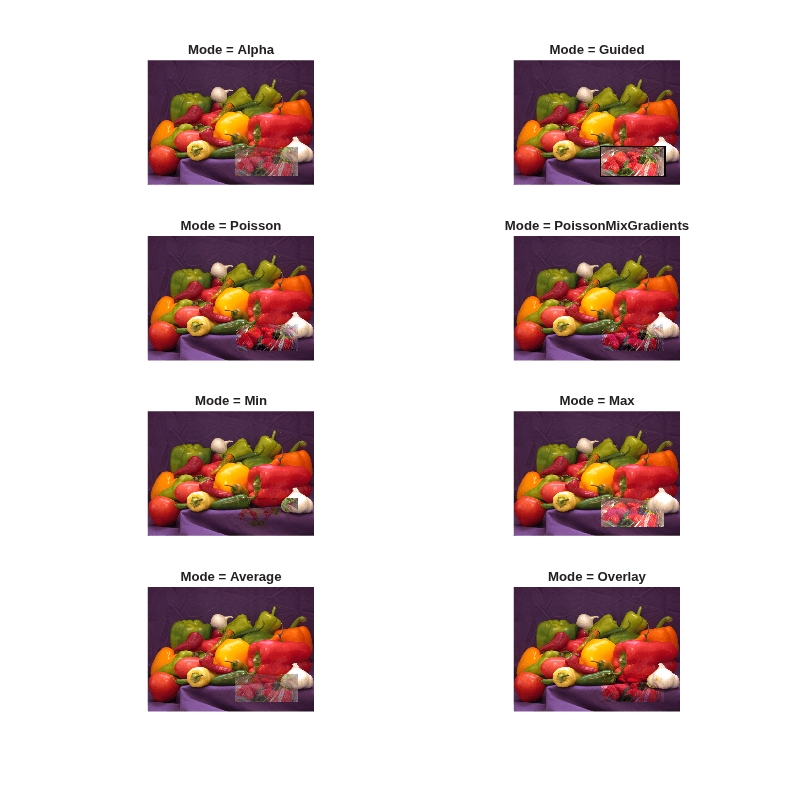

Blend the foreground image with the background image at the location specified by the mask using different blend modes. Visualize and compare the blended images from the different blend modes.

• Mode Alpha creates a partial transparency effect.

• Mode Guided changes the transition region between the foreground and background images.

• Mode Poisson blends the foreground image seamlessly with the background image, but obscures some details of the background image.

• Mode PoissonMixGradients blends the foreground image seamlessly with the background image without obscuring details of the background image.

• Mode Min retains the darkest areas in the foreground and background images.

• Mode Max retains the brightest areas in the foreground and background images.

• Mode Average averages the foreground and background images.

• Mode Overlay retains the highlights and shadows of the background image while integrating the textures of the foreground image.

I1 = imblend(fg,bg,Mode="Alpha",Location=[270 270],ForegroundOpacity=0.6);
I2 = imblend(fg,bg,mask,Mode="Guided",Location=[270 270],FilterSize=[5 5]);
I3 = imblend(fg,bg,mask,Mode="Poisson",Location=[270 270]);
I4 = imblend(fg,bg,mask,Mode="PoissonMixGradients",Location=[270 270]);
I5 = imblend(fg,bg,Mode="Min",Location=[270 270]);
I6 = imblend(fg,bg,Mode="Max",Location=[270 270]);
I7 = imblend(fg,bg,Mode="Average",Location=[270 270]);
I8 = imblend(fg,bg,Mode="Overlay",Location=[270 270]);
figure(Position=[0 0 1000 1000])
tiledlayout(4,2)
nexttile
imshow(I1)
title("Mode = Alpha")
nexttile
imshow(I2)
title("Mode = Guided")
nexttile
imshow(I3)
title("Mode = Poisson")
nexttile
imshow(I4)
title("Mode = PoissonMixGradients")
nexttile
imshow(I5)
title("Mode = Min")
nexttile
imshow(I6)
title("Mode = Max")
nexttile
imshow(I7)
title("Mode = Average")
nexttile
imshow(I8)
title("Mode = Overlay")

Input Arguments

fg — Foreground image

2-D grayscale image | 2-D RGB image

Foreground image, specified as a 2-D grayscale image or 2-D RGB image. The size of the foreground image can be different from the size of the background image. The function uses the first minRows rows and the first minCols columns of the foreground image for blending, where minRows is the minimum of the number of rows between the foreground and background images, and minCols is the minimum of the number of columns between the foreground and background images.

Data Types: single | double | int16 | uint8 | uint16

bg — Background image

2-D grayscale image | 2-D RGB image

Background image, specified as a 2-D grayscale image or 2-D RGB image.

Data Types: single | double | int16 | uint8 | uint16

mask — Mask of foreground pixels to blend

true or 1 (default) | false or 0 | logical matrix

Mask of foreground pixels to blend, specified as a numeric or logical 1 (true) or 0 (false), or a numeric or logical matrix of the same size as the foreground image. For numeric input, any nonzero pixels are considered to be 1 (true). If mask is a scalar with a value of true, all pixels of the foreground image are included in the mask.

Data Types: single | double | int8 | int16 | int32 | int64 | uint8 | uint16 | uint32 | uint64 | logical

Name-Value Arguments

Specify optional pairs of arguments as Name1=Value1,...,NameN=ValueN, where Name is the argument name and Value is the corresponding value. Name-value arguments must appear after other arguments, but the order of the pairs does not matter.

Example: imblend(F,B,Location=[10 12]) specifies that the blending of the foreground image must start from the 10th row and 12th column of the background image.

Mode — Blend mode

"Alpha" (default) | "Guided" | "Poisson" | "PoissonMixGradients" | "Min" | "Max" | "Average" | "Overlay"

Blend mode, specified as "Alpha", "Guided", "Poisson", "PoissonMixGradients", "Min", "Max", "Average", or "Overlay". When the blend mode is "Poisson" or "PoissonMixGradients", you must specify the mask argument.

Blend Mode	Algorithm	Output	Applications
"Alpha"	Linearly combines foreground and background images. Uses foreground opacity to determine weights of linear combination. Creates partial transparency effect.		You can use this mode in applications such as augmented reality, computer-generated graphics, and multimodal medical image visualization.
"Guided"	Linearly combines foreground and background images. Smooths edges of the mask using the foreground image as guidance. Uses smooth mask to determine weights of linear combination. Retains foreground image in mask region and background image in non-mask region with a smooth transition at the mask edges.		You can use this mode in applications such as augmented reality and computer-generated graphics.
"Poisson"	Minimizes intensity and color differences between foreground and background images. Preserves gradients in the foreground image to retain structure. Creates seamless blending effect.		You can use this mode in applications such as photo editing, panorama stitching of multiple photos, or augmented reality applications such as virtually trying on clothes.

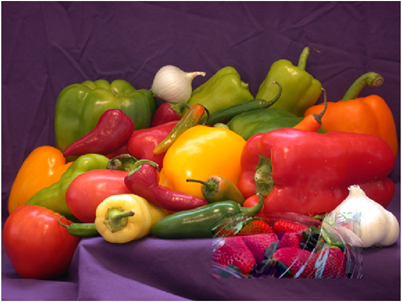

"PoissonMixGradients"	Minimizes intensity and color differences between foreground and background images. Preserves the stronger gradient between the foreground and background images to prevent flat regions in the foreground image from obscuring details in the background image. Creates seamless blending effect.		You can use this mode in applications such as photo editing, panorama stitching of multiple photos, or augmented reality applications such as virtually trying on clothes.
"Min"	Uses minimum intensity projection. Blended image retains the minimum of the intensities of the foreground and background images. Retains the darkest areas in the foreground and background images.		You can use this mode in applications such as astrophotography, for noise reduction, or in security applications to enhance details in dark regions.
"Max"	Uses maximum intensity projection. Blended image retains the maximum of the intensities of the foreground and background images. Retains the brightest areas in the foreground and background images.		You can use this mode in applications such as medical imaging to emphasize certain features, or in surveillance to detect motion or changes in a series of images.
"Average"	Blended image retains the average of the intensities of the foreground and background images.		You can use this mode in applications such as noise reduction in photography, where averaging multiple shots of the same scene can reduce random noise.
"Overlay"	Combines two images by either multiplying or screening pixels, depending on their brightness. Retains the highlights and shadows of the background image while integrating the textures of the foreground image.		You can use this mode in applications such as digital art and photo editing to add textures, adjust lighting, or create special effects by blending textures or patterns with original photographs.

Data Types: char | string

Location — Starting location of blending in background image

[1 1] (default) | 1-by-2 numeric vector

Starting location of blending in the background image, specified as a 1-by-2 numeric vector. The first and second elements specify the x-coordinate (column index) and y-coordinate (row index), respectively, of the location in the background image from where the top-left corner of the foreground image is blended. The row and column indices of the starting location can be zero, negative, or even fractional. The function determines the mapping between the pixels of the background and foreground images for blending by using image translation and interpolation.

Data Types: single | double

ForegroundOpacity — Opacity of foreground in alpha blending

0.7 (default) | positive scalar in the range (0,1]

Opacity of the foreground in alpha blending, specified as a positive scalar less than or equal to 1. Decreasing the foreground opacity increases the partial transparency effect in the blended image.

Note

Specify ForegroundOpacity only when Mode is "Alpha".

Data Types: single | double

FilterSize — Size of filter in guided blending

[3 3] (default) | 2-element vector of positive integers

Size of the filter in guided blending, specified as a 2-element vector of positive integers. Increasing the filter size increases the smoothing of the edges of the mask.

Note

Specify FilterSize only when Mode is "Guided".

Data Types: single | double | int8 | int16 | int32 | int64 | uint8 | uint16 | uint32 | uint64

Output Arguments

I — Blended image

2-D grayscale image | 2-D RGB image

Blended image, returned as a 2-D grayscale or RGB image with the same size and data type as the background image.

References

[1] Di Martino, J. Matías, Gabriele Facciolo, and Enric Meinhardt-Llopis. “Poisson Image Editing.” Image Processing On Line 6 (November 18, 2016): 300–325. https://doi.org/10.5201/ipol.2016.163.

Extended Capabilities

C/C++ Code Generation

Generate C and C++ code using MATLAB® Coder™.

Usage notes and limitations:

• imblend supports the generation of C and C++ code (requires MATLAB^® Coder™). For more information, see Code Generation for Image Processing.

• Name-value arguments must be compile-time constants.

Version History

Introduced in R2024b

R2025a: Blend images using Poisson blend modes

Blend images seamlessly using the Poisson blend modes. "Poisson" preserves the gradient of the foreground image, while "PoissonMixGradients" mixes the gradients of foreground and background images.

R2025a: Generate C code using MATLAB Coder

imblend now supports the generation of C code (requires MATLAB Coder).
