recursiveLS

Online parameter estimation of least-squares model

Description

Use the recursiveLS System object™ for parameter estimation with real-time data using a recursive least-squares algorithm. If all the data you need for estimation is available at once and you are estimating a time-invariant model, use the offline function mldivide.

To perform parameter estimation with real-time data:

1. Create the recursiveLS object and set its properties.

2. Call the object with arguments, as if it were a function.

To learn more about how System objects work, see What Are System Objects?

Creation

Syntax

lsobj = recursiveLS

lsobj = recursivelS(np)

lsobj = recursivelS(np,theta0)

lsobj = recursiveLS(___,Name=Value)

Description

lsobj = recursiveLS creates a System object for online parameter estimation of a default single-output, least-squares model. Such a system can be represented as:

y(t) = H(t)θ(t)+e(t).

Here, y is the output, θ are the parameters, H are the regressors, and e is the white-noise disturbance. The default system has one parameter with initial parameter value 1.

lsobj = recursivelS(np) specifies the number of model parameters to be specified by setting the NumberOfParameters property to np.

lsobj = recursivelS(np,theta0) specifies the initial parameter values by setting the InitialParameters property to theta0.

lsobj = recursiveLS(___,Name=Value) specifies one or more properties of the model structure or recursive estimation algorithm using name-value arguments. For example, lsobj = recursiveLS(2,EstimationMethod="NormalizedGradient") creates an estimation object that uses a normalized gradient estimation method.

Before R2021a, use commas to separate each name and value, and enclose Name in quotes. For example, lsobj = recursiveLS(2,"EstimationMethod","NormalizedGradient") creates an estimation object that uses a normalized gradient estimation method.

Properties

Unless otherwise indicated, properties are nontunable, which means you cannot change their values after calling the object. Objects lock when you call them, and the release function unlocks them.

If a property is tunable, you can change its value at any time.

For more information on changing property values, see System Design in MATLAB Using System Objects.

NumberOfParameters — Number of parameters

1 (default) | positive integer

This property is read-only.

Number of parameters to be estimated, N_p, specified as a positive integer.

Parameters — Estimated parameters

[] (default) | positive integer

This property is read-only.

Estimated parameters, stored as a column vector of length N_p, where N_p is equal to NumberOfParameters.

Parameters is initially empty when you create the object and is populated after you run the online parameter estimation.

InitialParameters — Initial parameter values

1 (default) | vector of length N_p

Initial parameter values, specified as one of the following:

• Scalar — All the parameters have the same initial value.

• Vector of length N_p — The ith parameter has initial value InitialParameters(i).

When using infinite-history estimation, if the initial parameter values are much smaller than InitialParameterCovariance, these initial values are given less importance during estimation. If you have high confidence in the initial parameter values, specify a smaller initial parameter covariance.

Tunable: Yes

InitialOutputs — Initial values of the output buffer

0 (default) | W-by-1 vector

Initial values of the output buffer in finite-history estimation, specified as 0 or as a W-by-1 vector, where W is the window length.

Use InitialOutputs to control the initial behavior of the algorithm.

When InitialOutputs is 0, the object populates the buffer with zeros.

If the initial buffer is set to 0 or does not contain enough information, the software generates a warning message during the initial phase of your estimation. The warning should clear after a few cycles. The number of cycles it takes for sufficient information to be buffered depends upon the order of your polynomials and your input delays. If the warning persists, evaluate the content of your signals.

Tunable: Yes

Dependencies

To enable this property, set History to 'Finite'.

InitialRegressors — Initial values of the regressor buffer

0 (default) | W-by-Np array

Initial values of the regressor buffer in finite-history estimation, specified as 0 or as a W-by-Np array, where W is the window length and Np is the number of parameters.

The InitialRegressors property provides a means of controlling the initial behavior of the algorithm.

When the InitialRegressors is set to 0, the object populates the buffer with zeros.

If the initial buffer is set to 0 or does not contain enough information, you see a warning message during the initial phase of your estimation. The warning should clear after a few cycles. The number of cycles it takes for sufficient information to be buffered depends upon the order of your polynomials and your input delays. If the warning persists, evaluate the content of your signals.

Tunable: Yes

Dependencies

To enable this property, set History to 'Finite'.

ParameterCovariance — Estimated covariance

[] (default) | N_p-by-N_p symmetric positive-definite matrix

This property is read-only.

Estimated covariance P of the parameters, stored as an N_p-by-N_p symmetric positive-definite matrix, where N_p is the number of parameters to be estimated. The software computes P assuming that the residuals (difference between estimated and measured outputs) are white noise and the variance of these residuals is 1.

The interpretation of P depends on your settings for the History and EstimationMethod properties.

• If you set History to 'Infinite' and EstimationMethod to:

  • 'ForgettingFactor' — R₂ * P is approximately equal to twice the covariance matrix of the estimated parameters, where R₂ is the true variance of the residuals.

  • 'KalmanFilter' — R₂ * P is the covariance matrix of the estimated parameters, and R₁ /R₂ is the covariance matrix of the parameter changes. Here, R₁ is the covariance matrix that you specify in ProcessNoiseCovariance.

• If History is 'Finite' (sliding-window estimation) — R₂P is the covariance of the estimated parameters. The sliding-window algorithm does not use this covariance in the parameter-estimation process. However, the algorithm does compute the covariance for output so that you can use it for statistical evaluation.

ParameterCovariance is initially empty when you create the object and is populated after you run the online parameter estimation.

Dependencies

To enable this property, use one of the following configurations:

• Set History to 'Finite'.

• Set History to 'Infinite' and set EstimationMethod to either 'ForgettingFactor' or 'KalmanFilter'.

InitialParameterCovariance — Covariance of initial parameter estimates

10000 (default) | positive scalar | vector of positive scalars | symmetric positive-definite matrix

Covariance of the initial parameter estimates, specified as one of these values:

• Real positive scalar α — Covariance matrix is an N-by-N diagonal matrix in which α is each diagonal element. N is the number of parameters to be estimated.

• Vector of real positive scalars [α₁,...,α_N] — Covariance matrix is an N-by-N diagonal matrix in which α₁ through α_N] are the diagonal elements.

• N-by-N symmetric positive-definite matrix.

InitialParameterCovariance represents the uncertainty in the initial parameter estimates. For large values of InitialParameterCovariance, the software accords less importance to the initial parameter values and more importance to the measured data during the beginning of estimation.

Tunable: Yes

Dependency

To enable this property, set History to 'Infinite' and set EstimationMethod to either 'ForgettingFactor' or 'KalmanFilter'.

EstimationMethod — Recursive estimation algorithm

'ForgettingFactor' (default) | 'KalmanFilter' | 'NormalizedGradient' | 'Gradient'

Recursive estimation algorithm used for online estimation of model parameters, specified as one of the following:

• 'ForgettingFactor' — Use forgetting factor algorithm for parameter estimation.

• 'KalmanFilter' — Use Kalman filter algorithm for parameter estimation.

• 'NormalizedGradient' — Use normalized gradient algorithm for parameter estimation.

• 'Gradient' — Use unnormalized gradient algorithm for parameter estimation.

Forgetting factor and Kalman filter algorithms are more computationally intensive than gradient and unnormalized gradient methods. However, the former algorithms have better convergence properties. For information about these algorithms, see Recursive Algorithms for Online Parameter Estimation.

Dependencies

To enable this property, set History to 'Infinite'.

ForgettingFactor — Forgetting factor for parameter estimation

1 (default) | scalar in the range (0, 1]

Forgetting factor λ for parameter estimation, specified as a scalar in the range (0, 1].

Suppose that the system remains approximately constant over T₀ samples. You can choose λ to satisfy this condition:

$$T_0=\frac{1}{1-\lambda }$$

• Setting λ to 1 corresponds to "no forgetting" and estimating constant coefficients.

• Setting λ to a value less than 1 implies that past measurements are less significant for parameter estimation and can be "forgotten". Set λ to a value less than 1 to estimate time-varying coefficients.

Typical choices of λ are in the range [0.98, 0.995].

Tunable: Yes

Dependencies

To enable this property, set History to 'Infinite' and set EstimationMethod to 'ForgettingFactor'.

EnableAdapation — Option to enable or disable parameter estimation

true (default) | false

Option to enable or disable parameter estimation, specified as one of the following:

• true — The step function estimates the parameter values for that time step and updates the parameter values.

• false — The step function does not update the parameters for that time step and instead outputs the last estimated value. You can use this option when your system enters a mode where the parameter values do not vary with time.

  Note

  If you set EnableAdapation to false, you must still execute the step command. Do not skip step to keep parameter values constant, because parameter estimation depends on current and past I/O measurements. step ensures past I/O data is stored, even when it does not update the parameters.

Tunable: Yes

DataType — Floating point precision of parameters

'double' (default) | 'single'

This property is read-only.

Floating point precision of parameters, specified as one of the following values:

• 'double' — Double-precision floating point

• 'single' — Single-precision floating point

Setting DataType to 'single' saves memory but leads to loss of precision. Specify DataType based on the precision required by the target processor where you will deploy generated code.

You must set DataType during object creation using a name-value argument.

ProcessNoiseCovariance — Covariance matrix of parameter variations

0.1 (default) | nonegative scalar | vector of nonegative values | N-by-N symmetric positive semidefinite matrix

Covariance matrix of parameter variations, specified as one of the following:

• Real nonnegative scalar, α — Covariance matrix is an N-by-N diagonal matrix, with α as the diagonal elements.

• Vector of real nonnegative scalars, [α₁,...,α_N] — Covariance matrix is an N-by-N diagonal matrix, with [α₁,...,α_N] as the diagonal elements.

• N-by-N symmetric positive semidefinite matrix.

N is the number of parameters to be estimated.

The Kalman filter algorithm treats the parameters as states of a dynamic system and estimates these parameters using a Kalman filter. ProcessNoiseCovariance is the covariance of the process noise acting on these parameters. Zero values in the noise covariance matrix correspond to estimating constant coefficients. Values larger than 0 correspond to time-varying parameters. Use large values for rapidly changing parameters. However, the larger values result in noisier parameter estimates.

Tunable: Yes

Dependencies

To enable this property, set History to 'Infinite' and set EstimationMethod to 'KalmanFilter'.

AdaptationGain — Adaptation gain

1 (default) | positive scalar

Adaptation gain, γ, used in gradient recursive estimation algorithms, specified as a positive scalar.

Specify a large value for AdaptationGain when your measurements have a high signal-to-noise ratio.

Tunable: Yes

Dependencies

To enable this property, set History to 'Infinite' and set EstimationMethod to either 'Gradient' or 'NormalizedGradient'.

NormalizationBias — Bias in adaptation gain scaling

eps (default) | nonegative scalar

Bias in adaptation gain scaling used in the 'NormalizedGradient' method, specified as a nonnegative scalar.

The normalized gradient algorithm divides the adaptation gain at each step by the square of the two-norm of the gradient vector. If the gradient is close to zero, this division can cause jumps in the estimated parameters. NormalizationBias is the term introduced in the denominator to prevent such jumps. If you observe jumps in estimated parameters, increase NormalizationBias.

Tunable: Yes

Dependencies

To enable this property, set History to 'Infinite' and set EstimationMethod to 'NormalizedGradient'.

History — Data history type

'Infinite' (default) | 'Finite'

This property is read-only.

Data history type, which defines the type of recursive algorithm to use, specified as one of the following:

• 'Infinite' — Use an algorithm that aims to minimize the error between the observed and predicted outputs for all time steps from the beginning of the simulation.

• 'Finite' — Use an algorithm that aims to minimize the error between the observed and predicted outputs for a finite number of past time steps.

Algorithms with infinite history aim to produce parameter estimates that explain all data since the start of the simulation. These algorithms still use a fixed amount of memory that does not grow over time. To select an infinite-history algorithm, use EstimationMethod.

Algorithms with finite history aim to produce parameter estimates that explain only a finite number of past data samples. This method is also called sliding-window estimation. The object provides one finite-history algorithm. To define the window size, specify the WindowLength property.

For more information on recursive estimation methods, see Recursive Algorithms for Online Parameter Estimation.

You must set History during object creation using a name-value argument.

WindowLength — Window size

200 (default) | positive integer

This property is read-only.

Window size for finite-history estimation, specified as a positive integer indicating the number of samples.

Choose a window size that balances estimation performance with computational and memory burden. Sizing factors include the number and time variance of the parameters in your model. WindowLength must be greater than or equal to the number of estimated parameters.

Suitable window length is independent of whether you are using sample-based or frame-based input processing (see InputProcessing). However, when using frame-based processing, your window length must be greater than or equal to the number of samples (time steps) contained in the frame.

You must set WindowLength during object creation using a name-value argument.

Dependencies

To enable this property, set History to 'Finite'.

InputProcessing — Input processing method

'Sample-based' (default) | 'Frame-based'

This property is read-only.

Input processing method, specified as one of the following:

• 'Sample-based' — Process streamed signals one sample at a time.

• 'Frame-based' — Process streamed signals in frames that contain samples from multiple time steps. Many machine sensor interfaces package multiple samples and transmit these samples together in frames. 'Frame-based' processing allows you to input this data directly without having to first unpack it.

The InputProcessing property impacts the dimensions for the input and output signals when using the recursive estimator object.

• 'Sample-based'

  • y and estimatedOutput are scalars.

  • H is a 1-by-N_p vector, where N_p is the number of parameters.

• • 'Frame-based' with M samples per frame

    • y and estimatedOutput are M-by-1 vectors.

    • H is an M-by-N_p matrix.

You must set InputProcessing during object creation using a name-value argument.

Usage

Syntax

[theta,estimatedOutput] = lsobj(y,H)

Description

[theta,estimatedOutput] = lsobj(y,H) updates and returns the parameters and output of recursiveLS model lsobj based on real-time output data y and regressors H.

Input Arguments

y — Output data

real scalar | 1-by-M vector

Output data acquired in real time, specified as one of the following:

• When using sample-based input processing, specify a real scalar value.

• When using frame-based input processing, specify an M-by-1 vectors, where M is the number of samples per frame.

H — Regressors

1-by-N_p vector | M-by-N_p array

Regressors, specified as one of the following:

• When using sample-based input processing, specify a 1-by-N_p vector, where N_p is the number of model parameters.

• When using frame-based input processing, specify an M-by-N_p array, where M is the number of samples per frame.

Output Arguments

estimatedOutput — Estimated output

real scalar | 1-by-M vector

Estimated output, returned as one of the following:

• When using sample-based input processing, returned as a real scalar value.

• When using frame-based input processing, returned as an M-by-1 vectors, where M is the number of samples per frame.

The output is estimated using output estimation data, regressors, current parameter values, and the recursive estimation algorithm specified in the recursiveLS System object.

Object Functions

To use an object function, specify the System object as the first input argument. For example, to release system resources of a System object named obj, use this syntax:

release(obj)

Common to All System Objects

step	Run System object algorithm
release	Release resources and allow changes to System object property values and input characteristics
reset	Reset internal states of System object

Specific to recursiveLS

clone	Create duplicate System object
isLocked	Determine if System object is in use

Examples

Create System Object for Online Estimation Using Recursive Least Squares Algorithm

obj = recursiveLS

obj =
  recursiveLS with properties:

            NumberOfParameters: 1
                    Parameters: []
             InitialParameters: 1
           ParameterCovariance: []
    InitialParameterCovariance: 10000
              EstimationMethod: 'ForgettingFactor'
              ForgettingFactor: 1
              EnableAdaptation: true
                       History: 'Infinite'
               InputProcessing: 'Sample-based'
                      DataType: 'double'

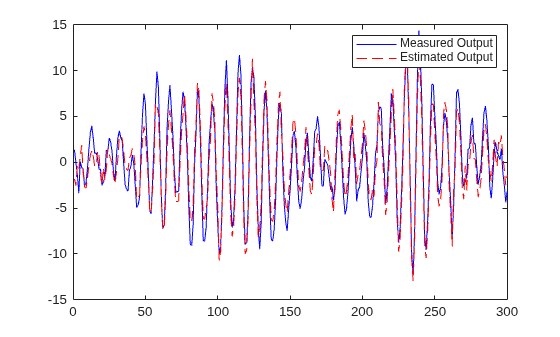

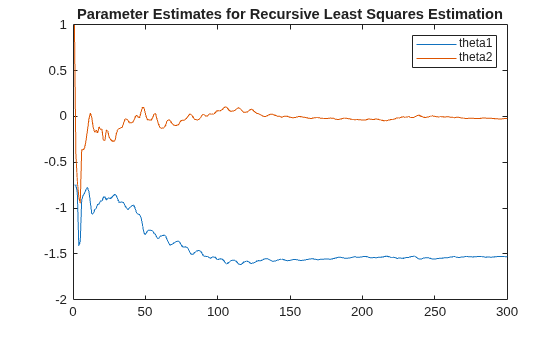

Estimate Parameters of System Using Recursive Least Squares Algorithm

The system has two parameters and is represented as:

$$\mathit{y}\left(\mathit{t}\right)={\mathit{a}}_1\mathit{u}\left(\mathit{t}\right)+{\mathit{a}}_2\mathit{u}\left(\mathit{t}-1\right)$$.

Here,

• $\mathit{u}$ and $$y$$ are the real-time input and output data, respectively.

• $\mathit{u}\left(\mathit{t}\right)$ and $\mathit{u}\left(\mathit{t}-1\right)$ are the regressors, H, of the system.

• ${\mathit{a}}_1$ and ${\mathit{a}}_2$ are the parameters, theta, of the system.

Create a System object for online estimation using the recursive least squares algorithm.

obj = recursiveLS(2);

Load the estimation data, which for this example is a static data set.

load iddata3
input = z3.u;
output = z3.y;

Create a variable to store u(t-1). This variable is updated at each time step.

oldInput = 0;

Estimate the parameters and output using step and input-output data, maintaining the current regressor pair in H. Invoke the step function implicitly by calling the obj System object with input arguments.

for i = 1:numel(input)
    H = [input(i) oldInput];
    [theta, EstimatedOutput] = obj(output(i),H);
    estimatedOut(i)= EstimatedOutput;
    theta_est(i,:) = theta;
    oldInput = input(i);
end

Plot the measured and estimated output data.

numSample = 1:numel(input);
plot(numSample,output,'b',numSample,estimatedOut,'r--');
legend('Measured Output','Estimated Output');

Plot the parameters.

plot(numSample,theta_est(:,1),numSample,theta_est(:,2))
title('Parameter Estimates for Recursive Least Squares Estimation')
legend("theta1","theta2")

View the final estimates.

theta_final = theta

theta_final = 2×1

   -1.5322
   -0.0235

Use Frame-Based Data for Recursive Least Squares Estimation

Use frame-based signals with the recursiveLS command. Machine interfaces often provide sensor data in frames containing multiple samples, rather than in individual samples. The recursiveLS object accepts these frames directly when you set InputProcessing to Frame-based.

The object uses the same estimation algorithms for sample-based and frame-based input processing. The estimation results are identical. There are some special considerations, however, for working with frame-based inputs.

This example is the frame-based version of the sample-based recursiveLS example in Estimate Parameters of System Using Recursive Least Squares Algorithm.

The system has two parameters and is represented as:

$$\mathit{y}\left(\mathit{t}\right)={\mathit{a}}_1^{}\mathit{u}\left(\mathit{t}\right)+{\mathit{a}}_2^{}\mathit{u}\left(\mathit{t}-1\right)$$.

Here,

• $\mathit{u}$ and $$y$$ are the real-time input and output data, respectively.

• $\mathit{u}\left(\mathit{t}\right)$ and $\mathit{u}\left(\mathit{t}-1\right)$ are the regressors, H, of the system.

• ${\mathit{a}}_1^{}$ and ${\mathit{a}}_2^{}$ are the parameters,$$\theta$$, of the system.

Create a System object for online estimation using the recursive least squares algorithm.

obj_f = recursiveLS(2,'InputProcessing','Frame-Based');

Load the data, which contains input and output time series signals. Each signal consists of 30 frames and each frame contains ten individual time samples.

load iddata3_frames input_sig_frame output_sig_frame
input = input_sig_frame.data;
output = output_sig_frame.data;
numframes = size(input,3)

numframes =
30

mframe = size(input,1)

mframe =
10

Initialize the regressor frame, which for a given frame, is of the form

$$H_f=\left[\begin{array}{cc}{u}_1& u_0\\ u_2& u_1\\ ⋮& ⋮\\ u_{10}& u_9\end{array}\right]$$,

where the most recent point in the frame is ${\mathit{u}}_{10}^{}$.

Hframe = zeros(10,2);

For this first-order example, the regressor frame includes one point from the previous frame. Initialize this point.

oldInput = 0;

Estimate the parameters and output using step and input-output data, maintaining the current regressor frame in Hframe.

• The input and output arrays have three dimensions. The third dimension is the frame index, and the first two dimensions represent the contents of individual frames.

• Use the circshift function to populate the second column of Hframe with the past input value for each regressor pair by shifting the input vector by one position.

• Populate the Hframe element holding the oldest value, Hframe(1,2), with the regressor value stored from the previous frame.

• Invoke the step function implicitly by calling the obj System object with input arguments. The step function is compatible with frames, so no loop function within the frame is necessary.

• Save the most recent input value to use for the next frame calculation.

EstimatedOutput = zeros(10,1,30);
theta = zeros(2,30);
for i = 1:numframes
    Hframe = [input(:,:,i) circshift(input(:,:,i),1)];
    Hframe(1,2) = oldInput;
    [theta(:,i), EstimatedOutput(:,:,i)] = obj_f(output(:,:,i),Hframe);
    oldInput = input(10,:,i);
end

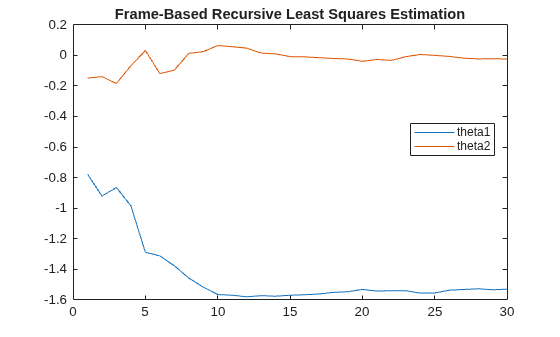

Plot the parameters.

theta1 = theta(1,:);
theta2 = theta(2,:);
iframe = 1:numframes;
plot(iframe,theta1,iframe,theta2)
title('Frame-Based Recursive Least Squares Estimation')
legend('theta1','theta2','location','best')

View the final estimates.

theta_final = theta(:,numframes)

theta_final = 2×1

   -1.5322
   -0.0235

The final estimates are identical to the sample-based estimation.

Specify Initial Parameters for Online Estimation Using Recursive Least Squares Algorithm

Create System object for online parameter estimation using recursive least squares algorithm of a system with two parameters and known initial parameter values.

obj = recursiveLS(2,[0.8 1],'InitialParameterCovariance',0.1);

InitialParameterCovariance represents the uncertainty in your guess for the initial parameters. Typically, the default InitialParameterCovariance (10000) is too large relative to the parameter values. This results in initial guesses being given less importance during estimation. If you have confidence in the initial parameter guesses, specify a smaller initial parameter covariance.

Extended Capabilities

C/C++ Code Generation

Generate C and C++ code using MATLAB® Coder™.

Usage notes and limitations:

• For Simulink^® based workflows, use Recursive Least Squares Estimator.

• For limitations, see Generate Code for Online Parameter Estimation in MATLAB.

Supports MATLAB Function block: No

Version History

Introduced in R2015b
