merge (iddata)

Merge data sets into iddata object

collapse all in page

Syntax

dat = merge(dat1,dat2,....,datN)

Description

dat collects the data sets in dat1, ...,datN into one iddata object, with several experiments. The number of experiments in dat will be the sum of the number of experiments in datk. For the merging to be allowed, a number of conditions must be satisfied:

  • All of datk must have the same number of input channels, and the InputNames must be the same.

  • All of datk must have the same number of output channels, and the OutputNames must be the same. If some input or output channel is lacking in one experiment, it can be replaced by a vector of NaNs to conform with these rules.

  • If the ExperimentNames of datk have been specified as something other than the default 'Exp1', 'Exp2', etc., they must all be unique. If default names overlap, they are modified so that dat will have a list of unique ExperimentNames.

The sampling intervals, the number of observations, and the input properties (Period, InterSample) might be different in the different experiments.

You can retrieve the individual experiments by using the command getexp. You can also retrieve them by subreferencing with a fourth index.

dat1 = dat(:,:,:,ExperimentNumber)

or

dat1 = dat(:,:,:,ExperimentName)

Storing multiple experiments as one iddata object can be very useful for handling experimental data that has been collected on different occasions, or when a data set has been split up to remove “bad” portions of the data. All the toolbox routines accept multiple-experiment data.

Examples

collapse all

Open Live Script

Remove bad portions of data to estimate models without the bad data destroying the estimate.

load iddemo8data;
plot(dat);

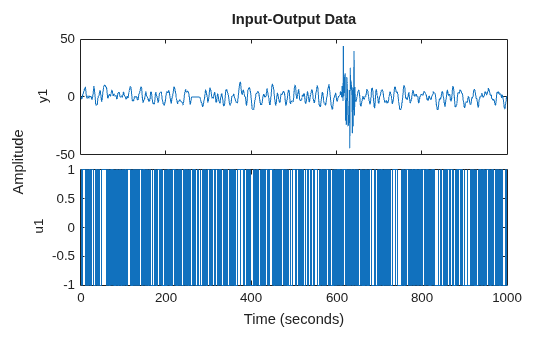

Figure contains 2 axes objects. Axes object 1 with title y1 contains an object of type line. This object represents dat. Axes object 2 with title u1 contains an object of type line. This object represents dat.

Bad portions of data are detected around sample 250 to 280 and between samples 600 to 650. Cut out these bad portions to form a multiple-experiment data set and merge the data.

dat = merge(dat(1:250),dat(281:600),dat(651:1000));

You can use the first two experiments to estimate a model and the third experiment to validate the model.

dat_est = getexp(dat,[1,2]);
m = ssest(dat_est,2);
dat_val = getexp(dat,3);

Version History

Introduced before R2006a
