# CORDIC Sigmoid HDL Optimized

CORDIC-based sigmoid activation

Since R2024a

Libraries:
Fixed-Point Designer HDL Support / Math Operations

## Description

The CORDIC Sigmoid HDL Optimized block returns the sigmoid activation of u, computed using a CORDIC-based implementation optimized for HDL code generation.

## Examples

expand all

This example demonstrates how to compute the sigmoid activation of a given real-valued set of data using the CORDIC Sigmoid HDL Optimized block.

Algorithm

The sigmoid function is defined by

`$y=\frac{1}{1+\text{exp}\left(-x\right)}$`

which is equivalent to

`$y=\frac{1-\text{tanh}\left(-x/2\right)}{2}.$`

The core algorithm of this block uses the CORDIC algorithm in hyperbolic rotation mode to compute the Hyperbolic Tangent HDL Optimized (tanh).

Supported Data Types

The CORDIC Sigmoid HDL Optimized block supports single, double, binary-point scaled fixed-point, and binary-point scaled-double data types for simulation. However, only binary-point scaled fixed-point data types are supported for HDL code generation.

I/O Interface

The CORDIC Sigmoid HDL Optimized block accepts data when the ready output is high, indicating that the block is ready to begin a new computation. Use validIn to indicate a valid input. If the block successfully registers the input value it will de-assert the ready signal; you must then wait until the signal is asserted again to send a new input. This protocol is summarized in the following wave diagram. Note how the first valid input to the block is discarded because the block was not ready to accept input data.

When the block has finished the computation and is ready to send the output, it will assert validOut for one clock cycle. Then ready will be asserted, indicating that the block is ready to accept a new input value.

Simulate the Model

Open the `CORDICSigmoidModel` model.

```mdl = 'CORDICSigmoidModel'; open_system(mdl)```

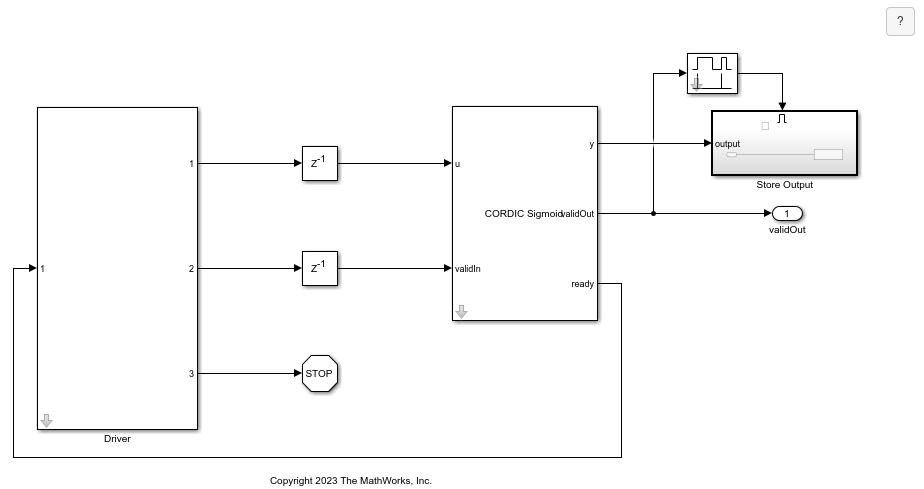

The model contains the CORDIC Sigmoid HDL Optimized block connected to a data source which takes in an array of inputs and passes an input value from the array to the CORDIC Sigmoid HDL Optimized block when it is ready to accept a new input. The output computed for each value is stored in a workspace variable. The simulation terminates when all inputs have been processed.

Define an array of inputs.

`x = fi(linspace(-10,10,100));`

Simulate the model.

`sim(mdl);`

When the simulation is complete, a new workspace variable, `sigmoidOutput`, is created to hold the computed value for each input.

Plot the Output

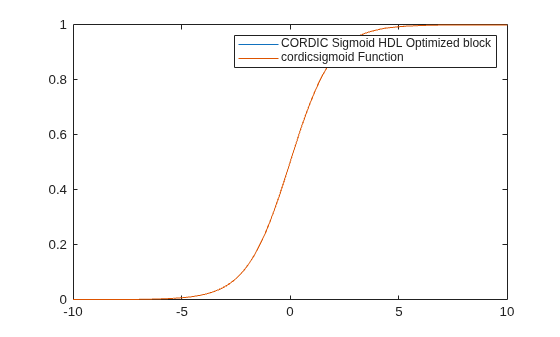

Plot the error of the calculation by comparing the output of the CORDIC Sigmoid HDL Optimized block to that of the MATLAB® `cordicsigmoid` function.

```yMATLAB = cordicsigmoid(x); yMATLAB.numerictype```
```ans = DataTypeMode: Fixed-point: binary point scaling Signedness: Signed WordLength: 16 FractionLength: 14 ```
`sigmoidOutput.numerictype`
```ans = DataTypeMode: Fixed-point: binary point scaling Signedness: Signed WordLength: 16 FractionLength: 14 ```
```figure(1); plot(x, sigmoidOutput); hold on plot(x, yMATLAB); legend('CORDIC Sigmoid HDL Optimized block','cordicsigmoid Function');```

Verify the block output is bit-exact with the output of the `cordicsigmoid` function.

`max(yMATLAB' - sigmoidOutput)`
```ans = 0 DataTypeMode: Fixed-point: binary point scaling Signedness: Signed WordLength: 17 FractionLength: 14 ```

## Ports

### Input

expand all

Input data, specified as a real-valued scalar.

If u is a fixed-point or scaled double data type, u must use binary-point scaling. Slope-bias representation is not supported for fixed-point data types. Only binary-point scaled fixed-point data types are supported for code generation.

Data Types: `single` | `double` | `fixed point`

Whether input is valid, specified as a Boolean scalar. This control signal indicates when the data from the u input port is valid. When this value is `1` (`true`), the block captures the value on the u input port. When this value is `0` (`false`), the block ignores the input samples.

Data Types: `Boolean`

### Output

expand all

Sigmoid activation of the value at u, returned as a scalar. The value at y is the CORDIC-based approximation of the sigmoid activation of u.

When the input u is floating point, the output y has the same data type as the input. When the input is a fixed-point data type, the output has the same word length as the input and a fraction length equal to 2 less than the word length.

Data Types: `single` | `double` | `fixed point`

Whether the output data is valid, returned as a Boolean scalar. When the value of this control signal is `1` (`true`), the block has successfully computed the output y. When this value is `0` (`false`), the output data is not valid.

Data Types: `Boolean`

Whether the block is ready, returned as a Boolean scalar. This control signal indicates when the block is ready for new input data. When this value is 1 (`true`), and the validIn value is 1 (`true`), the block accepts input data in the next clock cycle. When this value is 0 (`false`), the block ignores input data in the next clock cycle.

Data Types: `Boolean`

expand all

## Version History

Introduced in R2024a
