asymptotics
Determine Markov chain asymptotics
Description
Examples
Determine Markov Chain Stationary Distribution
Consider this theoretical, right-stochastic transition matrix of a stochastic process.
Create the Markov chain that is characterized by the transition matrix P.
P = [ 0 0 1/2 1/4 1/4 0 0 ; 0 0 1/3 0 2/3 0 0 ; 0 0 0 0 0 1/3 2/3; 0 0 0 0 0 1/2 1/2; 0 0 0 0 0 3/4 1/4; 1/2 1/2 0 0 0 0 0 ; 1/4 3/4 0 0 0 0 0 ]; mc = dtmc(P);

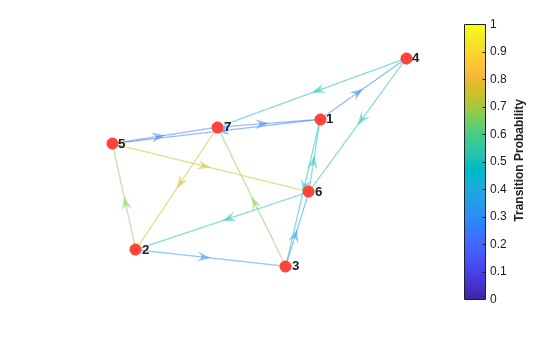

Plot a directed graph of the Markov chain. Indicate the probability of transition by using edge colors.
figure;
graphplot(mc,'ColorEdges',true);
Determine the stationary distribution of the Markov chain.
xFix = asymptotics(mc)
xFix = 1×7
0.1300 0.2034 0.1328 0.0325 0.1681 0.1866 0.1468
Because xFix
is a row vector, it is the unique stationary distribution of mc
.
Estimate Markov Chain Mixing Time
Create a five-state transition matrix of empirical counts by generating a block diagonal matrix composed of discrete uniform draws.
m = 100; % Maximal count rng(1); % For reproducibility P = blkdiag(randi(100,2) + 1,randi(100,3) + 1)
P = 5×5
43 2 0 0 0
74 32 0 0 0
0 0 16 36 43
0 0 11 41 70
0 0 20 55 22

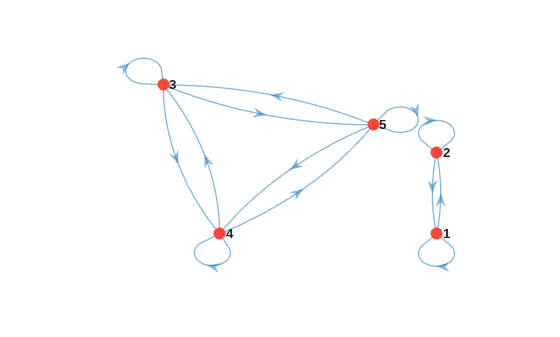

Create and plot a digraph of the Markov chain that is characterized by the transition matrix P.
mc = dtmc(P); figure; graphplot(mc)
Determine the stationary distribution and mixing time of the Markov chain.
[xFix,tMix] = asymptotics(mc)
xFix = 2×5
0.9401 0.0599 0 0 0
0 0 0.1497 0.4378 0.4125
tMix = 0.8558
Rows of xFix
correspond to the stationary distributions of the two independent recurrent classes of mc
.
Create separate Markov chains representing the recurrent subchains of mc
.
mc1 = subchain(mc,1); mc2 = subchain(mc,3);
mc1
and mc2
are dtmc
objects. mc1
is the recurrent class containing state 1
, and mc2
is the recurrent class containing state 3
.
Compare the mixing times of the subchains.
[x1,t1] = asymptotics(mc1)
x1 = 1×2
0.9401 0.0599
t1 = 0.7369
[x2,t2] = asymptotics(mc2)
x2 = 1×3
0.1497 0.4378 0.4125
t2 = 0.8558
mc1
approaches its stationary distribution more quickly than mc2
.
Determine Dumbbell Chain Mixing Time
Create a "dumbbell" Markov chain containing 10 states in each "weight" and three states in the "bar."
Specify random transition probabilities between states within each weight.
If the Markov chain reaches the state in a weight that is closest to the bar, then specify a high probability of transitioning to the bar.
Specify uniform transitions between states in the bar.
rng(1,"twister"); % For reproducibility w = 10; % Dumbbell weights DBar = [0 1 0; 1 0 1; 0 1 0]; % Dumbbell bar DB = blkdiag(rand(w),DBar,rand(w)); % Transition matrix % Connect dumbbell weights and bar DB(w,w+1) = 1; DB(w+1,w) = 1; DB(w+3,w+4) = 1; DB(w+4,w+3) = 1; mc = dtmc(DB);

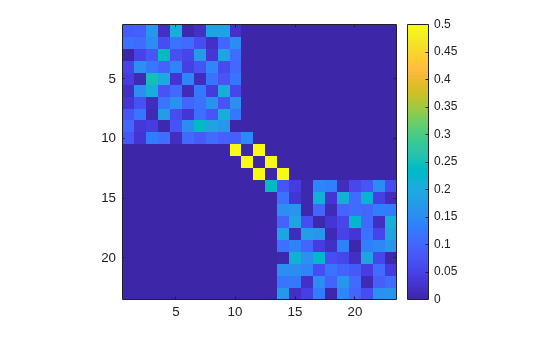

Visualize the transition matrix using a heatmap.
figure
imagesc(mc.P)
axis square
colorbar

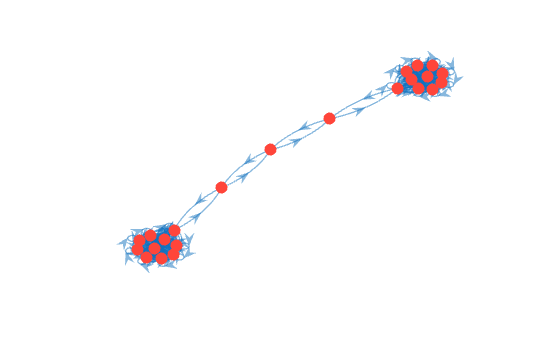

Plot a directed graph of the Markov chain. Suppress node labels.
figure h = graphplot(mc); h.NodeLabel = {};

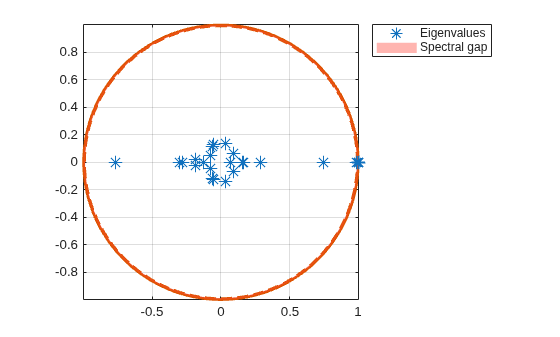

Plot the eigenvalues of the dumbbell chain.
figure eigplot(mc)
The thin, red disc in the plot shows the spectral gap (the difference between the two largest eigenvalue moduli). The spectral gap determines the mixing time of the Markov chain. Large gaps indicate faster mixing, whereas thin gaps indicate slower mixing. In this case, the spectral gap is thin, indicating a long mixing time.
Estimate the mixing time of the dumbbell chain and determine whether the chain is ergodic.
[~,tMix] = asymptotics(mc)
tMix = 85.3258
tf = isergodic(mc)
tf = logical
1
On average, the time it takes for the total variation distance between any initial distribution and the stationary distribution to decay by a factor of is about 85 steps.
Input Arguments
mc
— Discrete-time Markov chain
dtmc
object
Discrete-time Markov chain with NumStates
states and transition matrix P
, specified as a dtmc
object. P
must be fully specified (no NaN
entries).
Output Arguments
xFix
— Stationary distribution
nonnegative numeric matrix
Stationary distribution, with xFix*P
= xFix
, returned as a nonnegative numeric matrix with NumStates
columns. The number of rows of xFix
is the number of independent recurrent classes in mc
.
For unichains, the distribution is unique, and
xFix
is a1
-by-NumStates
vector.Otherwise, each row of
xFix
represents a distinct stationary distribution inmc
.
tMix
— Mixing time
positive numeric scalar
Mixing time, returned as a positive numeric scalar.
If μ, the second largest eigenvalue modulus (SLEM) of P
, exists and is nonzero, then the estimated mixing time is .
Note
If
P
is a nonnegative stochastic matrix, then the Markov chainmc
it characterizes has a left eigenvectorxFix
with eigenvalue1
. The Perron-Frobenius Theorem [2] implies that ifmc
is a unichain (a chain with a single recurrent communicating class), thenxFix
is unique. For reducible chains with multiple recurrent classes, eigenvalue1
has higher multiplicity, andxFix
is nonunique. If a chain is periodic,xFix
is stationary but not limiting because arbitrary initial distributions do not converge to it.xFix
is both unique and limiting for ergodic chains only. Seeclassify
.For ergodic chains,
tMix
is a characteristic time for any initial distribution to converge toxFix
. Specifically, it is the time for the total variation distance between an initial distribution andxFix
to decay by a factor ofe
=exp(1)
. Mixing times are a measure of the relative connectivity of transition structures in different chains.
References
[1] Gallager, R.G. Stochastic Processes: Theory for Applications. Cambridge, UK: Cambridge University Press, 2013.
[2] Horn, R., and C. R. Johnson. Matrix Analysis. Cambridge, UK: Cambridge University Press, 1985.
[3] Seneta, E. Non-negative Matrices and Markov Chains. New York, NY: Springer-Verlag, 1981.
Version History
Introduced in R2017b
