iirftransf
IIR frequency transformation of digital filter
Description
[
returns the numerator and the denominator coefficients of the transformed filter. num
,den
] = iirftransf(b
,a
,allpassNum
,allpassDen
)
The iirftransf
function transforms a prototype filter, specified by
the numerator b
and denominator a
, by using an
allpass mapping filter, specified by the numerator allpassNum
and the
denominator allpassDen
. If you do not specify an allpass mapping
filter, then the function returns an original filter.
Examples
Transform Lowpass Filter Using Allpass Mapping Filter
Using the iirftransf
function, extend the passband of a lowpass IIR filter by using an allpass mapping filter.
Input Lowpass IIR Filter

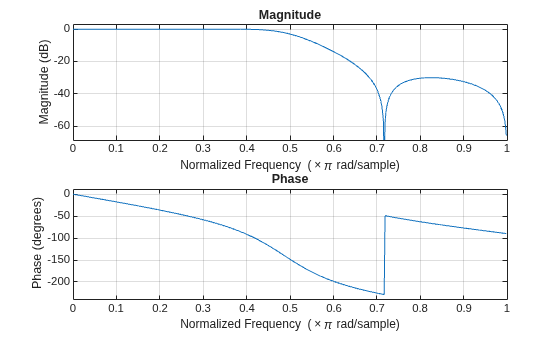

Design a prototype real IIR lowpass elliptic filter with a gain of about –3 dB at 0.5π rad/sample.
[b,a] = ellip(3,0.1,30,0.409); freqz(b,a)
Transform Filter Using iirftransf
Extend the passband of the real prototype filter by specifying the allpass mapping filter as a vector of numerator and denominator coefficients, alpnum
and alpden
respectively. Use the allpasslp2lp
function to generate the allpass mapping filter coefficients.
Specify the prototype filter as a vector of numerator and denominator coefficients, b
and a
respectively.
[b,a] = ellip(3,0.1,30,0.409); [alpnum,alpden] = allpasslp2lp(0.5,0.25); [num,den] = iirftransf(b,a,alpnum,alpden);

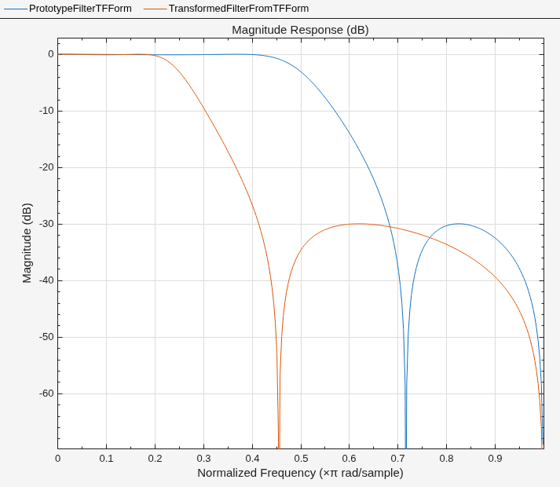

Compare the magnitude response of the filters.
filterAnalyzer(b,a,num,den,FilterNames=["PrototypeFilterTFForm","TransformedFilterFromTFForm"]);
You can also specify the input lowpass IIR filter as a matrix of coefficients. Pass the second-order section matrices as inputs. The numerator and the denominator coefficients of the transformed filter are given by num2
and den2
, respectively.
[ss,g] = tf2sos(b,a);
[num2,den2] = iirftransf(ss(:,1:3),ss(:,4:6),...
alpnum,alpden);

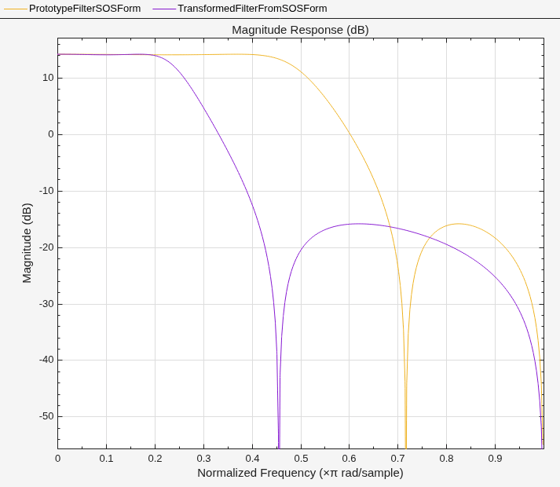

Compare the magnitude response of the filters.
filterAnalyzer(ss(:,1:3),ss(:,4:6),num2,den2,FilterNames=["PrototypeFilterSOSForm",... "TransformedFilterFromSOSForm"]);
Input Arguments
b
— Numerator coefficients of prototype lowpass IIR filter
row vector | matrix
Numerator coefficients of the prototype lowpass IIR filter, specified as either:
Row vector –– Specifies the values of [b0, b1, …, bn], given this transfer function form:
where n is the order of the filter.
Matrix –– Specifies the numerator coefficients in the form of an P-by-(Q+1) matrix, where P is the number of filter sections and Q is the order of each filter section. If Q = 2, the filter is a second-order section filter. For higher-order sections, make Q > 2.
In the transfer function form, the numerator coefficient matrix bik of the IIR filter can be represented using the following equation:
where,
a –– Denominator coefficients matrix. For more information on how to specify this matrix, see
a
.k –– Row index.
i –– Column index.
When specified in the matrix form, b and a matrices must have the same number of rows (filter sections) Q.
Data Types: single
| double
Complex Number Support: Yes
a
— Denominator coefficients of prototype lowpass IIR filter
row vector | matrix
Denominator coefficients for a prototype lowpass IIR filter, specified as one of these options:
Row vector –– Specifies the values of [a0, a1, …, an], given this transfer function form:
where n is the order of the filter.
Matrix –– Specifies the denominator coefficients in the form of an P-by-(Q+1) matrix, where P is the number of filter sections and Q is the order of each filter section. If Q = 2, the filter is a second-order section filter. For higher-order sections, make Q > 2.
In the transfer function form, the denominator coefficient matrix aik of the IIR filter can be represented using the following equation:
where,
b –– Numerator coefficients matrix. For more information on how to specify this matrix, see
b
.k –– Row index.
i –– Column index.
When specified in the matrix form, a and b matrices must have the same number of rows (filter sections) P.
Data Types: single
| double
Complex Number Support: Yes
allpassNum
— Numerator coefficients of mapping filter
row vector
Numerator coefficients of the mapping filter, specified as a row vector.
Data Types: single
| double
Complex Number Support: Yes
allpassDen
— Denominator coefficients of mapping filter
row vector
Denominator coefficients of the mapping filter, specified as a row vector.
Data Types: single
| double
Complex Number Support: Yes
Output Arguments
num
— Numerator coefficients of transformed filter
row vector | matrix
Numerator coefficients of the transformed filter, returned as one of the following:
Row vector of length n+1, where n is the order of the input filter. The
num
output is a row vector when the input coefficientsb
anda
are row vectors.P-by-(Q+1) matrix, where P is the number of filter sections and Q is the order of each section of the transformed filter. The
num
output is a matrix when the input coefficientsb
anda
are matrices.
Data Types: single
| double
Complex Number Support: Yes
den
— Denominator coefficients of transformed filter
row vector | matrix
Denominator coefficients of the transformed filter, returned as one of the following:
Row vector of length n+1, where n is the order of the input filter. The
den
output is a row vector when the input coefficientsb
anda
are row vectors.P-by-(Q+1) matrix, where P is the number of filter sections and Q is the order of each section of the transformed filter. The
den
output is a matrix when the input coefficientsb
anda
are matrices.
Data Types: single
| double
Extended Capabilities
C/C++ Code Generation
Generate C and C++ code using MATLAB® Coder™.
Version History
Introduced in R2011a
