filterAnalysisOptions
Description
filterAnalysisOptions
specifies analysis options for filters displayed in
Filter Analyzer.
Creation
Syntax
Description
returns an
object containing magnitude-response analysis options. Use opts
= filterAnalysisOptionsopts
to
specify analysis options for the Filter Analyzer
app.
returns filter analysis options for the specified opts
= filterAnalysisOptions(analysis
)analysis
type.
You can also specify analysis
using a name-value argument.
specifies the Properties of
opts
= filterAnalysisOptions(___,Name=Value
)opts
using name-value arguments.
Input Arguments
analysis
— Analysis type
"magnitude"
(default) | "phase"
| "groupdelay"
| "phasedelay"
| "magestimate"
| "noisepsd"
| "impulse"
| "step"
| "polezero"
| "info"
| "coefficients"
Analysis type, specified as one of these:
Frequency-domain analyses:
"magnitude"
— Magnitude response"phase"
— Phase response"groupdelay"
— Group delay response"phasedelay"
— Phase delay response"magestimate"
— Magnitude response estimate"noisepsd"
— Noise power spectral density (PSD)
Time-domain analyses:
"impulse"
— Impulse response"step"
— Step response
Other analyses:
"polezero"
— Pole-zero plot"info"
— Filter information"coefficients"
— Filter coefficients
You can also specify analysis
as a name-value
argument: filterAnalysisOptions(Analysis=analysis)
is equivalent to
filterAnalysisOptions(analysis)
.
For more information, see Analysis
.
overlay
— Overlaid analysis
string
Overlaid analysis, specified as a string.
If
analysis
is set to a frequency-domain analysis, thenoverlay
must be also a frequency-domain analysis.If
analysis
is set to a time-domain analysis, thenoverlay
must be also a time-domain analysis.analysis
andoverlay
must be set to different values.This argument is not supported if
analysis
is set to"polezero"
,"info"
, or"coefficients"
.
You can also specify overlay
as a name-value
argument:
filterAnalysisOptions(Analysis=analysis,OverlayAnalysis=overlay)
is equivalent to filterAnalysisOptions(analysis,overlay)
Properties
Analysis Type
Analysis
— Analysis type
"magnitude"
(default) | "phase"
| "groupdelay"
| "phasedelay"
| "magestimate"
| "noisepsd"
| "impulse"
| "step"
| "polezero"
| "info"
| "coefficients"
Analysis type, specified as one of these:
Frequency-domain analyses:
"magnitude"
— Magnitude response"phase"
— Phase response"groupdelay"
— Group delay response"phasedelay"
— Phase delay response"magestimate"
— Magnitude response estimate"noisepsd"
— Noise power spectral density (PSD)
Time-domain analyses:
"impulse"
— Impulse response"step"
— Step response
Other analyses:
"polezero"
— Pole-zero plot"info"
— Filter information"coefficients"
— Filter coefficients
For more information, see Analysis
.
OverlayAnalysis
— Overlaid analysis
string
Overlaid analysis, specified as a string.
If
Analysis
is set to a frequency-domain analysis, thenOverlayAnalysis
must be also a frequency-domain analysis.If
Analysis
is set to a time-domain analysis, thenOverlayAnalysis
must be also a time-domain analysis.Analysis
andOverlayAnalysis
must be set to different values.This argument is not supported if
Analysis
is set to"polezero"
,"info"
, or"coefficients"
.
For more information, see Analysis
.
Frequency Normalization and Sample Rate
FrequencyNormalizationMode
— Frequency normalization mode
"auto"
(default) | "normalized"
| "unnormalized"
Frequency normalization mode, specified as one of these:
"normalized"
— The app normalizes the response of each input filter with respect to its sample rate and computes responses using normalized frequencies expressed in rad/sample."unnormalized"
— The app computes responses in cyclical frequencies expressed in hertz. Filters with no sample rate are assumed to work at 1 Hz."auto"
— The app uses the"unnormalized"
mode if all filters under analysis have a specified sample rate and the"normalized"
mode otherwise.
Data Types: char
| string
ReferenceSampleRateMode
— Reference sample rate selection mode
"max"
(default) | "specify"
Reference sample rate selection mode, specified as one of these:
"max"
— The app uses the maximum sample rate of all the filters under analysis in a display."specify"
— You specify a sample rate value using theReferenceSampleRate
property.
This property does not apply if
FrequencyNormalizationMode
is
"normalized"
.
Data Types: char
| string
ReferenceSampleRate
— Reference sample rate
positive scalar
Reference sample rate, specified as a positive scalar. The app uses the specified
reference sample rate to normalize filter responses and to define the overall Nyquist
range over which the filters are analyzed. This property applies only if
ReferenceSampleRateMode
is set to
"specify"
.
Example: 44.1e3
Data Types: double
Frequency-Domain Analysis
FrequencyRange
— Analysis frequency range
"auto"
(default) | "onesided"
| "twosided"
| "centered"
| "freqvector"
Analysis frequency range, specified as one of these:
"onesided"
— The app computes responses over the range [0, π) when using normalized frequencies and over the range [0,referenceSampleRate
/2) when using unnormalized frequencies."twosided"
— The app computes responses over the range [0, 2π) when using normalized frequencies and over the range [0,referenceSampleRate
) when using unnormalized frequencies."centered"
— The app computes responses over the range [–π, π) when using normalized frequencies and over the range [–referenceSampleRate
/2,referenceSampleRate
/2) when using unnormalized frequencies. This option does not apply whenFrequencyScale
is set to"log"
."freqvector"
— The app computes responses at the frequency points specified usingFrequencyVector
."auto"
— The app computes one-sided responses if all filters under analysis in a display have real-valued coefficients and two-sided responses if at least one filter has complex-valued coefficients.
Data Types: char
| string
NFFT
— Number of discrete Fourier transform points
8192 (default) | positive integer
Number of discrete Fourier transform points used to compute filter responses,
specified as a positive integer. This property does not apply when
FrequencyRange
is set to
"freqvector"
.
Example: 1024
Data Types: double
FrequencyScale
— Frequency scale for filter responses
"linear"
(default) | "log"
Frequency scale to visualize filter responses, specified as
"linear"
for linear frequency scale or "log"
for logarithmic frequency scale. The "log"
option does not apply if
FrequencyRange
is set to "centered"
.
Data Types: char
| string
FrequencyVector
— Frequency vector
real vector
Frequency vector over which filters are computed, specified as a vector of finite
real values. If FrequencyVectorUnits
is set to
"normalized"
, the vector is assumed to be in units of rad/sample.
Otherwise, the vector is assumed to be in the selected units.
This property applies only when FrequencyRange
is set to
"freqvector"
. This property is not supported when either
analysis
or overlay
is set to
"magestimate"
or "noisepsd"
.
Example: [-pi/3 0 pi/6 pi/2]
and [-200 0 100
300]
are equivalent when the sample rate is 600 Hz.
Data Types: double
FrequencyVectorUnits
— Units for frequency vector values
"normalized"
(default) | "Hz"
| "kHz"
| "MHz"
| "GHz"
Units for frequency vector values, specified as a string. If this property is set
to "normalized"
, the frequency vector is assumed to be normalized
in units of rad/sample. Otherwise, the vector is assumed to be in the selected
units.
This property applies only when FrequencyRange
is set to
"freqvector"
. This property is not supported when either
analysis
or overlay
is set to
"magestimate"
or "noisepsd"
.
Data Types: double
Magnitude Response and Magnitude Estimate
MagnitudeMode
— Magnitude response mode
"db"
(default) | "linear"
| "squared"
| "zerophase"
Magnitude response mode, specified as one of these:
"linear"
— The app computes the filter response as the absolute value of the frequency response."squared"
— The app computes the filter response as the magnitude squared of the frequency response."db"
— The app computes the filter response as the magnitude, in decibel scale, of the frequency response."zerophase"
— The app computes the filter response as the zero-phase response. This option does not apply if eitheranalysis
oroverlay
is specified as"magestimate"
.
Data Types: char
| string
MagnitudeEstimateNumTrials
— Number of trials to compute frequency response estimate
12 (default) | positive integer
Number of trials to compute the frequency response estimate, specified as a
positive integer. This property applies only when either Analysis
or OverlayAnalysis
is specified as
"magestimate"
.
Example: 24
Data Types: double
NormalizeMagnitude
— Option to normalize magnitude response
false
(default) | true
Option to normalize the magnitude response, specified as a logical value. If this
property is set to true
, the filter magnitude response is
normalized to 1.
Data Types: logical
Phase Response and Phase Delay Response

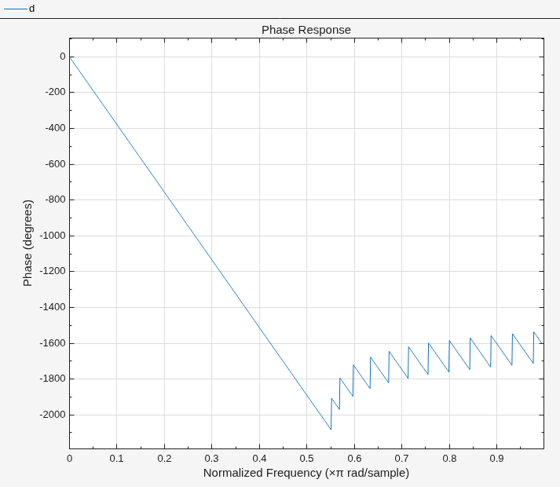

PhaseUnits
— Units for phase response or phase delay response
"radians"
(default) | "degrees"
Units for phase response or phase delay response, specified as
"radians"
or "degrees"
.
Data Types: char
| string
ContinuousPhase
— Option to use continuous phase when computing phase response
false
(default) | true
Option to use continuous phase when computing phase response, specified as a logical value.
Data Types: logical
Group Delay Response
GroupDelayUnits
— Units for group delay response
"samples"
(default) | "time"
Units for group delay response, specified as "samples"
or
"time"
.
Data Types: char
| string
Noise PSD
NoisePSDNumTrials
— Number of trials to compute noise PSD
12 (default) | positive integer
Number of trials to compute the noise power spectral density, specified as a positive integer.
Example: 10
Data Types: double
Time-Domain Analysis
ResponseLengthMode
— Response length mode
"auto"
(default) | "specify"
Response length mode, specified as one of these:
"auto"
— The app uses theimpzlength
function to estimate the response length."specify"
— You set the response length using theResponseLength
property.
Data Types: char
| string
ResponseLength
— Length of time-domain response
positive integer
Length of time-domain response, specified as a positive integer. This property
applies only if ResponseLengthMode
is set to
"specify"
.
Example: 128
Data Types: double
Coefficients
CoefficientsFormat
— Format for filter coefficients
"decimal"
(default) | "hex"
| "binary"
Format for filter coefficients, specified as "decimal"
,
"hex"
, or "binary"
.
Data Types: char
| string
All Domains
ReferenceFilter
— View double-precision reference filter
false
(default) | true
Option to view double-precision reference filter, specified as a logical value. If
this property is set to true
, Filter Analyzer displays
responses of quantized filters and their double-precision references.
Data Types: logical
PolyphaseDecomposition
— View polyphase decomposition of polyphase filter
false
(default) | true
Option to view polyphase decomposition of polyphase filter, specified as a logical value.
Data Types: logical
CTFAnalysisMode
— Cascaded transfer function computation mode
"complete"
(default) | "individual"
| "cumulative"
| "specify"
Cascaded transfer function computation mode, specified as one of these:
"complete"
— The app computes the overall response of the cascaded sections"individual"
— The app computes the response of each section."cumulative"
— The app computes cumulative responses."specify"
— You use theCTFAnalysisSections
property to specify the combination of sections over which to compute responses.
Data Types: char
| string
CTFAnalysisSections
— Section combinations for CTF response computation
cell array
Section combinations over which to compute cascaded transfer function responses,
specified as a cell array. This property applies only when
CTFAnalysisMode
is set to "specify"
.
Example: {[1 2 3],[4 5 6]}
directs the app to compute
responses for a cascade of sections 1, 2, and 3 and a cascade of sections 4, 5, and
6.
Data Types: cell
Examples
Filter Analysis Options
Design a lowpass FIR filter and display its phase response in Filter Analyzer. Use 1024 NFFT points and display the phase in degrees.
d = designfilt("lowpassfir", ... PassbandFrequency=0.45,StopbandFrequency=0.55, ... PassbandRipple=1,StopbandAttenuation=60); opts = filterAnalysisOptions("phase")
opts = filterAnalysisOptions with properties: Analysis: "phase" OverlayAnalysis: "none" FrequencyNormalizationMode: "auto" ReferenceSampleRateMode: "max" FrequencyRange: "auto" NFFT: 8192 FrequencyScale: "linear" PhaseUnits: "radians" ContinuousPhase: 0 ReferenceFilter: 1 PolyphaseDecomposition: 0 CTFAnalysisMode: "complete"
opts.NFFT = 1024;
opts.PhaseUnits = "degrees";
filterAnalyzer(d,AnalysisOptions=opts)
Version History
Introduced in R2024a
MATLAB-Befehl
Sie haben auf einen Link geklickt, der diesem MATLAB-Befehl entspricht:
Führen Sie den Befehl durch Eingabe in das MATLAB-Befehlsfenster aus. Webbrowser unterstützen keine MATLAB-Befehle.
Select a Web Site
Choose a web site to get translated content where available and see local events and offers. Based on your location, we recommend that you select: .
You can also select a web site from the following list:
How to Get Best Site Performance
Select the China site (in Chinese or English) for best site performance. Other MathWorks country sites are not optimized for visits from your location.
Americas
- América Latina (Español)
- Canada (English)
- United States (English)
Europe
- Belgium (English)
- Denmark (English)
- Deutschland (Deutsch)
- España (Español)
- Finland (English)
- France (Français)
- Ireland (English)
- Italia (Italiano)
- Luxembourg (English)
- Netherlands (English)
- Norway (English)
- Österreich (Deutsch)
- Portugal (English)
- Sweden (English)
- Switzerland
- United Kingdom (English)
