getQualityFactor

Get quality factor

collapse all in page

Syntax

Q = getQualityFactor(npFilter)

Description

example

Q = getQualityFactor(npFilter) returns the quality factor (Q factor) of the notch peak filter. The Q factor is defined as the center frequency divided by the bandwidth.

Examples

collapse all

Open Live Script

Create a dsp.NotchPeakFilter object in the default configuration, where the Specification property is set to 'Bandwidth and center frequency'.

np = dsp.NotchPeakFilter
np =
  dsp.NotchPeakFilter with properties:

      Specification: 'Bandwidth and center frequency'
          Bandwidth: 2205
    CenterFrequency: 11025
         SampleRate: 44100

Determine the quality factor of the filter using the getQualityFactor function. The quality factor is given by the ratio of the center frequency to the bandwidth.

getQualityFactor(np)
ans = 5

Visualize the filter response using fvtool.

fvtool(np)

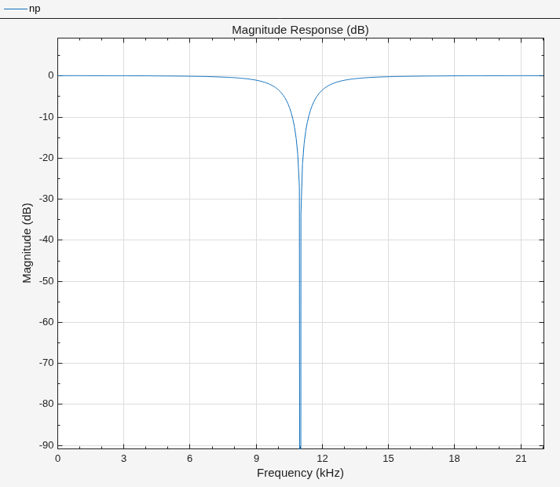

Figure Figure 1: Magnitude Response (dB) contains an axes object. The axes object with title Magnitude Response (dB), xlabel Frequency (kHz), ylabel Magnitude (dB) contains an object of type line.

Input Arguments

collapse all

Notch peak filter whose quality factor is computed, specified as a dsp.NotchPeakFilter object.

Output Arguments

collapse all

Quality factor of the filter, returned as a scalar. The Q factor is defined as the center frequency divided by the bandwidth.

Data Types: double

Version History

Introduced in R2014a
