designoptions
Show all options available for specified design
Description
returns all design options available for a specification object,
options
= designoptions(designSpecs
,method
)designSpecs
, using a particular design method,
method
.
Examples
Design Butterworth Filter
Design a Butterworth filter with lowpass and highpass frequency responses. The filter design procedure is:
Specify the filter design specifications using a
fdesign
function.Pick a design method provided by the
designmethods
function.To determine the available design options to choose from, use the
designoptions
function.Design the filter using the
design
function.
Lowpass Filter
Construct a default lowpass filter design specification object using fdesign.lowpass
.
designSpecs = fdesign.lowpass
designSpecs = lowpass with properties: Response: 'Lowpass' Specification: 'Fp,Fst,Ap,Ast' Description: {4x1 cell} NormalizedFrequency: 1 Fpass: 0.4500 Fstop: 0.5500 Apass: 1 Astop: 60
Determine the available design methods using the designmethods
function. To design a Butterworth filter, pick butter
.
designmethods(designSpecs,SystemObject=true)
Design Methods that support System objects for class fdesign.lowpass (Fp,Fst,Ap,Ast): butter cheby1 cheby2 ellip equiripple ifir kaiserwin multistage
While designing the filter, you can specify additional design options. View a list of the options using the designoptions
function. This function also shows the default design options the filter uses.
designoptions(designSpecs,'butter',SystemObject=true)
ans = struct with fields:
FilterStructure: {'df1sos' 'df2sos' 'df1tsos' 'df2tsos' 'cascadeallpass' 'cascadewdfallpass'}
SOSScaleNorm: 'ustring'
SOSScaleOpts: 'fdopts.sosscaling'
MatchExactly: {'passband' 'stopband'}
DefaultFilterStructure: 'df2sos'
DefaultMatchExactly: 'stopband'
DefaultSOSScaleNorm: ''
DefaultSOSScaleOpts: [1x1 fdopts.sosscaling]
Use the design
function to design the filter. Pass 'butter'
and the specifications given by variable designSpecs
, as input arguments. Specify the 'matchexactly'
design option to 'passband'
.
lpFilter = design(designSpecs,'butter',matchexactly='passband',SystemObject=true)
lpFilter = dsp.SOSFilter with properties: Structure: 'Direct form II' CoefficientSource: 'Property' Numerator: [13x3 double] Denominator: [13x3 double] HasScaleValues: true ScaleValues: [0.4095 0.3669 0.3330 0.3059 0.2841 0.2666 0.2525 0.2414 0.2328 0.2263 0.2219 0.2193 0.4674 1] Use get to show all properties
Visualize the frequency response of the designed filter.
filterAnalyzer(lpFilter)
Highpass Filter
Construct a highpass filter design specification object using fdesign.highpass
. Specify the order to be 7 and the 3 dB frequency to be radians/sample.
designSpecs = fdesign.highpass('N,F3dB',7,.6)
designSpecs = highpass with properties: Specification: 'N,F3dB' Response: 'Highpass' Description: {2x1 cell} NormalizedFrequency: 1 FilterOrder: 7 F3dB: 0.6000
Determine the available design methods. To design a Butterworth filter, pick butter
.
designmethods(designSpecs,SystemObject=true)
Design Methods that support System objects for class fdesign.highpass (N,F3dB): butter maxflat
While designing the filter, you can specify additional design options. View a list of the options using the designoptions
function. This function also shows the default design options the filter uses.
designoptions(designSpecs,'butter',SystemObject=true)
ans = struct with fields:
FilterStructure: {'df1sos' 'df2sos' 'df1tsos' 'df2tsos' 'cascadeallpass' 'cascadewdfallpass'}
SOSScaleNorm: 'ustring'
SOSScaleOpts: 'fdopts.sosscaling'
DefaultFilterStructure: 'df2sos'
DefaultSOSScaleNorm: ''
DefaultSOSScaleOpts: [1x1 fdopts.sosscaling]
To design the Butterworth filter, use the design
function and specify 'butter'
as an input. Set 'FilterStructure'
to 'cascadeallpass'
.
hpFilter = design(designSpecs,'butter',FilterStructure='cascadeallpass',SystemObject=true)
hpFilter = dsp.CoupledAllpassFilter with properties: Structure: 'Minimum multiplier' PureDelayBranch: 0 AllpassCoefficients1: {2x1 cell} AllpassCoefficients2: {2x1 cell} Gain1: '-1' Gain2: '1'
Visualize the highpass frequency response.
filterAnalyzer(hpFilter)
Design Notch Filter
Design a direct-form I notching filter that has a filter order of 6, center frequency of 0.5, quality factor of 10, and a passband ripple of 1 dB.
Create a notch
filter design specification object using the fdesign.notch
function and specify these design parameters.
notchSpecs = fdesign.notch('N,F0,Q,Ap',6,0.5,10,1);
Design the notch filter using the design
function. The resulting filter is a dsp.SOSFilter
System object™. For details on how to apply this filter on streaming data, refer to dsp.SOSFilter
.
notchFilt = design(notchSpecs,SystemObject=true)
notchFilt = dsp.SOSFilter with properties: Structure: 'Direct form II' CoefficientSource: 'Property' Numerator: [3x3 double] Denominator: [3x3 double] HasScaleValues: true ScaleValues: [0.7722 0.7722 1.3597 1] Use get to show all properties

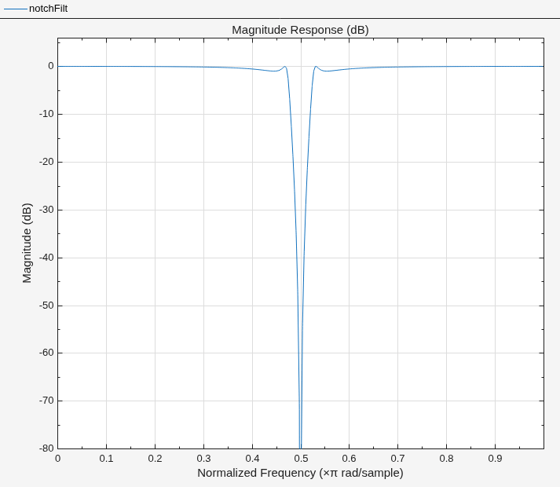

Visualize the frequency response of the designed filter.
filterAnalyzer(notchFilt)
Input Arguments
designSpecs
— Filter specification object
object
Filter specification object, specified as one of the fdesign
functions.
method
— Design method
character vector
Design method, specified as a character vector. You can pick a design method from
the available methods given by the designmethods
function.
Output Arguments
options
— Available design options
structure
Available design options, returned as a structure with the fields determined by the
input filter specification object, designSpecs
, and the design
method chosen.
Version History
Introduced in R2007b
