allpassbpc2bpc

Allpass filter for complex bandpass transformation

Syntax

[AllpassNum,AllpassDen] = allpassbpc2bpc(Wo,Wt)

Description

[AllpassNum,AllpassDen] = allpassbpc2bpc(Wo,Wt) returns the numerator, AllpassNum, and the denominator, AllpassDen, of the first-order allpass mapping filter for performing a complex bandpass to complex bandpass frequency transformation. For more information, see Complex Bandpass to Complex Bandpass Frequency Transformation.

Examples

Design of the allpass mapping filter

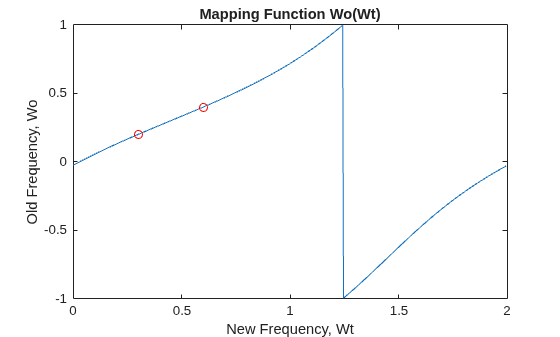

This example shows how to design allpass mapping filter, changing the complex bandpass filter with the band edges at $$W_{o1}=0.2$$ and $$W_{o2}=0.4$$ to the new band edges of $$W_{t1}=0.3$$ and $$W_{t2}=0.6$$. Find the frequency response of the allpass mapping filter:

Wo = [0.2, 0.4]; Wt = [0.3, 0.6];
[AllpassNum, AllpassDen] = allpassbpc2bpc(Wo, Wt);
[ha, f] = freqz(AllpassNum, AllpassDen, 'whole');
plot(f/pi,-angle(ha)/pi, Wt, Wo, 'ro')
title('Mapping Function Wo(Wt)');
xlabel('New Frequency, Wt'); ylabel('Old Frequency, Wo');

Input Arguments

Wo — Frequency values to be transformed from prototype filter

real vector with values in the range (-1,1)

Frequency values to be transformed from the prototype filter, specified as a real vector with values in the range (-1,1).

Data Types: single | double

Wt — Desired frequency locations in target filter

real vector with values in the range (-1,1)

Desired frequency locations in the transformed target filter, specified as a real vector with values in the range (-1,1).

Data Types: single | double

Output Arguments

AllpassNum — Numerator of mapping filter

complex-valued vector

Numerator of the mapping filter, returned as a complex-valued vector.

Data Types: double
Complex Number Support: Yes

AllpassDen — Denominator of mapping filter

complex-valued vector

Denominator of the mapping filter, returned as a complex-valued vector.

Data Types: double
Complex Number Support: Yes

More About

Complex Bandpass to Complex Bandpass Frequency Transformation

Complex bandpass to complex bandpass frequency transformation effectively places two features of an original filter, located at frequencies W_o1 and W_o2, at the required target frequency locations W_t1 and W_t2. It is assumed that W_t2 is greater than W_t1. In most of the cases the features selected for the transformation are the band edges of the filter passbands. In general it is possible to select any feature; e.g., the stopband edge, the DC, the deep minimum in the stopband, or other ones.

Frequencies must be normalized to be between -1 and 1, with 1 corresponding to half the sample rate.

Relative positions of other features of an original filter do not change in the target filter. This means that it is possible to select two features of an original filter, F₁ and F₂, with F₁ preceding F₂. Feature F₁ will still precede F₂ after the transformation. However, the distance between F₁ and F₂ will not be the same before and after the transformation.

This transformation can also be used for transforming other types of filters; e.g., complex notch filters or resonators can be repositioned at two distinct desired frequencies at any place around the unit circle. This is very attractive for adaptive systems.

Version History

Introduced in R2011a
