Specify Custom Weight Initialization Function

This example shows how to create a custom He weight initialization function for convolution layers followed by leaky ReLU layers.

The He initializer for convolution layers followed by leaky ReLU layers samples from a normal distribution with zero mean and variance σ2=2(1+a2)n, where a is the scale of the leaky ReLU layer that follows the convolution layer and n = FilterSize(1) * FilterSize(2) * NumChannels.

For learnable layers, when setting the options 'WeightsInititializer', 'InputWeightsInitializer', or 'RecurrentWeightsInitializer' to 'he', the software uses a=0. To set a to different value, create a custom function to use as a weights initializer.

Load Data

Load the digit sample data as an image datastore. The imageDatastore function automatically labels the images based on folder names.

digitDatasetPath = fullfile(matlabroot,'toolbox','nnet','nndemos', ...
imds = imageDatastore(digitDatasetPath, ...
    'IncludeSubfolders',true, ...

Divide the data into training and validation data sets, so that each category in the training set contains 750 images, and the validation set contains the remaining images from each label. splitEachLabel splits the datastore into two new datastores for training and validation.

numTrainFiles = 750;
[imdsTrain,imdsValidation] = splitEachLabel(imds,numTrainFiles,'randomize');

Define Network Architecture

Define the convolutional neural network architecture:

  • Image input layer size of [28 28 1], the size of the input images

  • Three 2-D convolution layers with filter size 3 and with 8, 16, and 32 filters respectively

  • A leaky ReLU layer following each convolutional layer

  • Fully connected layer of size 10, the number of classes

  • Softmax layer

For each of the convolutional layers, set the weights initializer to the leakyHe function. The leakyHe function, listed at the end of the example, takes the input sz (the size of the layer weights) and returns an array of weights given by the He Initializer for convolution layers followed by a leaky ReLU layer.

inputSize = [28 28 1];
numClasses = 10;

layers = [

Train Network

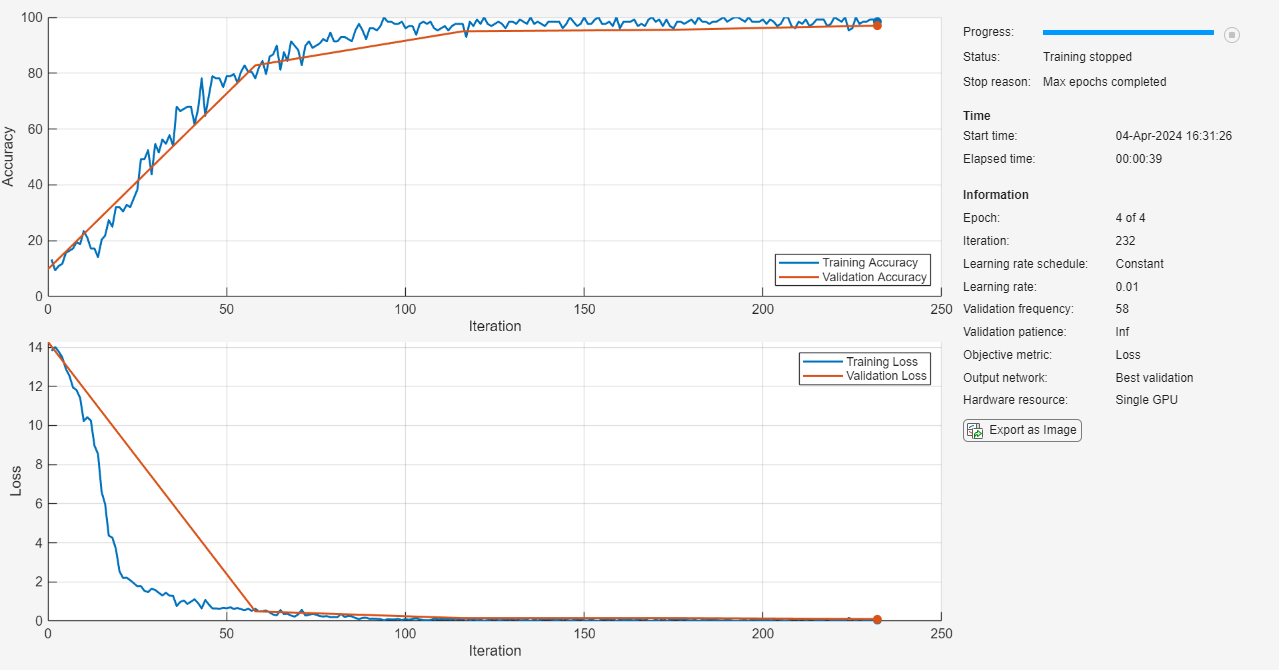

Specify the training options and train the network. Train for four epochs. To prevent the gradients from exploding, set the gradient threshold to 2. Validate the network once per epoch. Display the training progress in a plot and monitor the accuracy.

Train the neural network using the trainnet function. For classification, use cross-entropy loss. By default, the trainnet function uses a GPU if one is available. Training on a GPU requires a Parallel Computing Toolbox™ license and a supported GPU device. For information on supported devices, see GPU Computing Requirements (Parallel Computing Toolbox). Otherwise, the trainnet function uses the CPU. To specify the execution environment, use the ExecutionEnvironment training option.

maxEpochs = 4;
miniBatchSize = 128;
numObservations = numel(imdsTrain.Files);
numIterationsPerEpoch = floor(numObservations / miniBatchSize);

options = trainingOptions("sgdm", ...
    MaxEpochs=maxEpochs, ...
    MiniBatchSize=miniBatchSize, ...
    GradientThreshold=2, ...
    ValidationData=imdsValidation, ...
    ValidationFrequency=numIterationsPerEpoch, ...
    Verbose=false, ...
    Metrics="accuracy", ...

[netDefault,infoDefault] = trainnet(imdsTrain,layers,"crossentropy",options);

Test Network

Classify the validation images. To make predictions with multiple observations, use the minibatchpredict function. To convert the prediction scores to labels, use the scores2label function. The minibatchpredict function automatically uses a GPU if one is available. Using a GPU requires a Parallel Computing Toolbox™ license and a supported GPU device. For information on supported devices, see GPU Computing Requirements. Otherwise, the function uses the CPU.

Calculate the classification accuracy.

scores = minibatchpredict(netDefault,imdsValidation);
classNames = categories(imdsTrain.Labels);
YPred = scores2label(scores,classNames);
YValidation = imdsValidation.Labels;
accuracy = mean(YPred == YValidation)
accuracy = 0.9700

Specify Additional Options

The leakyHe function accepts the optional input argument scale. To input extra variables into the custom weight initialization function, specify the function as an anonymous function that accepts a single input sz. To do this, replace instances of @leakyHe with @(sz) leakyHe(sz,scale). Here, the anonymous function accepts the single input argument sz only and calls the leakyHe function with the specified scale input argument.

Create and train the same network as before with the following changes:

  • For the leaky ReLU layers, specify a scale multiplier of 0.01.

  • Initialize the weights of the convolutional layers with the leakyHe function and also specify the scale multiplier.

scale = 0.01;

layers = [
    convolution2dLayer(3,8,'WeightsInitializer',@(sz) leakyHe(sz,scale))
    convolution2dLayer(3,16,'WeightsInitializer',@(sz) leakyHe(sz,scale))
    convolution2dLayer(3,32,'WeightsInitializer',@(sz) leakyHe(sz,scale))

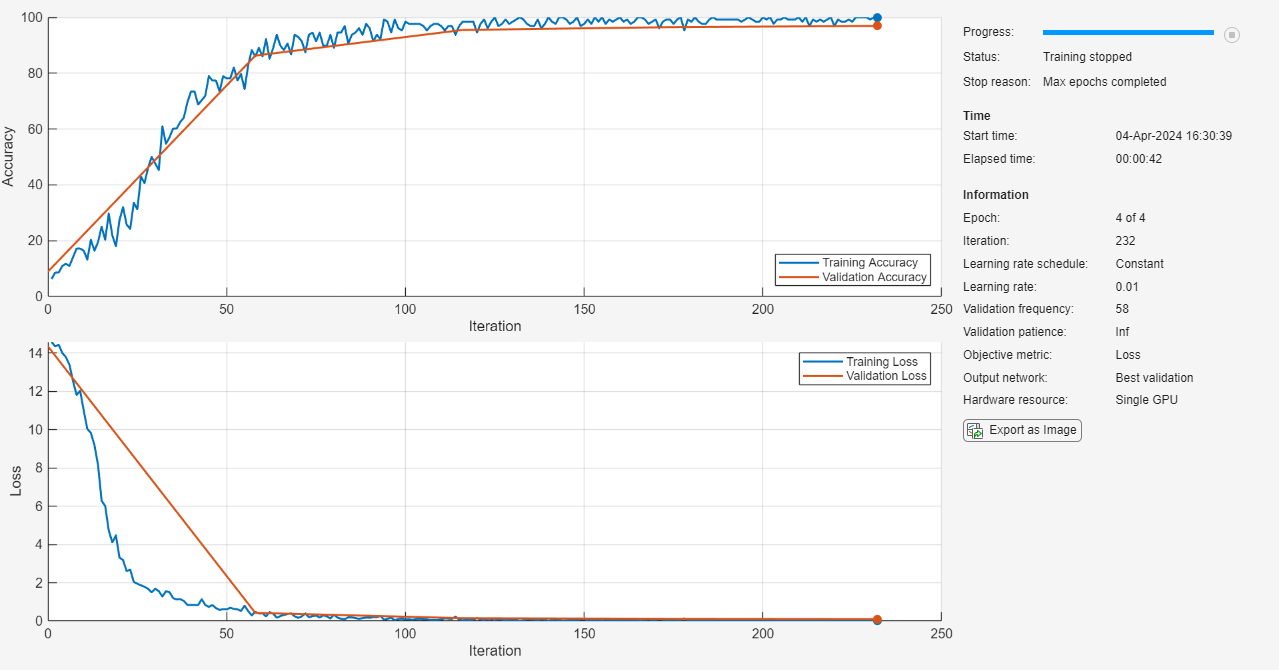

[netCustom,infoCustom] = trainnet(imdsTrain,layers,"crossentropy",options);

Classify the validation data and calculate the classification accuracy.

scores = minibatchpredict(netCustom,imdsValidation);
YPred = scores2label(scores,classNames);
accuracy = mean(YPred == YValidation)
accuracy = 0.9736

Compare Results

Extract the validation accuracy from the information output from the trainnet function.

validationAccuracy = [
    infoDefault.ValidationHistory.Accuracy, ...

For each of the networks, plot the epoch numbers against the validation accuracy.

epochs = 0:maxEpochs;
title("Validation Accuracy")
ylabel("Validation Accuracy")
legend(["Leaky He (Default)" "Leaky He (Custom)"],'Location','southeast')

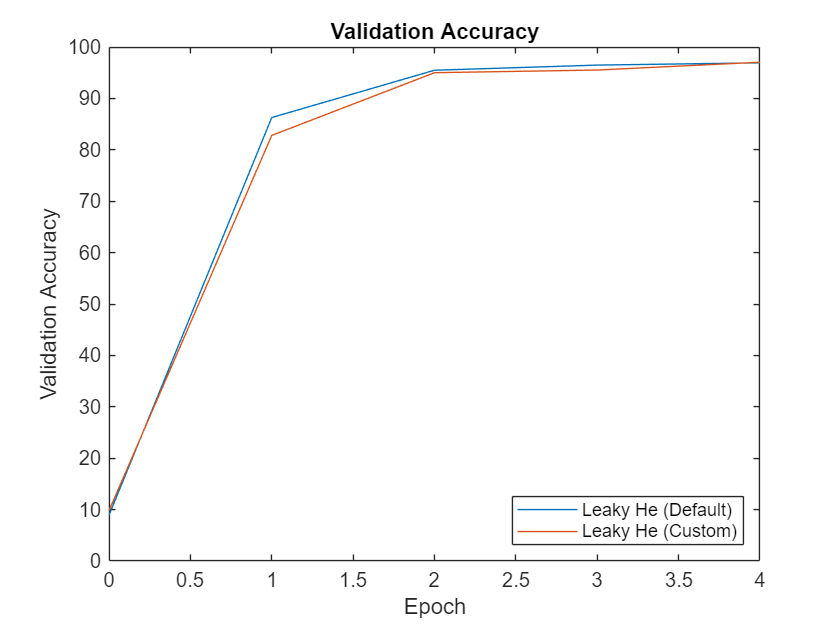

Figure contains an axes object. The axes object with title Validation Accuracy, xlabel Epoch, ylabel Validation Accuracy contains 2 objects of type line. These objects represent Leaky He (Default), Leaky He (Custom).

Custom Weight Initialization Function

The leakyHe function takes the input sz (the size of the layer weights) and returns an array of weights given by the He Initializer for convolution layers followed by a leaky ReLU layer. The function also accepts the optional input argument scale which specifies the scale multiplier for the leaky ReLU layer.

function weights = leakyHe(sz,scale)

% If not specified, then use default scale = 0.1
if nargin < 2
    scale = 0.1;

filterSize = [sz(1) sz(2)];
numChannels = sz(3);
numIn = filterSize(1) * filterSize(2) * numChannels;

varWeights = 2 / ((1 + scale^2) * numIn);
weights = randn(sz) * sqrt(varWeights);



  1. He, Kaiming, Xiangyu Zhang, Shaoqing Ren, and Jian Sun. "Delving deep into rectifiers: Surpassing human-level performance on imagenet classification." In Proceedings of the IEEE international conference on computer vision, pp. 1026-1034. 2015.
