modalsum
Syntax
Description
Examples
Retain Subset of Modal Components
This example shows how to retain only a subset of modal components from a modal decomposition. In this example you perform modal decomposition and retain the modes with a relative DC contribution of more than 10% by summing those components.
Create a random states-space model with order 10.
rng(0) G = rss(10,2,2);
Obtain the modal decomposition. Also, obtain the info
output argument to store the modal information.
[H,H0,info] = modalsep(G); size(H)
9x1 array of state-space models. Each model has 2 outputs, 2 inputs, and between 1 and 2 states.
The decomposition returns nine modal components.
To obtain the subset of modal components with a relative DC contribution of more than 10%, use the DCGain
property of the info
output argument.
Hsub = H(:,:,(info.DCGain>0.1)); size(Hsub);
4x1 array of state-space models. Each model has 2 outputs, 2 inputs, and 1 states.
The subset contains four modal components. Obtain the sum of modal components using modalsum
.
Gr = modalsum(Hsub,H0); order(Gr)
ans = 4

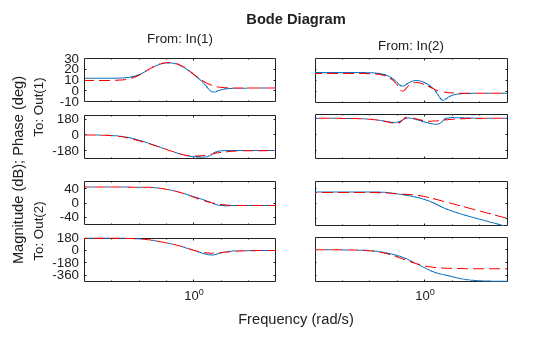

Compare the Bode responses of the two models.
bode(G,Gr,"r--")
Input Arguments
H
— Modal components
model array
Modal components, specified as an array of models. Typically, you obtain such an
array using modalsep
.
H0
— Static gain
matrix | ss
object
Static gain, specified as a matrix value or a static ss
object.
Output Arguments
G
— Sum of modal components
ss
| tf
| zpk
Sum of modal components, returned as model of same type as models in the array
H
.
Version History
Introduced in R2023b
