Modellierung von HF-Komponenten
Anwenden von HF-Störungen und Korrekturen. Modellieren von HF-Frontend-Designs mit Verstärkern, Mixern und digitaler Vorverzerrung (DPD).
Apps
Wireless Waveform Generator | Create, impair, visualize, and export modulated waveforms |
Funktionen
fspl | Free space path loss |
frequencyOffset | Apply frequency offset to input signal (Seit R2022a) |
iqimbal | Apply I/Q imbalance to input signal |
iqcoef2imbal | Convert compensator coefficient to amplitude and phase imbalance |
iqimbal2coef | Convert I/Q imbalance to compensator coefficient |
srmdelay | Compute delay introduced by Sample-Rate Match block (Seit R2022b) |
plotPhaseNoiseFilter | Plot response of phase noise filter block |
Objekte
comm.MemorylessNonlinearity | Apply memoryless nonlinearity to complex baseband signal |
comm.MultibandCombiner | Frequency-shift and combine signals (Seit R2021b) |
comm.PhaseFrequencyOffset | Apply phase and frequency offsets to input signal |
comm.PhaseNoise | Apply phase noise to baseband signal |
comm.SampleRateOffset | Apply sample rate offset to signal (Seit R2021b) |
comm.ThermalNoise | Add thermal noise to signal |
comm.AGC | Adaptively adjust gain for constant signal level output |
comm.CoarseFrequencyCompensator | Compensate for frequency offset of PAM, PSK, or QAM signal |
dsp.DCBlocker | Block DC component (offset) from input signal |
comm.DPD | Digital predistorter |
comm.DPDCoefficientEstimator | Estimate memory-polynomial coefficients for digital predistortion |
comm.IQImbalanceCompensator | Compensate for IQ imbalance |
Blöcke
Complex Phase Difference | Phase difference between two complex signals |
Complex Phase Shift | Apply complex phase shift to complex signal |
Free Space Path Loss | Apply free space path loss to complex signal |
I/Q Imbalance | Apply I/Q imbalances to complex signal |
Memoryless Nonlinearity | Apply amplifier models to complex baseband signal |
Multiband Combiner | Frequency-shift and combine signals (Seit R2021b) |
Phase/Frequency Offset | Apply phase and frequency offsets to complex baseband signal |
Phase Noise | Apply receiver phase noise to complex baseband signal |
Receiver Thermal Noise | Apply receiver thermal noise to complex signal |
Sample-Rate Match | Upsample two signals to common rate (Seit R2022b) |
Sample Rate Offset | Apply sample rate offset to input signal (Seit R2022b) |
AGC | Adaptively adjust gain for constant signal-level output |
Coarse Frequency Compensator | Compensate for carrier frequency offset in PAM, PSK, or QAM |
DC Blocker | Block DC component |
DPD | Digital predistorter |
DPD Coefficient Estimator | Estimate memory-polynomial coefficients for digital predistortion |
I/Q Compensator Coefficient to Imbalance | Convert compensator coefficient into amplitude and phase imbalance |
I/Q Imbalance Compensator | Compensate for imbalance between in-phase and quadrature components |
I/Q Imbalance to Compensator Coefficient | Converts amplitude and phase imbalance into I/Q compensator coefficient |
Complex Phase Difference | Phase difference between two complex signals |
Complex Phase Shift | Apply complex phase shift to complex signal |
Themen
- Top-Down Design of RF Receiver
Design an RF receiver for a ZigBee®-like application using a top-down methodology.
- Visualize RF Impairments
Apply various RF impairments to a QAM signal.
Enthaltene Beispiele
Simulate and Verify Power Amplifier Backoff
Use backoff to scale a signal prior to inputting it to a table-based power amplifier.
RF Noise Modeling
Use the RF Blockset™ Circuit Envelope library to simulate noise and calculate noise power.
Impact of Thermal Noise on Communication System Performance
Use the RF Blockset Circuit Envelope library to model thermal noise in a super-heterodyne RF receiver and measure its effects on a communications system noise figure (NF) and bit error rate (BER).
Architectural Design of a Low IF Receiver System
Use the RF Blockset Circuit Envelope library to simulate the performance of a Low IF architecture with RF impairments.
Adjacent and Co-Channel Interference
Use PSK-modulated signals to show the effects of adjacent and co-channel interference on a transmitted signal.

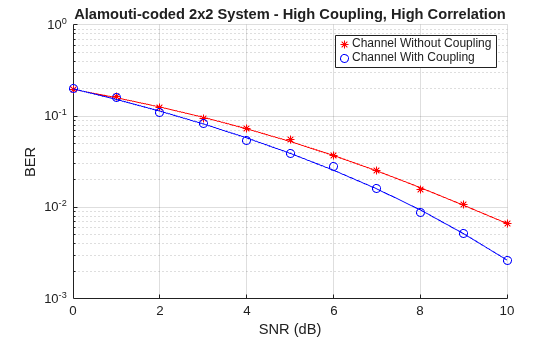

OSTBC Transmission with Antenna Coupling
Simulate the effects of antenna mutual coupling on the performance of an orthogonal space-time block code (OSTBC) transmission over a multiple-input multiple-output (MIMO) channel.

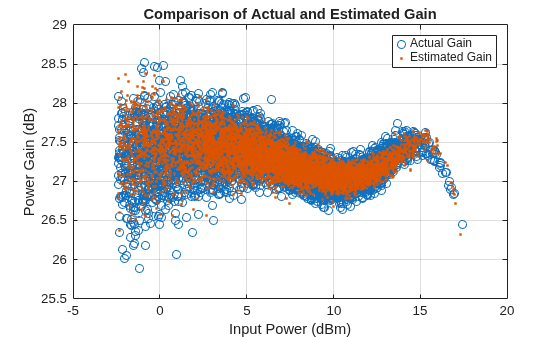

Power Amplifier Characterization
Characterize a power amplifier using measured input and output signals of an NXP Airfast PA.
Digital Predistortion to Compensate for Power Amplifier Nonlinearities
Use digital predistortion (DPD) in a transmitter to offset the effects of nonlinearities in a power amplifier.
Impact of RF Effects on Communication System Performance
Model thermal noise, phase noise, and nonlinearity impairments of an RF transceiver in Simulink®.

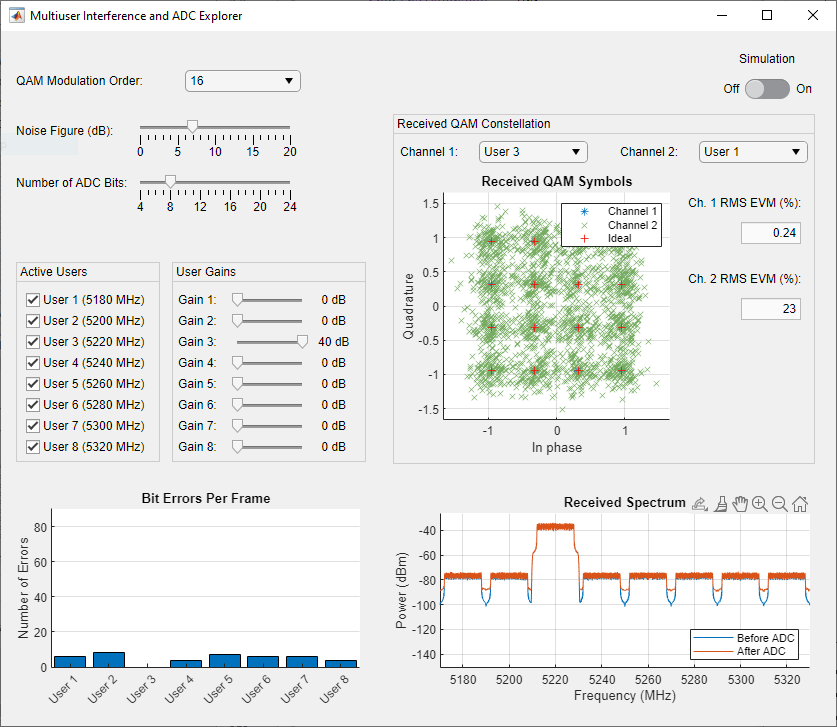

Effect of a High-Power Interferer on ADC Performance
Effect of a high-power in-band or out-of-band interferer on the performance of a communications system with an analog-to-digital converter (ADC).
