Complex Phase Difference

Phase difference between two complex signals

•

Libraries:
Communications Toolbox / Utility Blocks

Description

The Complex Phase Difference block computes the phase difference in radians between the second input signal and the first input signal. The elements of the output are between -π and π. This block independently processes each pair of corresponding elements.

Examples

Calculate Complex Phase Difference Between QPSK Modulated Signals

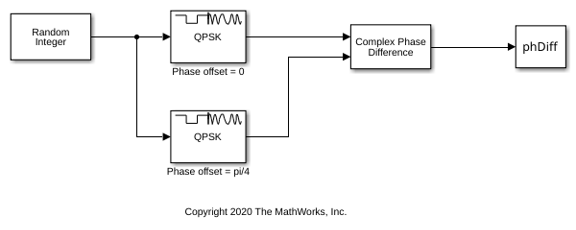

The model generates random integers and applies QPSK modulation. The first QPSK modulator has a phase offset of 0, while the second has a pi/4 phase offset.

The Complex Phase Difference block determines the phase difference. The data is passed to the workspace by using the To Workspace (Simulink) block.

Run the model and display the calculated phase difference.

The calculated phase difference is: -0.7854

The phase difference from the second input to the first input is equal to -pi/4 as expected.

Apply Complex Phase Shift to QPSK Signal

The model applies QPSK modulation, and then applies a phase shift to a signal. Calculate the phase difference and plot the constellation of the signal before and after the phase shift.

The Complex Phase Shift block applies a 30 degree phase shift to a QPSK modulated signal. The Complex Phase Difference block determines the phase difference. A To Workspace (Simulink) block passes the calculated phase difference to the workspace. A Constellation Diagram block plots the signal constellation before and after the phase shift.

The phase difference is calculated from the second input to the first input.

The calculated phase difference is: -30.0000

Ports

Input

In1 — First input signal

scalar | column vector | matrix

First input signal, specified as a scalar, column vector, or matrix. If both input signals are nonscalar, they must be the same dimension.

Note

This block processes complex signals. Real values at the input ports are type cast to complex values with +j0 complex components.

Data Types: double | single
Complex Number Support: Yes

In2 — Second input signal

scalar | column vector | matrix

Second input signal, specified as a scalar, column vector, or matrix. If both input signals are nonscalar, they must be the same dimension. In2 must be the same data type as In1.

Note

This block processes complex signals. Real values at the input ports are type cast to complex values with +j0 complex components.

Data Types: double | single

Output

Out1 — Phase shift difference

scalar | column vector | matrix

Phase shift difference in radians, returned as a scalar, column vector, or matrix. If either input signal is nonscalar, the output signal dimension matches the dimension of the nonscalar input signal. The output is the phase difference between the second input signal and the first input signal. The elements of the output signal are between -π and π and are the same data type as the input signals.

Block Characteristics

Data Types	double | single
Multidimensional Signals	no
Variable-Size Signals	no

Extended Capabilities

C/C++ Code Generation
Generate C and C++ code using Simulink® Coder™.

Version History

Introduced before R2006a
