raytrace

Display or compute RF propagation rays

Since R2019b

Description

The raytrace function plots or computes propagation paths by using ray tracing with surface geometry defined by the Map argument. The function color-codes each propagation path according to the received power (dBm) or path loss (dB) from the transmitter site to the receiver site. The ray tracing analysis includes surface reflections and edge diffractions, but does not include effects from corner diffraction, refraction, or diffuse scattering. This function supports frequencies from 100 MHz to 100 GHz. For more information, see Choose a Propagation Model.

example

raytrace(tx,rx) displays the propagation paths from the transmitter site tx to the receiver site rx in the current Site Viewer. By default, the function uses the shooting and bouncing rays (SBR) method, finds paths with up to two reflections and zero diffractions, and discards paths that are more than 40 dB weaker than the strongest path.

example

raytrace(tx,rx,propmodel) finds propagation paths using the ray tracing propagation model propmodel. Ray tracing propagation models enable you to specify properties such as the maximum number of reflections and diffractions, path loss thresholds, and building and terrain materials. Create a ray tracing propagation model by using the propagationModel function.

raytrace(___,Name=Value) specifies options using one or more name-value arguments, in addition to any combination of inputs from the previous syntaxes.

rays = raytrace(___) returns the propagation paths in rays.

Examples

collapse all

Show reflected propagation paths in Chicago using a ray tracing propagation model.

Launch Site Viewer with buildings in Chicago. For more information about the OpenStreetMap® file, see [1].

viewer = siteviewer(Buildings="chicago.osm");

Create a transmitter site and a receiver site near two different buildings.

tx = txsite(Latitude=41.8800, ...
    Longitude=-87.6295, ...
    TransmitterFrequency=2.5e9);
show(tx)
rx = rxsite(Latitude=41.8813452, ...
    Longitude=-87.629771, ...
    AntennaHeight=30);
show(rx)

Show the obstruction to the line-of-sight path.

los(tx,rx)

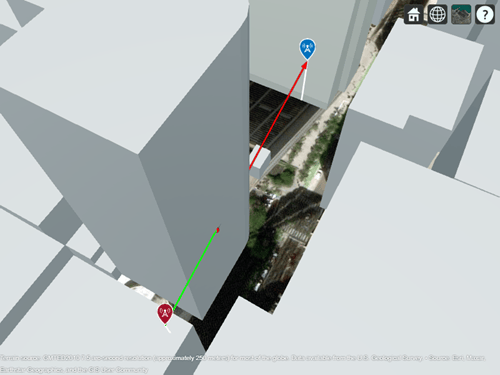

Obstructed line-of-sight path from the transmitter site to the receiver site. The path is green from the transmitter to the building, and red from the building to the receiver.

Display propagation paths with reflections. By default, the raytrace function uses the SBR method and calculates propagation paths with up to two reflections.

raytrace(tx,rx)

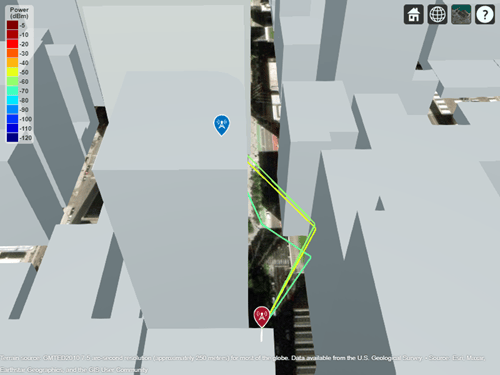

Three propagation paths from the transmitter site to the receiver site

Appendix

[1] The OpenStreetMap file is downloaded from https://www.openstreetmap.org, which provides access to crowd-sourced map data all over the world. The data is licensed under the Open Data Commons Open Database License (ODbL), https://opendatacommons.org/licenses/odbl/.

Launch Site Viewer with buildings in Chicago. For more information about the OpenStreetMap® file, see [1].

viewer = siteviewer(Buildings="chicago.osm");

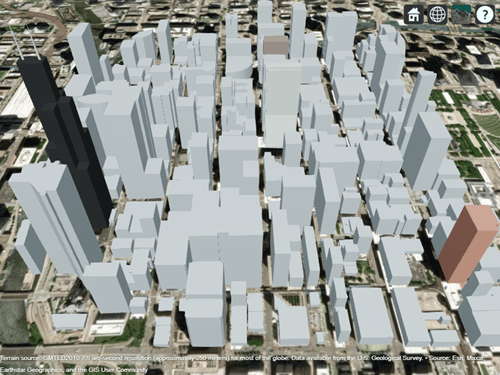

Site Viewer with buildings

Create a transmitter site on a building.

tx = txsite(Latitude=41.8800, ...
    Longitude=-87.6295, ...
    TransmitterFrequency=2.5e9);

Create a receiver site near another building.

rx = rxsite(Latitude=41.881352, ...
    Longitude=-87.629771, ...
    AntennaHeight=30);

Create a ray tracing propagation model, which MATLAB® represents using a RayTracing object. By default, the propagation model uses the SBR method and finds propagation paths with up to two surface reflections.

pm = propagationModel("raytracing");

Calculate the signal strength using the receiver site, the transmitter site, and the propagation model.

ssTwoReflections = sigstrength(rx,tx,pm)
ssTwoReflections = -54.3151

Plot the propagation paths.

raytrace(tx,rx,pm)

Three propagation paths from the transmitter site to the receiver site

Change the RayTracing object to find paths with up to 5 reflections. Then, recalculate the signal strength.

pm.MaxNumReflections = 5;
ssFiveReflections = sigstrength(rx,tx,pm)
ssFiveReflections = -53.3965

By default, RayTracing objects use concrete terrain materials and building materials derived from the OpenStreetMap file. When the OpenStreetMap file does not specify materials, the model uses concrete. Change the building and terrain material types to model perfect electrical conductors.

pm.TerrainMaterial = "perfect-reflector";
pm.BuildingsMaterial = "perfect-reflector";

ssPerfect = sigstrength(rx,tx,pm)
ssPerfect = -38.9334

Plot the propagation paths for the updated propagation model.

raytrace(tx,rx,pm)

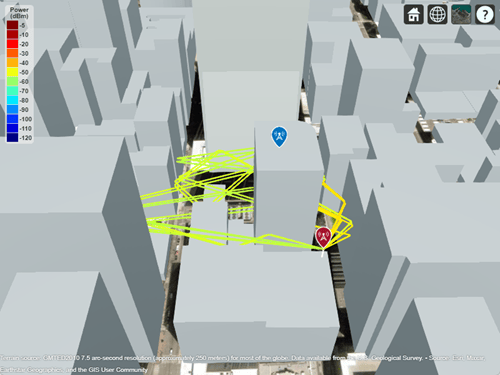

Additional propagation paths from the transmitter site to the receiver site

Appendix

[1] The OpenStreetMap file is downloaded from https://www.openstreetmap.org, which provides access to crowd-sourced map data all over the world. The data is licensed under the Open Data Commons Open Database License (ODbL), https://opendatacommons.org/licenses/odbl/.

Launch Site Viewer with buildings in Hong Kong. For more information about the OpenStreetMap® file, see [1].

viewer = siteviewer(Buildings="hongkong.osm");

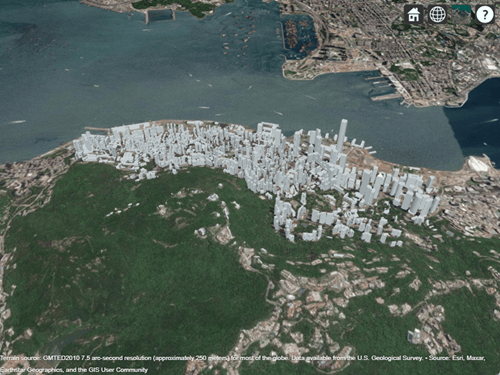

Site Viewer with buildings

Create transmitter and receiver sites that model a small cell scenario in a dense urban environment.

tx = txsite(Name="Small cell transmitter", ...
    Latitude=22.2789, ...
    Longitude=114.1625, ...
    AntennaHeight=10, ...
    TransmitterPower=5, ...
    TransmitterFrequency=28e9);
rx = rxsite(Name="Small cell receiver", ...
    Latitude=22.2799, ...
    Longitude=114.1617, ...
    AntennaHeight=1);

Create a ray tracing propagation model, which MATLAB represents using a RayTracing object. Configure the model to use a low average number of degrees between launched rays, to find paths with up to 5 path reflections, and to use building and terrain material types that model perfect electrical conductors. By default, the model uses the SBR method.

pm = propagationModel("raytracing", ...
    MaxNumReflections=5, ...
    AngularSeparation="low", ...
    BuildingsMaterial="perfect-reflector", ...
    TerrainMaterial="perfect-reflector");

Visualize the propagation paths and calculate the corresponding path losses.

raytrace(tx,rx,pm,Type="pathloss")
raysPerfect = raytrace(tx,rx,pm,Type="pathloss");
plPerfect = [raysPerfect{1}.PathLoss]
plPerfect = 1×13

  104.2656  103.5699  112.0092  109.3137  111.2840  111.9979  112.4416  108.1505  111.2825  111.3905  117.7506  116.5906  117.7638

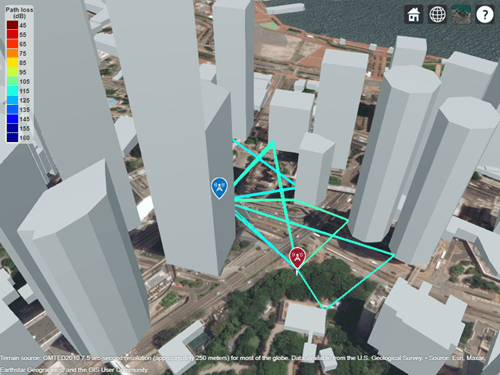

Propagation paths from the transmitter site to the receiver site

Set the building and terrain material types to glass and concrete, respectively. Then, revisualize the propagation paths and recalculate the corresponding path losses. The model finds one fewer path because, by default, the model discards paths that are more than 40 decibels weaker than the strongest path. The first path loss value does not change because it corresponds to the line-of-sight propagation path.

pm.BuildingsMaterial = "glass";
pm.TerrainMaterial = "concrete";

raytrace(tx,rx,pm,Type="pathloss")
raysMtrls = raytrace(tx,rx,pm,Type="pathloss");
plMtrls = [raysMtrls{1}.PathLoss]
plMtrls = 1×12

  104.2656  106.1249  119.2135  121.2269  122.3753  121.5228  126.8929  124.1284  122.7844  127.4910  138.9922  140.4998

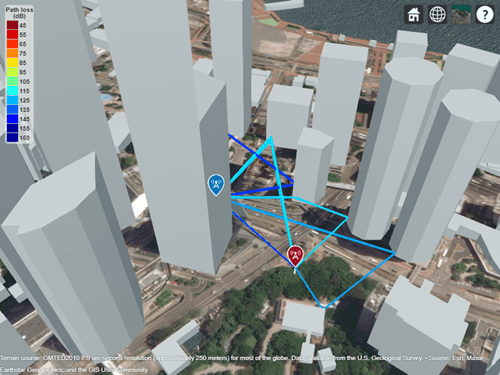

Updated propagation paths from the transmitter site to the receiver site

Incorporate atmospheric loss by adding rain and gas propagation models to the ray tracing model. Then, revisualize the propagation paths and recalculate the corresponding path losses.

pm = pm + propagationModel("rain") + propagationModel("gas");

raytrace(tx,rx,pm,Type="pathloss")
raysAtmospheric = raytrace(tx,rx,pm,Type="pathloss");
plAtmospheric = [raysAtmospheric{1}.PathLoss]
plAtmospheric = 1×12

  105.3245  107.1846  121.7988  123.1224  124.9622  124.1119  129.6107  126.0247  125.3748  130.2090  142.9753  144.4831

Updated propagation paths from transmitter site to receiver site

Appendix

[1] The OpenStreetMap file is downloaded from https://www.openstreetmap.org, which provides access to crowd-sourced map data all over the world. The data is licensed under the Open Data Commons Open Database License (ODbL), https://opendatacommons.org/licenses/odbl/.

This example shows how to:

  • Scale an STL file so that the model uses units of meters.

  • View the scaled model in Site Viewer.

  • Use ray tracing to calculate and display propagation paths from a transmitter to a receiver.

While Cartesian txsite and rxsite objects require position coordinates in meters, STL files can use other units. If your STL file does not use meters, you must scale the model before importing it into Site Viewer.

Import and view an STL file. The file models a small conference room with one table and four chairs. Scale the model by specifying the SceneModelScale name-value argument. For this example, assume that the conversion factor from the STL units to meters is 0.9.

viewer = siteviewer(SceneModel="conferenceroom.stl",SceneModelScale=0.9);

Site Viewer with conference room model

Before R2023b: Read the model into a triangulation object by using the stlread function, scale the coordinates and create a new triangulation object, and then read the new triangulation object into Site Viewer.

Create and display a transmitter site close to the wall and a receiver site under the table. Specify the position using Cartesian coordinates in meters.

tx = txsite("cartesian", ...
    AntennaPosition=[-1.25; -1.25; 1.9], ...
    TransmitterFrequency=2.8e9);
show(tx,ShowAntennaHeight=false)

rx = rxsite("cartesian", ...
    AntennaPosition=[0.3; 0.2; 0.5]);
show(rx,ShowAntennaHeight=false)

Pan by left-clicking, zoom by right-clicking or by using the scroll wheel, and rotate the visualization by clicking the middle button and dragging or by pressing Ctrl and left-clicking and dragging.

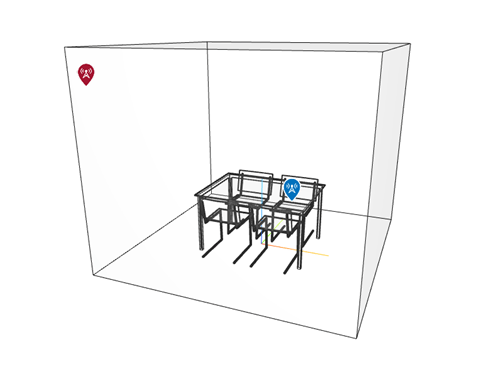

The same Site Viewer with a transmitter site and receiver site

Create a ray tracing propagation model for Cartesian coordinates, which MATLAB represents using a RayTracing object. Calculate rays that have up to 1 reflection and 1 diffraction. Set the surface material to wood. By default, the model uses the SBR method.

pm = propagationModel("raytracing", ...
    CoordinateSystem="cartesian", ....
    MaxNumReflections=1, ...
    MaxNumDiffractions=1, ...
    SurfaceMaterial="wood");

Calculate the propagation paths and return the result as a cell array of comm.Ray objects. Extract and plot the rays.

r = raytrace(tx,rx,pm);
r = r{1};
plot(r)

View information about a ray by clicking on it.

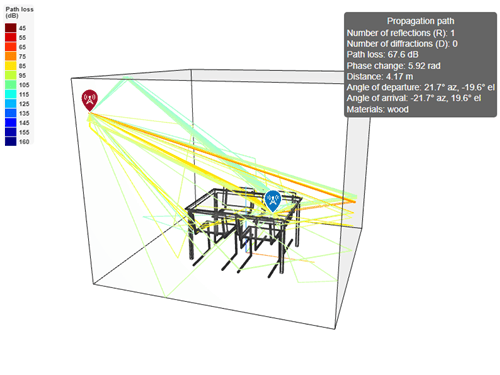

Propagation paths between the transmitter site and receiver site. A legend shows information about a propagation path.

Since R2023b

Suppose you have a glTF™ file that models a sample city with several buildings and road intersections. Import and view the glTF file. Site Viewer displays the model using the colors and textures stored in the file.

viewer = siteviewer(SceneModel="samplecity.gltf",ShowEdges=false);

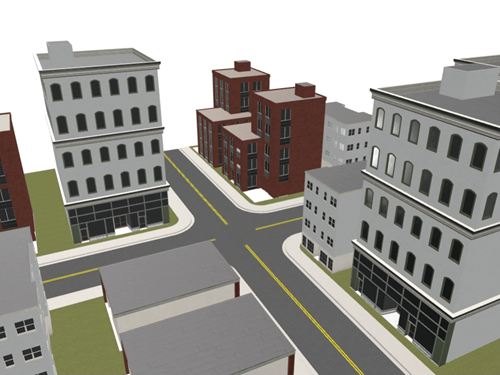

A city intersection with buildings, a fountain, foliage, and labeled roads

Site Viewer assigns materials to the surfaces in the scene by matching each material name stored in the file with the name of a supported material. View a subset of the materials and matched materials. By default, ray tracing analysis functions use the materials stored in the MatchedCatalogMaterial variable.

viewer.Materials(1:5,:)
ans =

  5×2 table

                  Material                   MatchedCatalogMaterial
    _____________________________________    ______________________

    "Concrete_WhiteEmissive1_1"                    "concrete"
    "WoodFloor_Emissive2"                          "wood"
    "Bricks7"                                      "brick"
    "Metal_Emissive1"                              "metal"
    "Downtown_30mx15m_01_5storeyLOD_MAT1"          ""

Create a transmitter site and a receiver site on opposite sides of a fountain. Specify the positions using Cartesian coordinates in meters.

tx = txsite("cartesian",AntennaPosition=[36; 34.5; 1]);
rx = rxsite("cartesian",AntennaPosition=[44; 28; 1]);

Create a ray tracing propagation model for Cartesian coordinates, which MATLAB® represents by using a RayTracing object. Configure the model to calculate rays that have up to one reflection.

pm = propagationModel("raytracing",CoordinateSystem="cartesian", ...
    MaxNumReflections=1);

Calculate the propagation paths and return the result as a cell array of comm.Ray objects. Extract the propagation paths from the cell array.

rays = raytrace(tx,rx,pm);
rays = rays{1};

Display the transmitter site, the receiver site, and the propagation paths.

show(tx)
show(rx)
plot(rays)

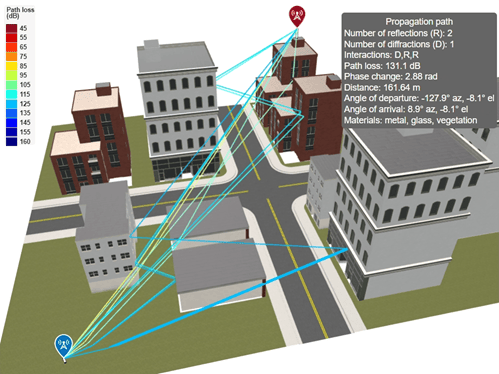

View information about a path by clicking it. The information box displays the interaction material.

Three propagation paths. An information box shows information about one of the paths. The interaction material for the path is water.

You can also get information about a propagation path by querying the Interactions property of the comm.Ray object. View the interaction material for the second ray.

rays(2).Interactions.MaterialName
ans =

    "concrete"

Input Arguments

collapse all

Transmitter site, specified as a txsite object or an array of txsite objects. If you specify an array, then the function plots propagation paths from each transmitter to each receiver site.

Receiver site, specified as an rxsite object or an array of rxsite objects. If you specify an array, then the function plots propagation paths from each transmitter to each receiver site.

Ray tracing propagation model, specified as "raytracing" or as a RayTracing object. The default is "raytracing", which uses the SBR method, finds paths with up to two reflections and zero diffractions, and discards paths that are more than 40 dB weaker than the strongest path.

Create a RayTracing object by using the propagationModel function. RayTracing objects enable you to specify properties such as the ray tracing method, the maximum number of reflections and diffractions, path loss thresholds, and building and terrain materials.

For information about the differences between ray tracing methods, see Choose a Propagation Model.

Data Types: char | string

Name-Value Arguments

Specify optional pairs of arguments as Name1=Value1,...,NameN=ValueN, where Name is the argument name and Value is the corresponding value. Name-value arguments must appear after other arguments, but the order of the pairs does not matter.

Example: raytrace(tx,rx,Type="pathloss") color-codes paths based on path loss.

Before R2021a, use commas to separate each name and value, and enclose Name in quotes.

Example: raytrace(tx,rx,"Type","pathloss") color-codes paths based on path loss.

Type of quantity to plot, specified as one of these options:

  • "power" — Color-code paths based on the received power in dBm.

  • "pathloss" — Color-code paths based on path loss in dB.

The function uses a modified version of the Friis transmission equation to calculate received power (in logarithmic units):

Prx=Ptx+Gtx+GrxLLtxLrx

where:

  • Prx is the received power at the receiver.

  • Ptx is the transmit power specified by the TransmitterPower property of the transmitter site.

  • Gtx is the absolute antenna gain of the transmitter site in the direction of the angle-of-departure (AoD).

  • Grx is the absolute antenna gain of the receiver site in the direction of the angle-of-arrival (AoA).

  • L is the path loss between the transmitter site and the receiver site.

  • Ltx is the system loss specified by the SystemLoss property of the transmitter site.

  • Lrx is the system loss specified by the SystemLoss property of the receiver site.

Data Types: char | string

Propagation model, specified as "raytracing" or as a RayTracing object. The default is "raytracing", which uses the SBR method, finds paths with up to two reflections and zero diffractions, and discards paths that are more than 40 dB weaker than the strongest path.

Create a RayTracing object by using the propagationModel function. RayTracing objects enable you to specify properties such as the ray tracing method, the maximum number of reflections and diffractions, path loss thresholds, and building and terrain materials.

For information about the differences between ray tracing methods, see Choose a Propagation Model.

Data Types: char | string

Color limits for the colormap, specified as a two-element numeric row vector of the form [min max].

The units and the default value depend on the value of Type:

  • "power"– Units are in dBm, and the default value is [-120 -5].

  • "pathloss"– Units are in dB, and the default value is [45 160].

The color limits indicate the values that map to the first and last colors in the colormap. The function does not plot propagation paths with values that are below the minimum color limit.

Data Types: double

Colormap for coloring the propagation paths, specified as a colormap name or as an M-by-3 array of RGB triplets that define M individual colors. For more information about colormap names, see colormap.

Data Types: char | string | double

Show color legend in Site Viewer, specified as a numeric or logical 1 (true) or 0 (false).

Map for visualization or surface data, specified as a siteviewer object, a triangulation object, a string scalar, or a character vector. Valid and default values depend on the coordinate system.

Coordinate SystemValid map valuesDefault map value
"geographic"
  • A siteviewer objecta

  • A terrain name, if the function is called with an output argument. Valid terrain names are "none", "gmted2010", or the name of the custom terrain data added using addCustomTerrain.

  • The current siteviewer object or a new siteviewer object if none are open

  • "gmted2010", if the function is called with an output

"cartesian"
  • "none"

  • A siteviewer object

  • The name of a glTF file

  • The name of an STL file

  • A triangulation object

  • "none"

a Alignment of boundaries and region labels are a presentation of the feature provided by the data vendors and do not imply endorsement by MathWorks®.

In most cases, if you specify this argument as a value other than a siteviewer or "none", then you must also specify an output argument.

Data Types: char | string

Output Arguments

collapse all

Ray configuration, returned as a M-by-N cell array of comm.Ray objects, where M is the number of transmitter sites and N is the number of receiver sites. Each cell element is a row vector of comm.Ray objects that represent the propagation paths (rays) found between the corresponding transmitter site and receiver site.

Within each row vector, the function sorts the comm.Ray objects alphabetically by the first interaction type. When the first interaction type for multiple rays is the same, the function sorts according to the second interaction type and repeats this behavior for succeeding repeated interaction types. When multiple comm.Ray objects have the same number and types of interactions in the same order, the function sorts the objects by increasing propagation distance. If a line-of-sight path exists, the function includes it as the first element.

References

[1] International Telecommunications Union Radiocommunication Sector. Effects of Building Materials and Structures on Radiowave Propagation Above About 100MHz. Recommendation P.2040. ITU-R, approved August 23, 2023. https://www.itu.int/rec/R-REC-P.2040/en.

[2] International Telecommunications Union Radiocommunication Sector. Electrical Characteristics of the Surface of the Earth. Recommendation P.527. ITU-R, approved September 27, 2021. https://www.itu.int/rec/R-REC-P.527/en.

Version History

Introduced in R2019b
