eCAL Toolbox for Simulink View ecal-toolbox on File Exchange

eCAL - enhanced Communication Abstraction Layer enables scalable, high performance interprocess communication in heterogenous networks. It is based on a publish/subscribe pattern, designed for minimal latency and high data throughput, leveraging UDP or shared memory as the transport layer for best performance. Thanks to its lightweight C/C++ API, eCAL has been integrated into Simulink as an open-source toolbox for simulation on desktop and prototyping on Speedgoat’s real-time target computers, providing a flexible and high performant multi-node communication layer.

LaneMarkerExample

Please watch a recording presentation of the original creators of eCAL at the MATLAB EXPO 2021 in this link for more information.

How to get started on desktop

  1. Install the latest eCAL Release availabe for your OS from here.
  2. To leverage UDP, please set your multicast routes as shown here.
  3. Open eCAL Monitor.
  4. Start a first MATLAB instance and run the model ecal_helloworld_snd.
  5. Start a second MATLAB instance and run the model ecal_helloworld_rec.

Please notice that the message counter of eCAL subscriber only increases if you run a matching publisher which has the same topic name and is not part of the same process.

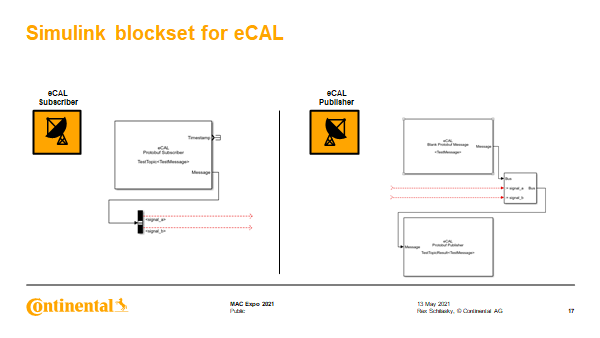

SimulinkBlockseteCAL

How to get started for real-time simulation with Simulink Real-Time™ on Speedgoat® target computers

Build and preparation steps for QNX® RTOS

  1. Initialize and check out Git submodules.
  2. Build eCAL libraries for QNX:
    • Use the script buildeCALlibs4QNX.cmd to build eCAL libraries for QNX® on Windows.
    • Use the script buildeCALlibs4QNX.sh to build eCAL libraries for QNX® on Linux.
    • Call buildeCALlibs4QNX from the object eCALutils within MATLAB.
  3. Copy the libraries from _install_qnx/lib to the target. For this purpose, create an eCALutils object and call the method installLibsOnSpeedgoat.
  4. Patch Fast-RTPS libraries with patchFastRTPSLibs from the class eCALutils.

Setting up eCAL route on QNX®

Run setMulticast4ECAL. Routes are restored to default after every target reboot. Therefore, you must add the eCAL route after booting the target, whenever you want to use eCAL with the external UDP communication.

Check eCAL communication between Speedgoat® target and host (optional)

  1. Log into QNX® over SSH and run a send sample, for instance ecal_sample_person_snd.
  2. On the host computer, open eCAL Monitor, and you should see the Speedgoat sending the messages. If you don't see them, please review your route and firewall settings on the host. Also, you may use WireShark to inspect the network communication.

Run test model on Speedgoat®

Open and use the "Run on Target" button on the Real-Time ribbon to build, deploy and run the real-time application on the Speedgoat target. If you are using the eCAL Monitor on the host, you should be able to see the incoming messages. Otherwise, please check the network configuration as shown above.

Cloud configuration

Don’t forget to set your multicast routes and make sure your hostname resolution works on all machines!

Getting started

Please read the following documentation about UDP Multicast routes at eCAL Documentation.
