New Polygon Clipping and Offsetting

Version 1.0.2.0 (13,5 KB) von Erik Johnson
Polygon Clipping and Offsetting
4.2
(12)
1,3K Downloads
Aktualisiert 9. Feb 2017

Lizenz anzeigen

Provide a front end to Angus Johnson's polygon clipping and offsetting algorithms.
Two functions are provided:

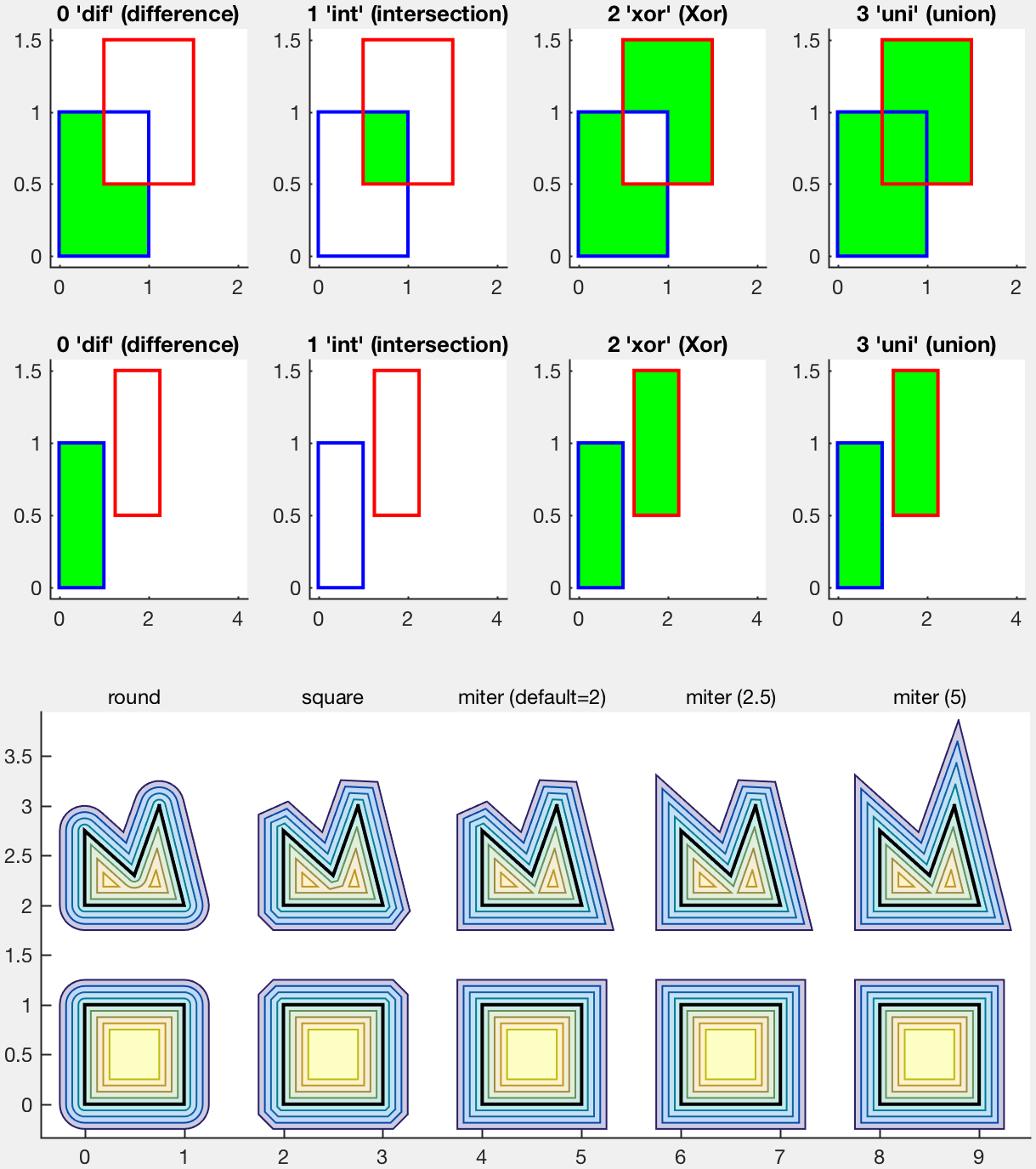

* polyclip(x1,y1,x2,y2,method) finds the difference/intersection/xor/union (depending on "method") between two polygons
* polyout(x1,y1,delta,join,joininfo) outsets a polygon by distance delta, using the given corner join method (and optional joininfo specifying more details about the corner) [corner is 'round' or 'square' or 'miter']. Insetting is accomplished with a negative delta.
See the README.txt file for where to download Angus Johnson's clipper C++ code and for compiling instructions.

Zitieren als

Erik Johnson (2026). New Polygon Clipping and Offsetting (https://de.mathworks.com/matlabcentral/fileexchange/61329-new-polygon-clipping-and-offsetting), MATLAB Central File Exchange. Abgerufen.

Kompatibilität der MATLAB-Version
Erstellt mit R2016b
Kompatibel mit allen Versionen
Plattform-Kompatibilität
Windows macOS Linux
Kategorien
Mehr zu Elementary Polygons finden Sie in Help Center und MATLAB Answers
Tags Tags hinzufügen
Quellenangaben

Inspiriert von: Polygon Clipping and Offsetting

In neuem Tab öffnen
Version Veröffentlicht Versionshinweise
1.0.2.0

Minor bug fixes (correct string specification of join type in polyclip; fix single-output calling methods of polyout and polyclip).
1.0.1.0

Added screenshot, slight updated to documentation.
1.0.0.0
