VSC based HVDC system

Version 1.2.0.0 (64,6 KB) von Awahab

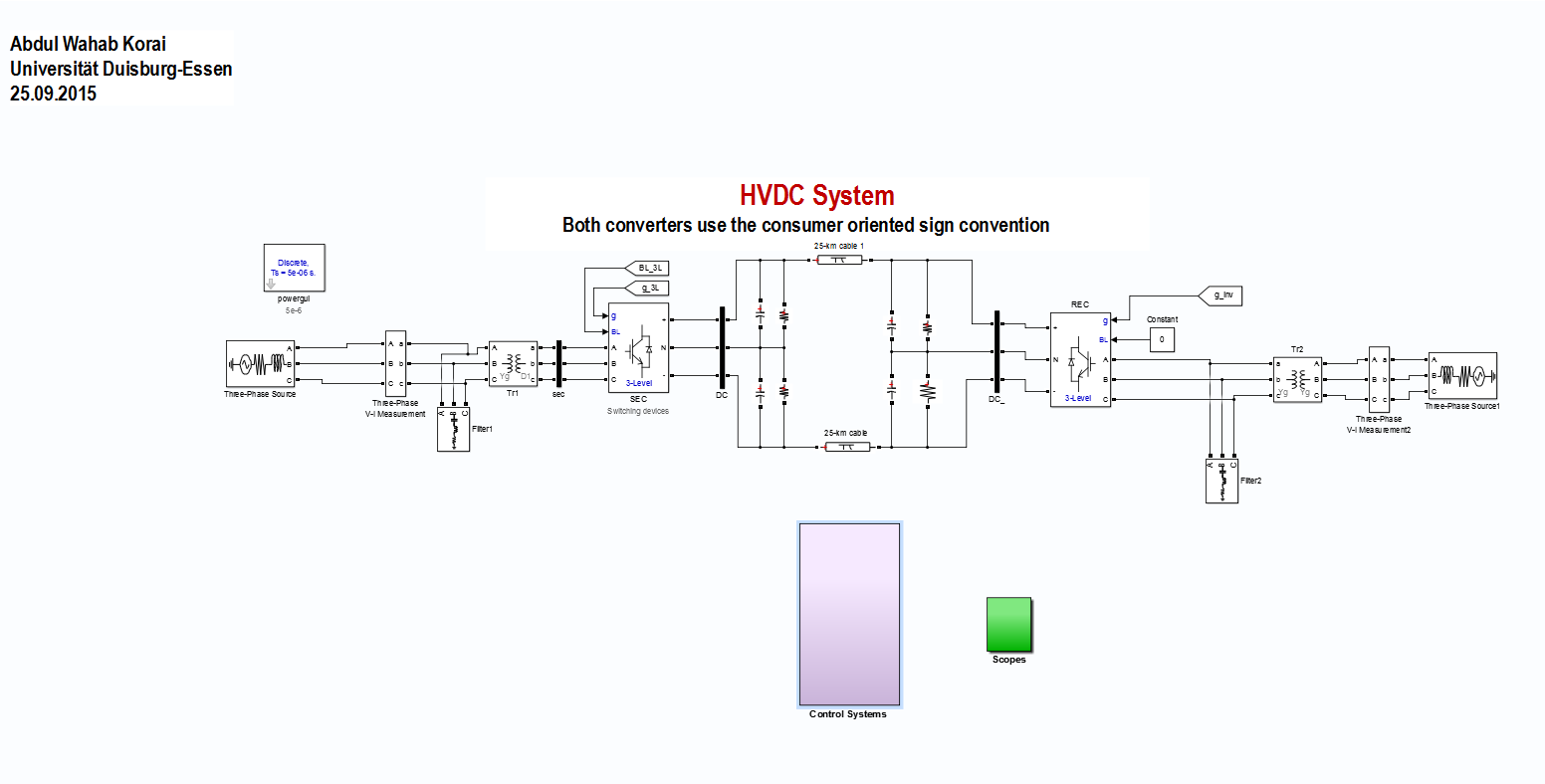

HVDC system with three level neutral-point clamped VSC
4.5
(12)
5,1K Downloads
Aktualisiert 13. Jun 2018

Lizenz anzeigen

The Sending end converter (SEC) controls the AC and DC voltage while the receiving end converter (REC) controls the active power (P) and reactive power (Q). Both converters use current controllers.
- The active power set point is changed at 1 second from 1 pu to 0.8 pu.
-The reactive power set point is changed at 1.2 seconds from 0 to -0.2 pu.
Both converters use the consumer oriented sign convention.
Simulation of the faults is not implemented in the model but can be extended.
