SIMULINK Sigma-Delta Toolbox

version (3.13 MB) by Isacco Arnaldi
Model-Based design and simulation of various Sigma-Delta ADCs


Updated 05 Jan 2019

View License

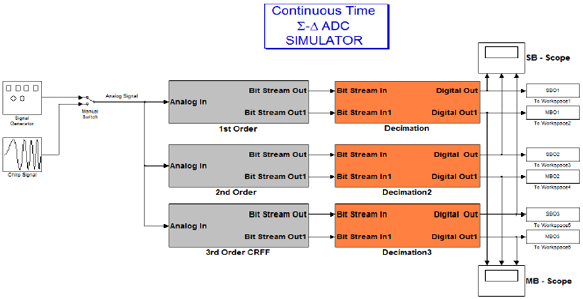

The ΣΔ Toolbox simulates:
• Ten different architectures:
- 1st Order
- 2nd Order
- 2nd Order Boser-Wooley
- 2nd Order Silva-Steensgaard
- 2nd Order Error-Feedback
- 3rd Order CIFF
- 3rd Order CRFF
- 3rd Order CIFB
- 3rd Order CRFB
- 3rd Order MASH

• Single-bit and multibit implementations
of each architecture;

• Discrete and continuous time

• Different signals as input of the
modulators including sine, chirp and
audio signals.

Software developed in collaboration with Yonghao Wang, DMT Lab, Birmingham City University

Cite As

Isacco Arnaldi (2020). SIMULINK Sigma-Delta Toolbox (, MATLAB Central File Exchange. Retrieved .
