Canny Edge Detection

Implementation of Canny Algorithm
7.3K Downloads
Updated 5 Jun 2014

View License

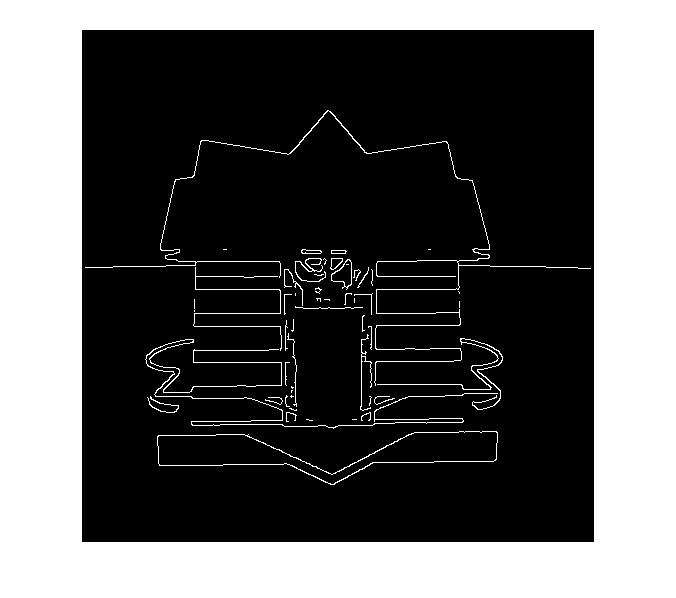

Simple Implementation of Canny Algorithm for Edge Detection.
Steps/Algorithm Details :
1. Convolution with Gaussian Filter Coefficient
2. Convolution with Canny Filter for Horizontal and Vertical orientation
3. Calculating directions using atan2
4. Adjusting to nearest 0, 45, 90, and 135 degree
5. Non-Maximum Suppression
6. Hystheresis Thresholding

Input image is in RGB.
Using two values for Thresholding, T_High and T_Low.

Cite As

Rachmawan (2024). Canny Edge Detection (https://www.mathworks.com/matlabcentral/fileexchange/46859-canny-edge-detection), MATLAB Central File Exchange. Retrieved .

MATLAB Release Compatibility
Created with R2011a
Compatible with any release
