Aileron Model in Simscape
- 35 files
- 1424 downloads

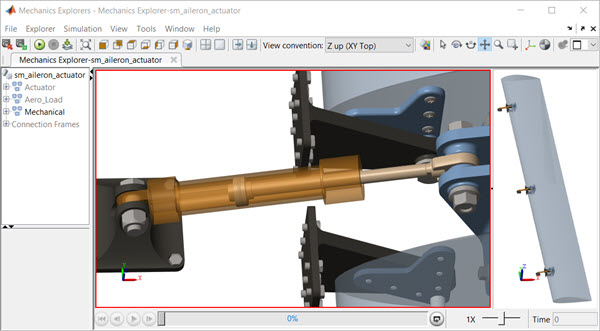

This file contains an aileron actuator model that can be used to develop mechanical designs, determine actuator requirements, compare electrical and hydraulic designs, and design the control system. A number of intermediate models are also included to show you the incremental steps of developing this system. MATLAB scripts show many steps, including optimizing the design, automatically producing reports, and generating C Code. The model is built using Simscape, Simscape Multibody, Simscape Fluids, and Simscape Electrical.
Please read the README.txt file to get started.
The download button will let you access files compatible with R2019b.
Use these hyperlinks to access versions from earlier releases.
For R2019b: https://github.com/mathworks/Simscape-Aileron-Actuator/archive/19.2.5.0.zip
For R2019a: https://github.com/mathworks/Simscape-Aileron-Actuator/archive/19.1.4.1.zip
For R2018b: https://github.com/mathworks/Simscape-Aileron-Actuator/archive/18.2.4.0.zip
For R2018a: https://github.com/mathworks/Simscape-Aileron-Actuator/archive/18.1.3.3.zip
For R2017b: https://github.com/mathworks/Simscape-Aileron-Actuator/archive/17.2.3.2.zip
For R2017a: https://github.com/mathworks/Simscape-Aileron-Actuator/archive/17.1.3.1.zip
See how to model a mechatronic system in Simscape (4 min):
http://www.mathworks.com/videos/modeling-a-mechatronic-system-68829.html
Learn about modeling actuation systems, including custom components using Simscape language:
https://www.mathworks.com/videos/mechatronic-simulation-with-simelectronics-81946.html
Find other Simscape examples by searching posts for the keyword "physical modeling"
http://www.mathworks.com/matlabcentral/fileexchange/?term=%22physical+modeling%22
Learn more about MathWorks Simscape Products:
http://www.mathworks.com/physical-modeling/
Cite As
Steve Miller (2020). Aileron Model in Simscape (https://www.github.com/mathworks/Simscape-Aileron-Actuator), GitHub. Retrieved .
Comments and Ratings (10)
Updates
| 5.0.0.2 | Added links to download versions for earlier releases from GitHub. |
|
| 5.0.0.1 | Changed submission title, no change to files |
|
| 5.0.0.0 | R19b version. Hosted on GitHub. Content now organized in a MATLAB Project. Contact me for earlier releases. |
|
| 4.1.0.0 | Updated for R2019a |
|
| 4.0.0.0 | New version. Mechanical model from CAD, 3 parallel actuators. |
|
| 3.3.0.0 | Updated for R2018a |
|
| 3.2.0.0 | Added R2017b version. |
|
| 3.1.0.0 | Added R2017a version and text for citing submission in other works. Made startup script compatible with Mac. |
|
| 3.0.0.0 | Added R2016b version which includes adjustments to mask drawing commands and improved layout of motor driver circuit. |
|
| 2.0.0.1 | Updated license |
|
| 2.0.0.0 | Fixed broken link in submission description. |
|
| 2.0.0.0 | Added R2016a version. Shows new runtime parameter feature. |
|
| 1.7.0.0 | Fixed webinar link. |
|
| 1.6.0.0 | Updated "Created Using" field to R2013a. Submission also contains R2012b version. |
|
| 1.5.0.0 | Zip file contains R2013a version, as well as R2012b version. |
|
| 1.4.0.0 | Updated submission with examples for real-time, Simscape language, parameter tuning, and optimization. Updated link to new webinar demonstrating example. |
