Smooth Triangulated Mesh

Version 1.1.0.0 (9,14 KB) von Dirk-Jan Kroon
Accurate smoothing of triangulated patch / mesh
4.9
(20)
9K Downloads
Aktualisiert 26 Mär 2010

Lizenz anzeigen

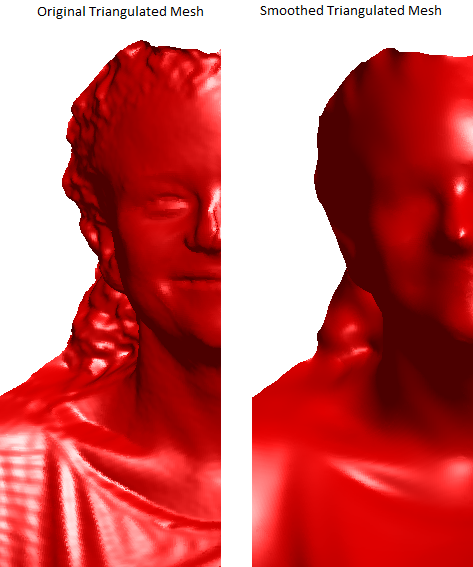

This function smooths a triangulated Mesh / Patch.

Supports accurate curvature flow smoothing. Which smooths in the direction of the normal keeping the edge ratio's the same.
Also supports Laplacian smoothing with inverse vertice-distance based umbrella weights, making the edge lengths more uniform.

Can be used to smooth iso-surface meshes, for scale space and simplification of patches.

Literature:
Mathieu Desbrun et al. "Implicit Faring of Irregular Meshes using Diffusion and Curvature Flow"
Alexander Belyaev. "Curvature Estimation"

Code:
The code is written in Matlab and partly in c-code for speed up reasons.

Comments:
Please leave a comment in case of a bug, like the code, or know a good improvement.

Zitieren als

Dirk-Jan Kroon (2024). Smooth Triangulated Mesh (https://www.mathworks.com/matlabcentral/fileexchange/26710-smooth-triangulated-mesh), MATLAB Central File Exchange. Abgerufen .

Kompatibilität der MATLAB-Version
Erstellt mit R2009b
Kompatibel mit allen Versionen
Plattform-Kompatibilität
Windows macOS Linux
Quellenangaben

Inspiriert: Export Voxel Data

Community Treasure Hunt

Find the treasures in MATLAB Central and discover how the community can help you!

Start Hunting!

Version Veröffentlicht Versionshinweise
1.1.0.0

Comments "\\" to "\* *\". Now the code works with the Linux Gcc compiler.
1.0.0.0
