Hessian based Frangi Vesselness filter
This function uses the eigenvectors of the Hessian to compute the likeliness of an image region to contain vessels or other image ridges , according to the method described by Frangi (2001)
It supports both 2D images and 3D volumes.
The 3D method contains an c-code file which can calculate fast the eigenvectors and eigenvalues of a list of image Hessians. First compile this code with "mex eig3volume.c"
Try the examples.

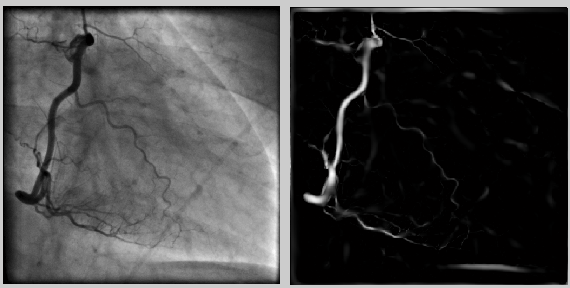

- The 2D example detects vessels in an x-ray image
- The 3D example detects an aortic stent in a CT volume
Zitieren als
Dirk-Jan Kroon (2024). Hessian based Frangi Vesselness filter (https://www.mathworks.com/matlabcentral/fileexchange/24409-hessian-based-frangi-vesselness-filter), MATLAB Central File Exchange. Abgerufen .
Kompatibilität der MATLAB-Version
Plattform-Kompatibilität
Windows macOS LinuxKategorien
- MATLAB > Mathematics > Linear Algebra >
- Image Processing and Computer Vision > Computer Vision Toolbox > Recognition, Object Detection, and Semantic Segmentation > Image Category Classification >
Tags
Quellenangaben
Inspiriert: Microscopy Image Browser (MIB), Microscopy Image Browser 2 (MIB2), Jerman Enhancement Filter, GraphTrace
Community Treasure Hunt
Find the treasures in MATLAB Central and discover how the community can help you!
Start Hunting!Live Editor erkunden
Erstellen Sie Skripte mit Code, Ausgabe und formatiertem Text in einem einzigen ausführbaren Dokument.
Version | Veröffentlicht | Versionshinweise | |
---|---|---|---|
1.11.0.0 | Update help Frangi 3D (Description of parameters) |
||
1.10.0.0 | Changed comment, enabled the sigma scale correction |
||
1.9.0.0 | 2D eigenvector fix |
||
1.8.0.0 | Fixed bug in 3D in Dxy -> Dxz , which caused the sigma scaling not to work. |
||
1.6.0.0 | Fix Gaussian filter function |
||
1.5.0.0 | Bug fixed in direction of edge returned by eig3volume.c |
||
1.4.0.0 | C-code comments from // to /* */ for better linux compiler support. |
||
1.3.0.0 | Sorted the eigenvalues by abs(eigenvalue), this does not influence the output result in case of vessel images. Also new input option added. |
||
1.1.0.0 | Scaling normalization sigma to sigma^2 |
||
1.0.0.0 |
