BorderLayout

Version 1.1.0.1 (4,35 KB) von Brian Cody
Simple layout manager for GUIs designed to mimic the Java BorderLayout.
0.0
(0)
1,4K Downloads
Aktualisiert 1. Sep 2016

Lizenz anzeigen

Anmerkung des Herausgebers: This file was selected as MATLAB Central Pick of the Week

BorderLayout uses uipanels to create a simple layout manager for GUIs that is modeled after Java's BorderLayout. It allows you to carve up a figure window or uipanel parent into five regions: North, South, East, West, and Center. North and South have static pixel heights but vary their widths with the size of the parent. East and West have static pixel widths but vary their heights with the size of the parent. Center occupies the remaining space in the parent.
Since BorderLayouts can be nested inside each other, they can be used to construct professional looking GUIs in MATLAB.

Included in this submission are four files:

BorderLayout.m: The layout manager.

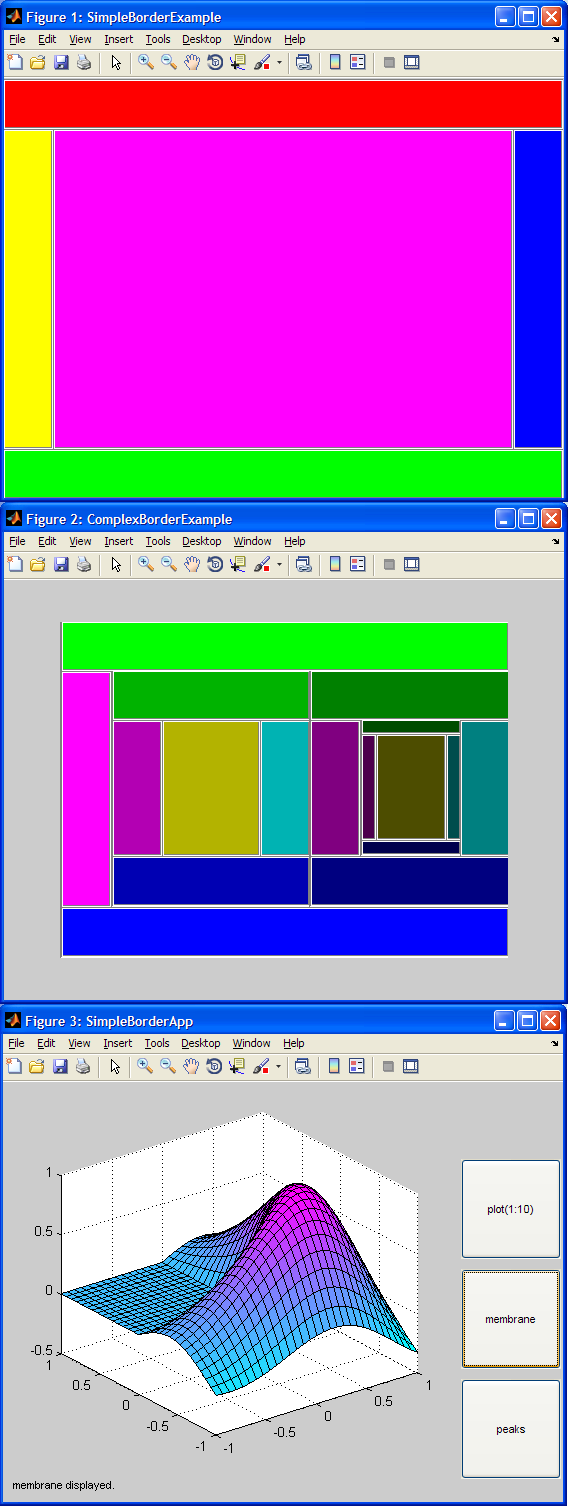

ExampleSimple.m: A small script that shows a single BorderLayout used in a figure window.
ExampleComplex.m: A small script that shows nested BorderLayouts inside a uipanel.
ExampleApplication.m: A simple application that makes use of BorderLayout as a layout manager.

Zitieren als

Brian Cody (2026). BorderLayout (https://de.mathworks.com/matlabcentral/fileexchange/18577-borderlayout), MATLAB Central File Exchange. Abgerufen.

Kompatibilität der MATLAB-Version
Erstellt mit R2007b
Kompatibel mit allen Versionen
Plattform-Kompatibilität
Windows macOS Linux
Kategorien
Mehr zu App Building finden Sie in Help Center und MATLAB Answers
Tags Tags hinzufügen
Quellenangaben

Inspiriert von: MATLAB GUI Makeover

examples/

Version Veröffentlicht Versionshinweise
1.1.0.1

Updated license
1.1.0.0

Updated copyright.
1.0.0.0

Updating category.
