SPIDER simulation

Simulates spectral phase interferometry for direct electric-field reconstruction (SPIDER).
4.7K Downloads
Updated 22 Jan 2009

View License

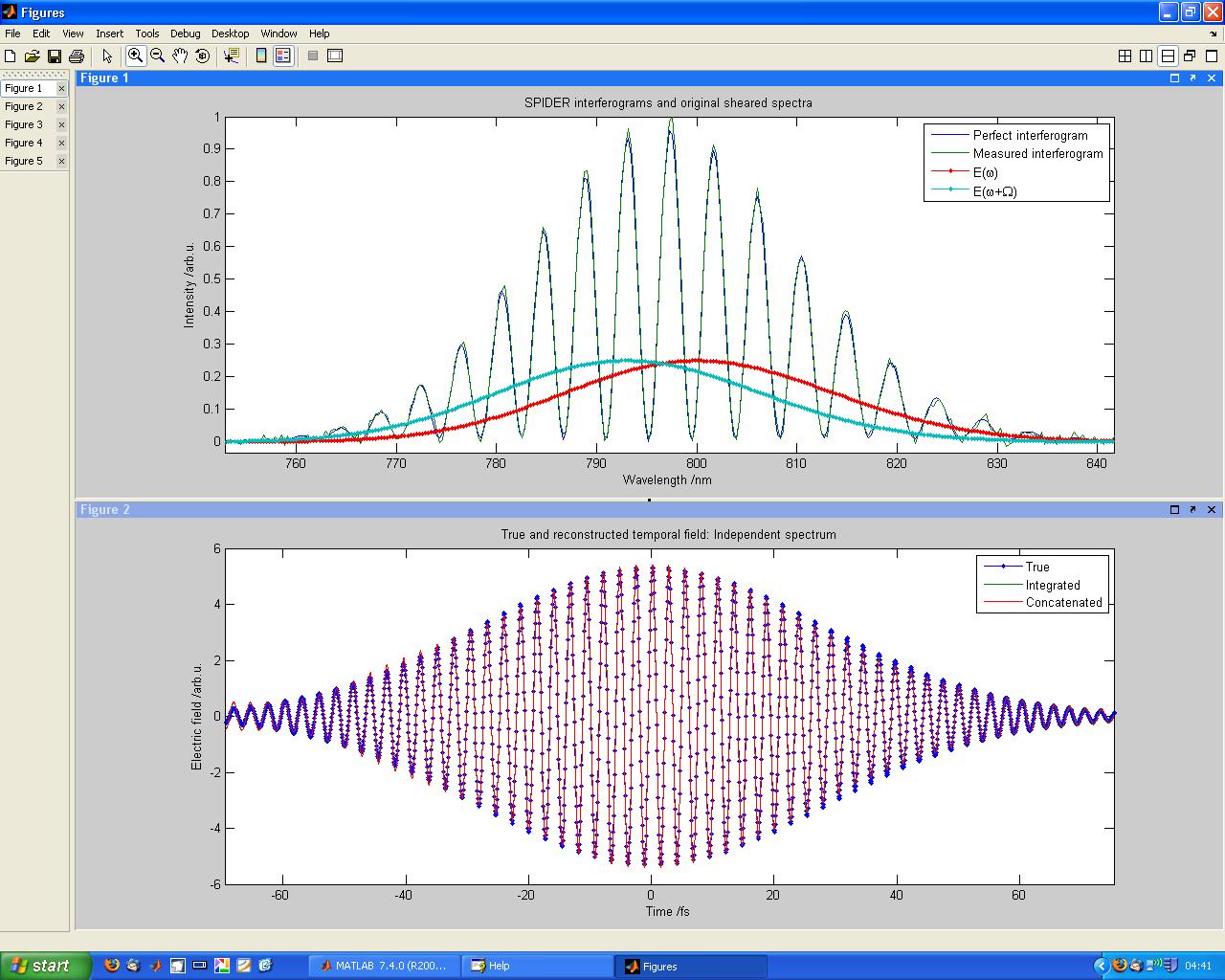

This script simulates an electromagnetic pulse, a spectral phase interferometry for direct electric field reconstruction (SPIDER) measurement and reconstruction and compares it to the true electric field in time in the presence of noise (additive, multiplicative, quantative and in the delay).

Play about with different values of the noise, different pulse parameters and compare the different reconstruction algorithms.

Remember to change the filter to extract the complete sideband if you change the pulse to be measured.

Details can be found at:
http://ultrafast.physics.ox.ac.uk/spider/index.html
http://ultrafast.physics.ox.ac.uk/
http://en.wikipedia.org/wiki/Spectral_interferometry_for_direct_electric_field_reconstruction
C. Iaconis and I. A. Walmsley, "Spectral phase interferometry for direct electric-field reconstruction of ultrashort optical pulses," Opt. Lett. 23(10), p. 792-794 (1998).

Cite As

Adam Wyatt (2024). SPIDER simulation (https://www.mathworks.com/matlabcentral/fileexchange/15657-spider-simulation), MATLAB Central File Exchange. Retrieved .

MATLAB Release Compatibility
Created with R2007a
Compatible with any release
Platform Compatibility
Windows macOS Linux
Categories
Find more on Chemistry in Help Center and MATLAB Answers

Community Treasure Hunt

Find the treasures in MATLAB Central and discover how the community can help you!

Start Hunting!
Version Published Release Notes
1.1.0.0

Changed typo on spectral phase of BK7 and changed SPIDER parameters to take this into account.

1.0.0.0
