PIVlab_batch
Version 1.5 (24,7 KB) von
Nikolai Kozlov
An add-on to PIVlab dedicated to batch processing long series of images.

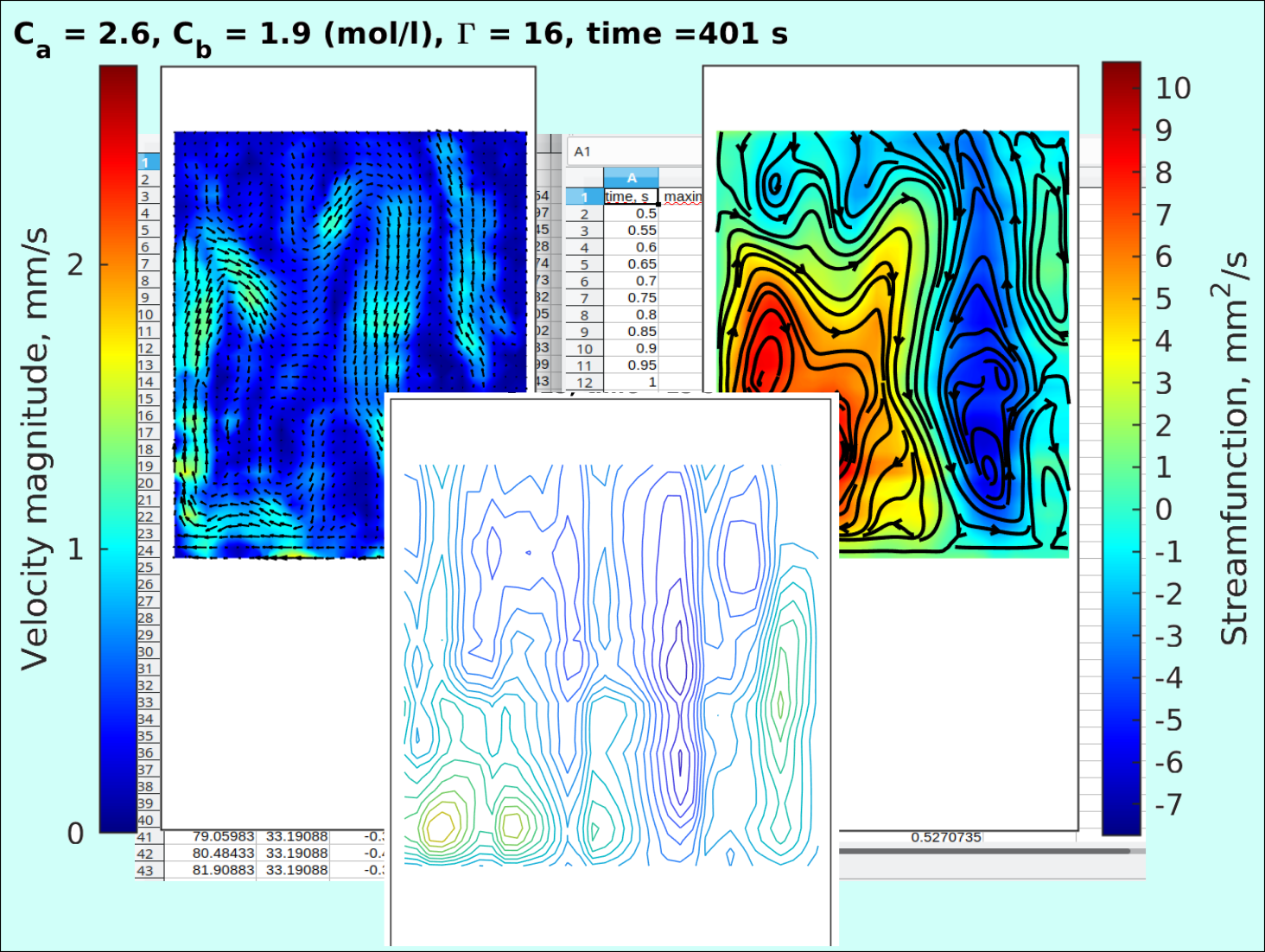

This software was developed to automatically process long series of images of the particle-seeded convection. The idea behind it was to observe the evolution of processes. The program allows to easily obtain the time dependence of such integral characteristics as the maximum and volume-average velocity and streamfunction. The full data on velocity fields is exported in CSV files.
The version 1.5 works with PIVlab 2.53, 2.61 and, presumably, all the versions inbetween.
Remark: PIVlab_batch v. 1.5 does not use parallel processing and supports only one type of sequencing.
PIVlab_batch was used in the experimental research published in Experiments in Fluids [Mosheva E., Kozlov N. Study of chemoconvection by PIV at neutralization reaction under normal and modulated gravity // Experiments in Fluids. 2021. Vol. 62. Article 10. – DOI: 10.1007/s00348-020-03097-0].
Zitieren als
Nikolai Kozlov (2024). PIVlab_batch (https://www.mathworks.com/matlabcentral/fileexchange/121682-pivlab_batch), MATLAB Central File Exchange. Abgerufen .
Kompatibilität der MATLAB-Version
Erstellt mit
R2019b
Kompatibel mit allen Versionen
Plattform-Kompatibilität
Windows macOS LinuxKategorien
Mehr zu Mechanical Engineering finden Sie in Help Center und MATLAB Answers
Tags
Quellenangaben
Inspiriert von: PIVlab - particle image velocimetry (PIV) tool with GUI
Community Treasure Hunt
Find the treasures in MATLAB Central and discover how the community can help you!
Start Hunting!Live Editor erkunden
Erstellen Sie Skripte mit Code, Ausgabe und formatiertem Text in einem einzigen ausführbaren Dokument.
Version | Veröffentlicht | Versionshinweise | |
---|---|---|---|
1.5 | Version 1.5 is compatible with PIVlab 2.53--2.61 |
||
1.0.1 | In version 1.0.1, the possibility of transformation of region of interest (dynamic ROI) via a user-defined function is added. Besides, some minor improvements are done. |
||
1.0.0 |
