Would like to know what is this symbol and its function

2 Ansichten (letzte 30 Tage)
Ying Jie Tan
Ying Jie Tan am 26 Okt. 2023
Kommentiert: Ying Jie Tan am 26 Okt. 2023

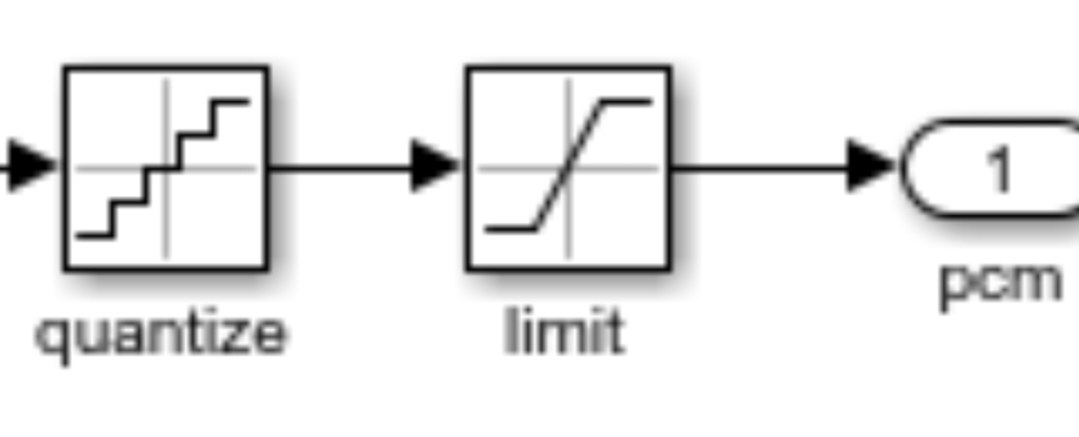

Good day community, can I know what is this symbol could be? It looks like a ramp/ continuous ramp. But I believe it is not both them. I saw someone connect it after a voltage/ current measurement. Can I know what is the function of this symbol too? Much appreciate for the answers given

  2 Kommentare
Kilsu Kim
Kilsu Kim am 26 Okt. 2023
It looks like "Saturation" block but the direction of the block is opposite.
Ying Jie Tan
Ying Jie Tan am 26 Okt. 2023

I've think about this before, but if Im not mistaken, the saturation block came with the y and x axis too right? Or we can hide that axes to become like the block I've attached above?

Melden Sie sich an, um zu kommentieren.

Antworten (0)
