showAllocation(cfg) shows the resource unit
(RU) allocation in a WLAN transmission parameterized by format configuration
cfg. You can get more information about an RU by clicking on
it.

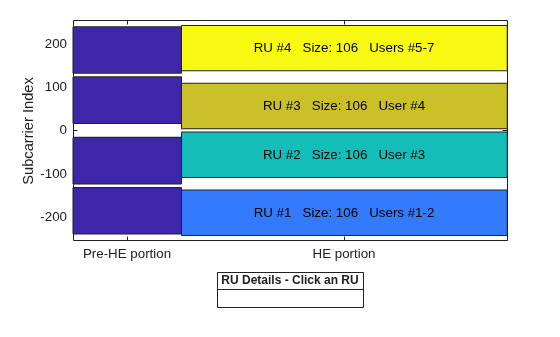

Show the RU allocation in the resultant transmission. This configuration object specifies seven users across four RUs.
showAllocation(cfgHE)

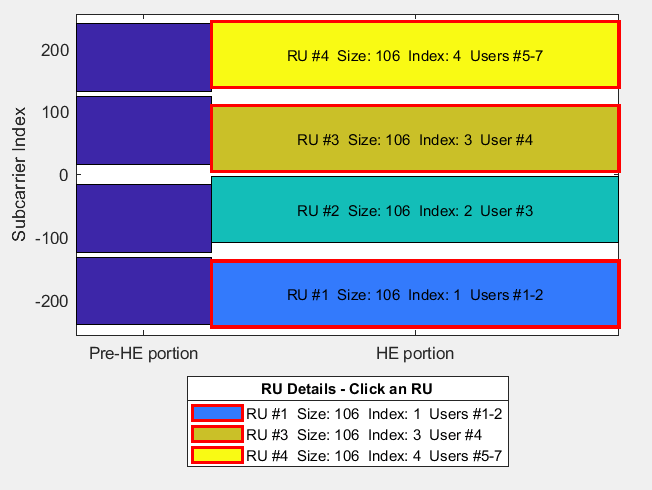

As shown in this figure, you can highlight and show the details of multiple RUs at once. To do this, use Ctrl+Click, or Command+Click on macOS systems.
To show the RU allocation for an EHT multi-user (EHT MU) transmission, specify
this input as a wlanEHTMUConfig object.
To show the RU allocation for an EHT trigger-based (EHT TB) transmission,
specify this input as a wlanEHTTBConfig object.
To show the RU allocation for an HE single-user (HE SU) or HE extended-range
SU (HE ER SU) transmission, specify this input as a
wlanHESUConfig object.
To show the RU allocation for an HE multi-user (HE MU) transmission, specify
this input as a wlanHEMUConfig object.
To show the RU allocation for an HE trigger-based (HE TB) transmission,
specify this input as a wlanHETBConfig object.
Plot axes, specified as an Axes object. For more information, see
Axes Properties. If you do not specify this
input, the showAllocation object function shows the RU allocation
plotted on the default axes.
