scattergram

R2026b

Visualize 1-D scattering or scalogram coefficients

Syntax

img = scattergram(sf,S)

img = scattergram(sf,U)

img = scattergram(___,Name=Value)

scattergram(___)

Description

img = scattergram(sf,S) returns the scattergram as a matrix for the first-order scattering coefficients, S. The matrix S is the output of scatteringTransform computed using the wavelet time scattering network, sf.

img = scattergram(sf,U) returns the scattergram as a matrix for the first-order scalogram coefficients, U. The matrix U is the output of scatteringTransform computed using the wavelet time scattering network, sf.

img = scattergram(___,Name=Value) returns the scattergram with additional options specified by one or more name-value arguments. You can use this syntax with any of the input syntaxes shown previously.

scattergram(___) with no output arguments plots the scattergram in the current figure. You can use any of the input syntaxes shown previously.

Examples

Visualize Scattergram

Load an ECG signal sampled at 180 Hz. Create a wavelet time scattering network that can be used with the signal.

load wecg
Fs = 180;
sf = waveletScattering(SignalLength=numel(wecg), ...
    SamplingFrequency=Fs);

Calculate the scattering transform of the signal.

[S,U] = scatteringTransform(sf,wecg);

Visualize the scattergram for the first-order scattering and scalogram coefficients.

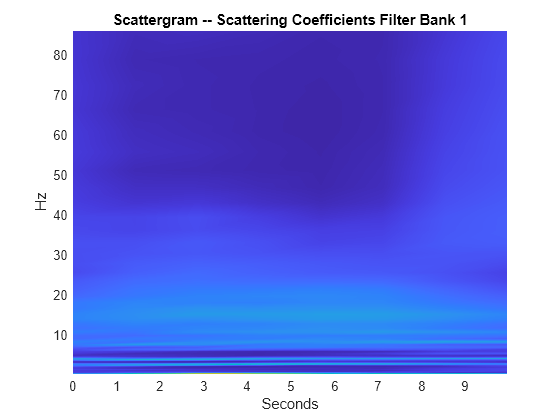

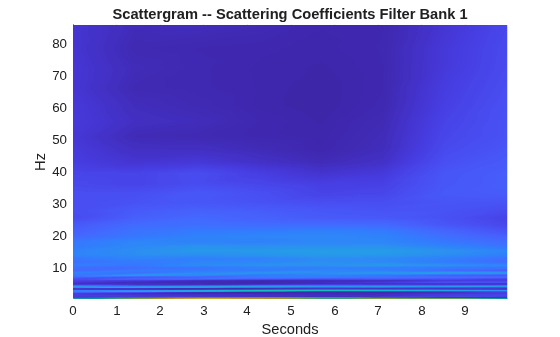

scattergram(sf,S,FilterBank=1)

figure

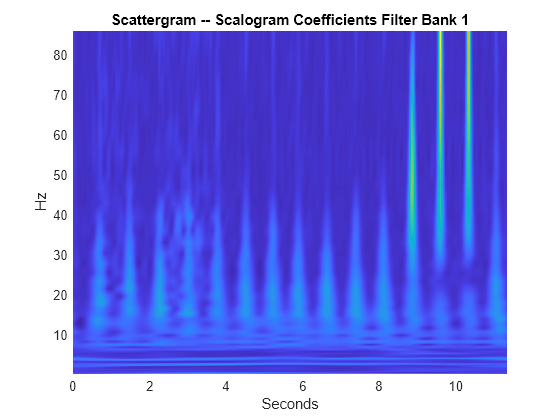

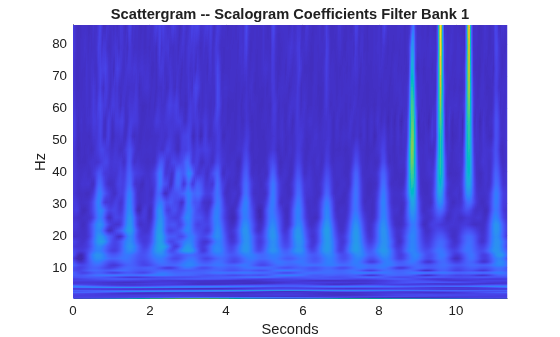

scattergram(sf,U,FilterBank=1)

Input Arguments

sf — Wavelet time scattering network

waveletScattering object

Wavelet time scattering network, specified as a waveletScattering object.

S — Scattering coefficients

cell array

Scattering coefficients, specified as a cell array. S is the output of scatteringTransform computed using the scattering network, sf. For more information, see scatteringTransform.

U — Scalogram coefficients

cell array

Scalogram coefficients, specified as a cell array. U is the output of scatteringTransform computed using the scattering network, sf. For more information, see scatteringTransform.

Name-Value Arguments

Specify optional pairs of arguments as Name1=Value1,...,NameN=ValueN, where Name is the argument name and Value is the corresponding value. Name-value arguments must appear after other arguments, but the order of the pairs does not matter.

Example: FilterBank=1 specifies the first filter bank.

FilterBank — Filter bank index

positive integer between 1 and the number of filter banks in sf inclusive

Filter bank index, specified as a positive number between 1 and the number of filter banks in sf inclusive. scattergram returns the scattergram for the specified filter bank in sf. The number of filter banks in sf is equal to the number of specified QualityFactors in sf.

If FilterBank is greater than 1, scattergram averages the scalogram or scattering coefficients over all paths terminating at each wavelet bandpass filter. To obtain paths with a common parent, use the Parent name-value argument.

P — Path parent index

nonnegative integer

Path parent index, specified as a nonnegative integer. The scalar P is a nonnegative integer representing the P-th wavelet filter at the filter bank FilterBank − 1. scattergram returns the scattergram for the path at the specified filter bank with parent P. If FilterBank is equal to 1, the zeroth filter bank corresponds to the input signal in the case of the scalogram coefficients and the lowpass filtering of the input signal with the scaling function in the case of the scattering coefficients. Lower values of P correspond to wavelets with higher bandpass frequencies.

If you specify P, you must specify the FilterBank name-value argument.

If you specify a value for P which results in a single child, the output img is a vector. The scattergram of a single child is a line plot. If you specify a value for P that results in no children, scattergram returns the scattergram for the filter bank specified by FilterBank.

Output Arguments

img — Scattergram

real-valued matrix | real-valued vector

Scattergram, returned as a real-valued matrix or vector. If you use the P name-value argument and specify a value which results in a single child, img is a vector. If the parent has more than one child, img is a matrix.

Extended Capabilities

Thread-Based Environment

Run code in the background using MATLAB® backgroundPool or accelerate code with Parallel Computing Toolbox™ ThreadPool.

The scattergram function supports thread-based environments with these usage notes and limitations:

• Plotting is not supported.

For more information, see Run MATLAB Functions in Thread-Based Environment.

GPU Arrays

Accelerate code by running on a graphics processing unit (GPU) using Parallel Computing Toolbox™.

The scattergram function fully supports GPU arrays. To run the function on a GPU, specify the input data as a gpuArray (Parallel Computing Toolbox). For more information, see Run MATLAB Functions on a GPU (Parallel Computing Toolbox).

Version History

Introduced in R2018b

R2026b: Use thread-based environments

You can use scattergram in thread-based environments. For more information, see Run MATLAB Functions in Thread-Based Environment.
