isnode

Existing node test

Syntax

r = isnode(t,n)

Description

isnode is a tree-management utility.

r = isnode(t,n) returns 1 (true) for those nodes n that exist in the tree t and 0 (false) otherwise.

The nodes are numbered from left to right and from top to bottom. The root index is 0.

Examples

Existing Node Test

Create a binary tree of depth 3.

ord = 2;
t = ntree(ord,3);

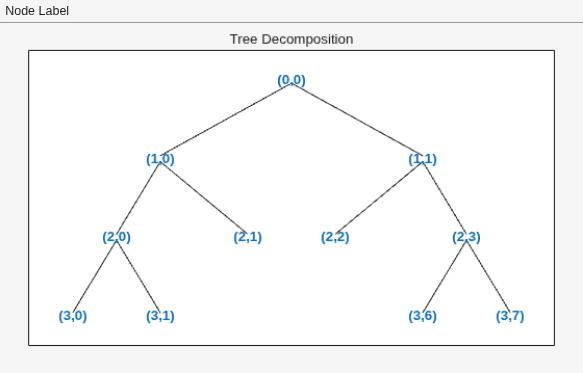

Merge the nodes with indices 4 and 5. Plot the tree.

t = nodejoin(t,5);
t = nodejoin(t,4);
plot(t)

Check for the existence of nodes with depth-position equal to (1,0), (3,1), and (4,5).

n = [1 0;3 1;4 5];
isnode(t,n)

ans = 3x1 logical array

   1
   1
   0

Change the Node Label from Depth_Position to Index to get this figure:

Check for the existence of the nodes with indices equal to 1, 3, and 25.

n = [1;3;25];
isnode(t,n)

ans = 3x1 logical array

   1
   1
   0

Input Arguments

t — Tree

ntree object | dtree object | wptree object

Tree, specified as an ntree, dtree, or wptree object.

n — Tree nodes

column vector | two-column matrix

Tree nodes, specified as a column vector that contains indices of the nodes or a matrix that contains the depths and positions of the nodes. If specified as a matrix, n(i,1) and n(i,2) are the depth and position, respectively, of the ith node.

Data Types: double

Output Arguments

r — True or false result

1 | 0 | logical array

True or false result, returned as a 1 or 0 of data type logical. r and n have the same number of rows.

Version History

Introduced before R2006a
