Read and Display RGB Video from File
This example shows you how to read video frames from a multimedia file as their separate red, green, and blue components, and then display the video frames.
Example Model
Open the Simulink® model.
modelname = 'ex_blkVideoViewer.slx';
open_system(modelname)

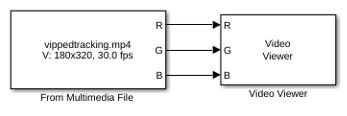

The model reads an input video file using a From Multimedia File block with these parameters:
File name —
vippedtracking.mp4
Output color format —
RGB
Image signal —
Separate color signals
The model displays the video frames using a Video Viewer block with the Separate Color Signals parameter enabled. The R, G, and B ports of each block represent the red, green and blue color channels, respectively, of the input video frames.
Simulate the Model
Run the model. The model displays the video frames in a viewer window.
sim(modelname);
