worldToImage

Project world points into image

Description

example

imagePoints = worldToImage(intrinsics,rotationMatrix,translationVector,worldPoints) returns the projection of 3-D world points into an image given the camera intrinsics, the rotation matrix, and the translation vector.

[imagePoints,validIndex] = worldToImage(___) also returns the indices of valid image points that are within the boundary of the image using any of the previous syntax inputs.

[___] = worldToImage(___'ApplyDistortion',distort) returns the projection with the option of applying distortion. This syntax is supported for nonfisheye camera parameters.

Examples

collapse all

Create a set of calibration images.

images = imageDatastore(fullfile(toolboxdir('vision'),'visiondata', ...
      'calibration','slr'));

Detect the checkerboard corners in the images.

[imagePoints,boardSize] = detectCheckerboardPoints(images.Files);

Generate the world coordinates of the checkerboard corners in the pattern-centric coordinate system, with the upper-left corner at (0,0).

squareSize = 29; % in millimeters
worldPoints = generateCheckerboardPoints(boardSize,squareSize);

Calibrate the camera.

cameraParams = estimateCameraParameters(imagePoints,worldPoints);

Load the image at a new location.

imOrig = imread(fullfile(matlabroot,'toolbox','vision','visiondata', ...
        'calibration','slr','image9.jpg'));

imshow(imOrig,'InitialMagnification',30);

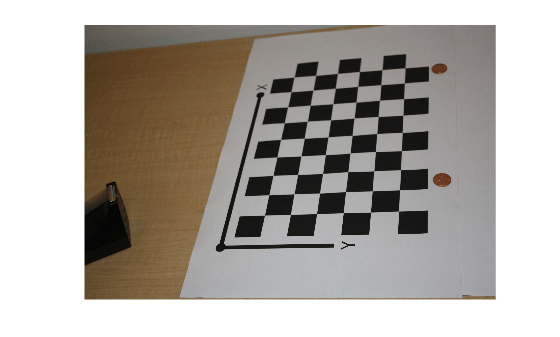

Figure contains an axes. The axes contains an object of type image.

Undistort the image.

imUndistorted = undistortImage(imOrig,cameraParams);

Find a reference object in the new image.

[imagePoints,boardSize] = detectCheckerboardPoints(imUndistorted);

Compute new extrinsics.

[R,t] = extrinsics(imagePoints,worldPoints,cameraParams);

Add a z-coordinate to the world points.

zCoord = zeros(size(worldPoints,1),1);
worldPoints = [worldPoints zCoord];

Project the world points back into the original image.

projectedPoints = worldToImage(cameraParams,R,t,worldPoints);
hold on
plot(projectedPoints(:,1),projectedPoints(:,2),'g*-');
legend('Projected points');
hold off

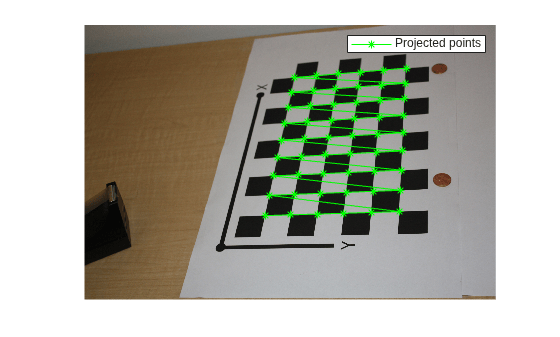

Figure contains an axes. The axes contains 2 objects of type image, line. This object represents Projected points.

Input Arguments

collapse all

Camera parameters, specified as a cameraIntrinsics or a fisheyeIntrinsics object. The objects store information about a camera’s intrinsic calibration parameters, including the lens distortion parameters.

3-D rotation of the world coordinates relative to the image coordinates, specified as a 3-by-3 matrix. The rotation matrix, together with the translation vector, enable you to transform points from the world coordinate system to the camera coordinate system. The rotationMatrix and translationVector inputs must be the same data type.

Data Types: double | single

3-D translation of the world coordinates relative to the image coordinates, specified as a 1-by-3 vector. The translation vector, together with the rotation matrix, enable you to transform points from the world coordinate system to the camera coordinate system. The rotationMatrix and translationVector inputs must be the same data type.

Data Types: double | single

3-D world points, specified as an M-by-3 matrix containing M [x,y,z] coordinates of 3-D world points.

Option to apply lens distortion, specified as false or true. When you set this argument to true, the function applies lens distortion to the output imagePoints.

This argument is valid only when using a cameraParameters object as the cameraParams input.

Output Arguments

collapse all

Image points, returned as an M-by-2 matrix of M [x,y] point coordinates.

Valid index returned as an M-by-1 logical array that specify the indices of valid image points in the imagePoints output that are within the boundary of the image. The world points that correspond to the indices are inside the field of view of the camera.

Introduced in R2016b
