# split

Split single `tireData` object into array of `tireData` objects

Since R2024a

## Syntax

``td=split(obj,criteria)``

## Description

example

````td=split(obj,criteria)` splits a single `tireData` object specified by `obj` into an array of `tireData` objects using criteria specified by `criteria`.```

## Examples

collapse all

Use the `split` function to split a `tireData` object by each `Fz` test condition into multiple `tireData` objects using these input criteria options:

• Data channel

• Logical vector

• Numeric vector

Import and View Tire Measurement Data

Import tire measurement data into a `tireData` object, `td`.

`td = tireData("example_data.tdx");`

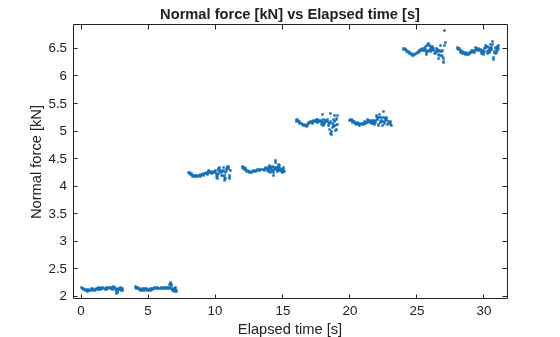

Multiple `Fz` conditions are included in this data file. Use the `plot` function to view the normal force versus the elapsed time.

`plot(td,DataVariableNames=["et","Fz"]);`

Split `tireData` Object Using Data Channels

Specify the normal force `Fz` as the split criteria. The `tireData` object is split into four `tireData` objects at the locations where the nominal normal force value changes.

`tdSplit = split(td,"Fz");`

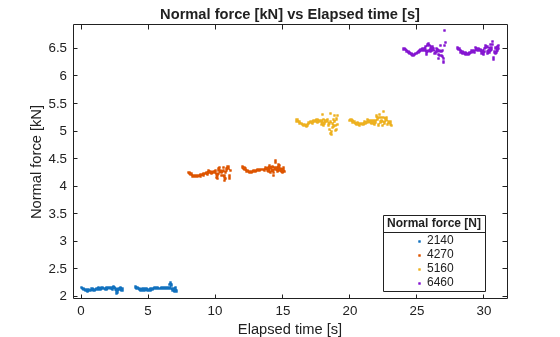

Plot the resulting `tireData` objects in `tdSplit`.

`plot(tdSplit,DataVariableNames=["et","Fz"],ColorBy="Fz");`

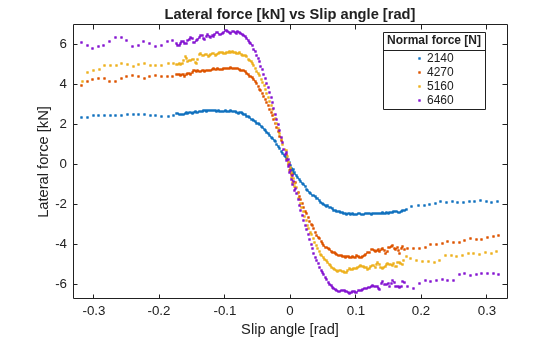

`plot(tdSplit,DataVariableNames=["alpha","Fy"],ColorBy="Fz");`

Split `tireData` Object Using a Logical Vector

Specify a logical vector indicating `true` values where changes in the normal force `Fz` are greater than 500 N as the split criteria. The `tireData` object is split into four `tireData` objects at the positions where the value in the logical vector is `true`.

```tf = [0;diff(td.Fz) > 500]; tdSplit = split(td,tf);```

Plot the resulting `tireData` objects in `tdSplit`.

`plot(tdSplit,DataVariableNames=["alpha","Fy"],ColorBy="Fz");`

Split `tireData` Object Using Numeric Vector

Specify an integer array with the index values of the split location. The `tireData` object is split into four `tireData` objects.

```idx = find(tf); tdSplit = split(td,idx);```

Plot the resulting `tireData` objects in `tdSplit`.

`plot(tdSplit,DataVariableNames=["alpha","Fy"],ColorBy="Fz");`

## Input Arguments

collapse all

The tire data to split, specified as a `tireData` object.

Criteria used to split the `tireData` object, specified as one of these values:

• Logical vector — `true` values indicate at which indices to split the tire data object.

• Integer vector — Integer values indicate at which indices to split the tire data object.

• String vector — Changes in the segment, data channel, or time indicate where to split the `tireData` object using one or more of the string values listed in the table.

ValueDescription
`"segment"`

Splits the `tireData` object where the `segment` array has significant changes in values.

`"et"`

Splits the `tireData` object where the sampling frequency changes.

`"Fz"`

Splits the `tireData` object where the `Fz` data channel array has significant changes in values.

`"IP"`

Splits the `tireData` object where the `IP` data channel array has significant changes in values.

`"alpha"`

Splits the `tireData` object where the `alpha` data channel array has significant changes in values.

`"gamma"`

Splits the `tireData` object where the `gamma` data channel array has significant changes in values.

`"kappa"`

Splits the `tireData` object where the `kappa` data channel array has significant changes in values.

`"Vx"`

Splits the `tireData` object where the `Vx` data channel array has significant changes in values.

Note

By default, if criteria are not specified, the `split` function splits tire data in order of priority:

1. `segment`

2. Data channels (`Fz`,`IP`,`alpha`,`gamma`,`kappa`,`Vx`)

3. Time (`et`)

Data Types: `int8` | `int16` | `int32` | `int64` | `logical` | `string`

## Output Arguments

collapse all

Split tire data, returned as an array of `tireData` objects.

Note

The `split` function assigns all the non-data channel values to all the output `tireData` objects.

## Version History

Introduced in R2024a
