meanEffectSize

One-sample or two-sample effect size computations

Since R2022a

Syntax

Effect = meanEffectSize(X)

Effect = meanEffectSize(X,Y)

Effect = meanEffectSize(X,Y,Name=Value)

Description

Effect = meanEffectSize(X) computes the mean-difference effect size for a single sample X against the default mean value of 0.

Effect = meanEffectSize(X,Y) computes the mean-difference effect size for two samples X and Y.

Effect = meanEffectSize(X,Y,Name=Value) specifies options using one or more of the name-value arguments. For example, you can specify the type of the effect size to compute or the number of bootstrap replicas to use when computing the bootstrap confidence intervals.

Examples

Compare Against Known Mean

Load the stock returns data and define the variable for which to compute the mean-difference effect size.

load stockreturns
x = stocks(:,1);

Compute the mean-difference effect size of the stock returns compared to the default mean value of 0, and compute the 95% confidence intervals for the effect size.

effect = meanEffectSize(x)

effect=1×2 table
                       Effect      ConfidenceIntervals
                      ________    ______________________

    MeanDifference    -0.20597    -0.41283    0.00087954

The meanEffectSize function uses the exact method to estimate the confidence intervals when you use the mean-difference effect size.

You can also specify the mean value you want to compare against.

effect = meanEffectSize(x,Mean=-1)

effect=1×2 table
                      Effect     ConfidenceIntervals
                      _______    ___________________

    MeanDifference    0.79403    0.58717     1.0009

Compute Median-Difference Effect Size for Two Independent Samples

Load Fisher's iris data and define the variables for which to compute the median-difference effect size.

load fisheriris
species2 = categorical(species);
x = meas(species2=='setosa');
y = meas(species2=='virginica');

Compute the median-difference effect size of the observations from two independent samples.

effect = meanEffectSize(x,y,Effect="mediandiff")

effect=1×2 table
                        Effect    ConfidenceIntervals
                        ______    ___________________

    MedianDifference     -1.5        -1.8    -1.3

By default, the meanEffectSize function assumes that the samples are independent (that is, Paired=false). The function uses bootstrapping to estimate the confidence intervals when the effect type is median-difference.

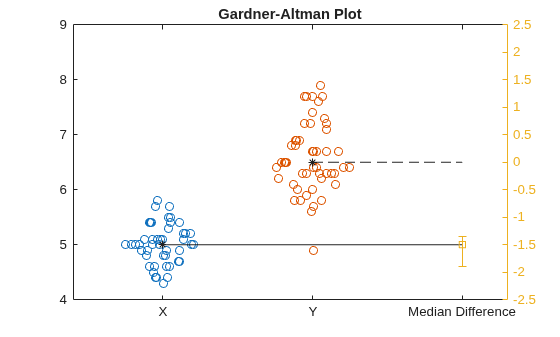

Visualize the median-difference effect size using the Gardner-Altman plot.

gardnerAltmanPlot(x,y,Effect="mediandiff");

The Gardner-Altman plot displays the two data samples on the left. The median of the sample Y corresponds to the zero effect size on the effect size axis, which is the yellow axis line on the right. The median of the sample X corresponds to the value of the effect size on the effect size axis. The plot displays the actual median-difference effect size value and the confidence intervals with the vertical error bar.

Compute Cohen's d Effect Size and Specify Bootstrap Options

Load Fisher's iris data and define the variables for which to compare the Cohen's d effect size.

load fisheriris
species2 = categorical(species);
x = meas(species2=='setosa');
y = meas(species2=='virginica');

Compute the Cohen's d effect size for the observations from two independent samples, and compute the 95% confidence intervals for the effect size. By default,the meanEffectSize function uses the exact formula based on the noncentral t-distribution to estimate the confidence intervals when the effect size type is Cohen's d. Specify the bootstrapping options as follows:

• Set meanEffectSize to use bootstrapping for confidence interval computation.

• Use parallel computing for bootstrapping computations. You need Parallel Computing Toolbox™ for this option.

• Use 3000 bootstrap replicas.

rng(123) % For reproducibility
effect = meanEffectSize(x,y,Effect="cohen",ConfidenceIntervalType="bootstrap", ...
      BootstrapOptions=statset(UseParallel=true),NumBootstraps=3000)

Starting parallel pool (parpool) using the 'Processes' profile ...
Connected to the parallel pool (number of workers: 6).

effect=1×2 table
               Effect     ConfidenceIntervals
               _______    ___________________

    CohensD    -3.0536    -3.5621    -2.3468

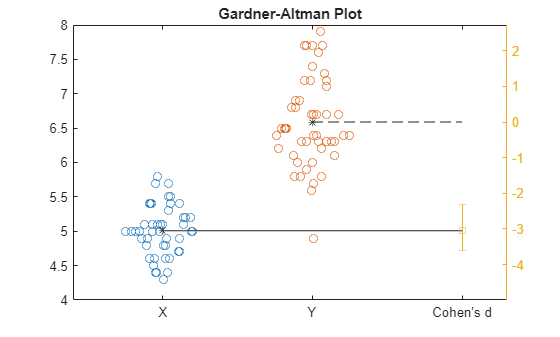

Visualize the Cohen's d effect size using the Gardner-Altman plot with the same options set.

gardnerAltmanPlot(x,y,Effect="cohen",ConfidenceIntervalType="bootstrap", ...
      BootstrapOptions=statset(UseParallel=true),NumBootstraps=3000);

The Gardner-Altman plot displays the two data samples on the left. The mean of the sample Y corresponds to the zero effect size on the effect size axis, which is the yellow axis line on the right. The mean of the sample X corresponds to the value of the effect size on the effect size axis. The plot displays the Cohen's d effect size value and the confidence intervals with the vertical error bar.

Compare Paired Sample Means

Load exam grades data and define the variables to compare.

load examgrades
x = grades(:,1);
y = grades(:,2);

Compute the mean-difference effect size of the grades from the paired samples, and compute the 95% confidence intervals for the effect size.

effect = meanEffectSize(x,y,Paired=true)

effect=1×2 table
                       Effect     ConfidenceIntervals
                      ________    ___________________

    MeanDifference    0.016667    -1.3311     1.3644

The meanEffectSize function uses the exact method to estimate the confidence intervals when you use the mean-difference effect size.

You can specify a different effect size type. (Note that you cannot use Glass's delta for paired samples.) Use robust Cohen's d to compare the paired sample means. Compute the 97% confidence intervals for the effect size.

effect = meanEffectSize(x,y,Paired=true,Effect="robustcohen",Alpha=0.03)

effect=1×2 table
                      Effect     ConfidenceIntervals
                     ________    ___________________

    RobustCohensD    0.059128    -0.1405    0.26573

The meanEffectSize function uses bootstrapping to estimate the confidence intervals when the effect size type is robust Cohen's d.

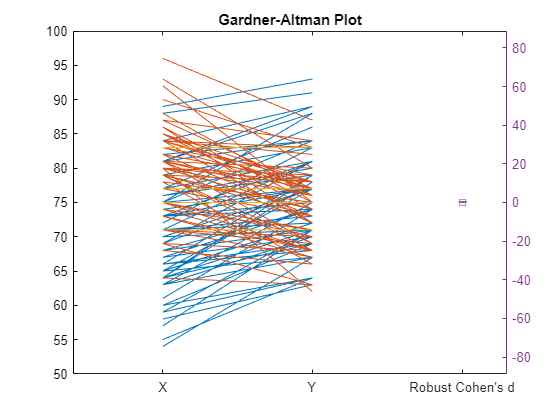

Visualize the effect size using the Gardner-Altman plot. Specify robust Cohen's d as the effect size, and compute the 97% confidence intervals.

gardnerAltmanPlot(x,y,Paired=true,Effect="robustcohen",Alpha=0.03);

The Gardner-Altman plot displays the paired data on the left. The blue lines show the values that are increasing and the red lines show the values that are decreasing from the first sample to the corresponding values in the paired sample, respectively. Right side of the plot displays the robust Cohen's d effect size with the 97% confidence interval.

Input Arguments

X — Input data

numeric vector

Input data, specified as a numeric vector.

Data Types: single | double

Y — Input data

numeric vector

Input data, specified as a numeric vector.

Data Types: single | double

Name-Value Arguments

Specify optional pairs of arguments as Name1=Value1,...,NameN=ValueN, where Name is the argument name and Value is the corresponding value. Name-value arguments must appear after other arguments, but the order of the pairs does not matter.

Example: Effect="cliff",Alpha=0.03,ConfidenceIntervalType="bootstrap",VarianceType=unequal specifies to use the Cliff's Delta effect size, compute the 97% confidence intervals using bootstrapping, and assume the samples come from populations with unequal variances.

Alpha — Confidence level

0.05 (default) | value from 0 to 1

Confidence level of the confidence intervals for the effect size, specified as a numeric value from 0 to 1. Default value of 0.05 corresponds to the 95% confidence level.

Example: Alpha=0.025

Data Types: single | double

BootstrapOptions — Options for computing bootstrap confidence intervals in parallel

structure

Options for computing bootstrap confidence intervals in parallel, specified as a structure generated by using statset("bootci"). meanEffectSize uses the following fields.

Field	Description
Streams	A RandStream object or cell array of such objects. If you do not specify Streams, meanEffectSize uses the default stream or streams. If you specify Streams, use a single object except when all of the following conditions exist: You have an open parallel pool. UseParallel is true. UseSubstreams is false. In this case, use a cell array the same size as the parallel pool. If a parallel pool is not open, then Streams must supply a single random number stream.
UseParallel	The default is false, indicating serial computation.
UseSubstreams	Set to true to compute in a reproducible fashion. The default is false. To compute reproducibly, set Streams to a type allowing substreams: "mlfg6331_64" or "mrg32k3a".

Computing bootstrap confidence intervals in parallel requires Parallel Computing Toolbox™.

Example: BootstrapOptions=options

Data Types: struct

ConfidenceIntervalType — Type of confidence interval

"exact" | "bootstrap" | "none"

Type of confidence interval to compute, specified as "exact", "bootstrap", or "none". The default value is "exact" when there is an exact formula for the effect size or "bootstrap" otherwise. Specify "none" is when you do not want to compute any confidence intervals.

The default value is "exact" for Cliff's Delta, Glass's delta, mean-difference, and Cohen's d and "bootstrap" for Kolmogorov-Smirnov statistic, median-difference, and robust Cohen's d. If you specify confidence interval type as "exact" for Kolmogorov-Smirnov statistic, median-difference, and robust Cohen's d, meanEffectSize returns an error.

Example: ConfidenceIntervalType="none"

Data Types: string | char

Effect — Effect size type to compute

"meandiff" (default) | "cohen" | "cliff" | "glass" | "kstest" | "mediandiff" | "robustcohen"

Effect size type to compute, specified as one of or a cell array of the following built-in options.

Options for single-sample input

Effect size option	Definition
"cohen"	Cohen's d for single-sample input.
"meandiff"	Mean difference.
"robustcohen"	Robust Cohen's d for single-sample input.

Options for two-sample input

Option	Definition
"cohen"	Cohen's d for two-sample input
"cliff"	Cliff's Delta
"glass"	Glass's delta; not supported by meanEffectSize for paired data
"kstest"	Kolmogorov-Smirnov statistic
"mediandiff"	Median difference
"meandiff"	Mean difference
"robustcohen"	Robust Cohen's d for two-sample input

For more information on the effect sizes, see Algorithms.

Example: Effect="glass"

Data Types: string | char | cell

Mean — Known population mean value

scalar value

Known population mean value to compare against, specified as a scalar value. This option is only for single-sample data.

Example: Mean=10

Data Types: single | double

NumBootstraps — Number of bootstrap replicas

1000 (default) | positive integer

Number of bootstrap replicas to use when computing the bootstrap confidence intervals, specified as a positive integer.

Example: NumBootstraps=1500

Data Types: single | double

Paired — Indicator for paired samples

false (default) | true

Indicator for paired samples, specified as false or true.

• If Paired is true, then VarianceType must be "equal".

• If Paired is true, then Effect cannot be "glass".

Example: Paired=true

Data Types: logical

VarianceType — Population variance assumption for two samples

"equal" (default) | "unequal"

Population variance assumption for two samples, specified as "equal" or "unequal". If Paired is "true", then VarianceType must be "equal".

Example: VarianceType="unequal"

Data Types: string | char

Output Arguments

Effect — Effect size information

table

Effect size information, returned as a table. Effect has a row for each effect size computed and a column for the value of the effect size, and a column for the confidence intervals for that effect size, if they are computed.

Data Types: table

Algorithms

Effect Size

• Cliff's Delta

  • Unpaired data

    $$\delta =\frac{{\displaystyle \sum _{i,j=1}^{n_1,n_2}\left(x_i>y_j\right)-\left(x_i<y_j\right)}}{n_1*n_2},$$

    where n₁ is the size of the first sample, and n₂ is the size of the second sample.

  • Paired data

    meanEffectSize uses the between-group delta, which compares the differences between x and y, but excludes comparisons of paired data. For n paired samples, the result is n(n–1) comparisons [3].

• Cohen's d

  meanEffectSize computes the unbiased estimate of Cohen's d, which is also known as Hedge's g.

  • One-sample

    $$d=J\left(df\right)*\frac{\left(\overline{x}-\mu \right)}{s}$$

  • Two-sample

    $$d=J\left(df\right)*\frac{\left(\overline{x}-\overline{y}\right)}{s}$$

  where df is the degrees of freedom, μ is the known population mean to compare against, s is the pooled standard deviation, and J(df) is the bias correction term. The pooled standard deviation is defined as

  $$s=\sqrt{\frac{\left(n_1-1\right)s_1^2+\left(n_2-1\right)s_2^2}{n_1+n_2-2}},$$

  where n₁ is the size of the first sample and n₂ is the size of the second sample.

  The bias correction term are defined as

  $$J\left(df\right)=\frac{\Gamma \left(df/2\right)}{\sqrt{df/2}\Gamma \left(\left(df-1\right)/2\right)},$$

  where $$\Gamma \left(\right)$$ is the gamma function.

  Cohen's d follows a noncentral t-distribution and uses it to derive the confidence intervals. So, by default, meanEffectSize uses "exact" to compute the confidence intervals for the effect size. See [1] and [4] to see the derivation of the confidence intervals for paired versus unpaired input data.

• Glass's Delta

  $$D=\frac{\overline{x}-\overline{y}}{s_x},$$

  where s_x is the standard deviation of the control group. meanEffectSize uses the data in x as the control group. If you wish to use the other sample as the control group, you can swap the data in x and y and swap the sign of the test result.

  Similar to Cohen's d, Glass's delta also follows a noncentral t-distribution and uses it to derive the confidence intervals. So, by default, meanEffectSize uses "exact" to compute the confidence intervals for the effect size [4]. You cannot use this effect size for paired samples.

• Kolmogorov-Smirnov Test Statistic

  This two-sample test statistic is the same as given in Two-Sample Kolmogorov-Smirnov Test. meanEffectSize uses bootstrapping to compute the confidence intervals.

• Mean Difference

  • One-sample

    $$m=\left(\overline{x}-\mu \right)$$

  • Two-sample

    $$m=\left(\overline{x}-\overline{y}\right)$$

  meanEffectSize computes the confidence intervals using the t-distribution with pooled standard deviation in the two-sample case. (In the case of unequal variance assumption for two samples, the confidence intervals are called Welch-Satterthwaite confidence intervals). By default, the function uses "exact" to compute the confidence intervals for the effect size.

• Median Difference

  $$M\text{ = }median\left(x\right)-median\left(y\right)$$

  meanEffectSize computes the confidence intervals using bootstrapping for the effect size.

• Robust Cohen's d

  $$d=0.643*J\left(df\right)*\frac{\left({\overline{x}}_t-{\overline{y}}_t\right)}{s_w},$$

  where $${\overline{x}}_t$$ and $${\overline{y}}_t$$ are the 20% trimmed means of data in x and y, respectively. $${\text{s}}_w$$ is the pooled 20% Winsorized variance [2].

  meanEffectSize computes the confidence intervals using bootstrapping for the effect size.

References

[1] Cousineau, Denis, and Jean-Christophe Goulet-Pelletier. "A Study of Confidence Intervals for Cohen's d in Within-Subject Designs with New Proposals." The Quantitative Methods for Psychology 17, no. 1 (March 2021): 51--75. https://doi.org/10.20982/tqmp.17.1.p051.

[2] Algina, James, H. J. Keselman, and R. D. Penfield. "An Alternative to Cohen's Standardized Mean Difference Effect Size: A Robust Parameter and Confidence Interval in the Two Independent Groups Case." Psychological Methods 10, no. 3 (Sept 2005): 317–28. https://doi.org/10.1037/1082-989X.10.3.317.

[3] Hess, Melinda, and Jeffrey Kromrey. "Robust Confidence Intervals for Effect Sizes: A Comparative Study of Cohen's d and Cliff's Delta Under Non-normality and Heterogeneous Variances." Annual Meeting of the American Educational Research Association. 2004.

[4] Delacre, Marie, Daniel Lakens, Christophe Ley, Limin Liu, and Christophe Leys. "Why Hedges G's Based on the Non-pooled Standard Deviation Should Be Reported with Welch's T-test." 2021.

[5] Gardner, M. J., and D. G. Altman. Confidence Intervals Rather Than P Values; Estimation Rather Than Hypothesis Testing." BMJ, 292 no. 6522 (March 1986): 746–50. https://doi.org/10.1136/bmj.292.6522.746.

Extended Capabilities

Automatic Parallel Support

Accelerate code by automatically running computation in parallel using Parallel Computing Toolbox™.

To run in parallel, specify the Options name-value argument in the call to this function and set the UseParallel field of the options structure to true using statset:

Options=statset(UseParallel=true)

For more information about parallel computing, see Run MATLAB Functions with Automatic Parallel Support (Parallel Computing Toolbox).

Version History

Introduced in R2022a
