# fit

## Description

The `fit`

function fits a configured one-class support vector
machine (SVM) model for incremental anomaly detection (`incrementalOneClassSVM`

object) to streaming data.

To fit a one-class SVM model to an entire batch of data at once, see `ocsvm`

.

returns an incremental learning model `Mdl`

= fit(`Mdl`

,`Tbl`

)`Mdl`

, which represents the input incremental learning model `Mdl`

trained using the predictor data in `Tbl`

.
Specifically, the `fit`

function fits the model to the incoming
data and stores the updated score threshold and configurations in the output model
`Mdl`

.

`[`

additionally returns the numeric array `Mdl`

,`tf`

,`scores`

] = fit(___)`scores`

containing anomaly scores
with `N`

elements for `N`

observations. The values in
this array are in the range `(–Inf,Inf)`

. A negative score value with large
magnitude indicates a normal observation, and a large positive value indicates an
anomaly.

## Examples

### Create Incremental Anomaly Detector Without Any Prior Information

Create a default one-class support vector machine (SVM) model for incremental anomaly detection.

Mdl = incrementalOneClassSVM; Mdl.ScoreWarmupPeriod

ans = 0

Mdl.ContaminationFraction

ans = 0

`Mdl`

is an `incrementalOneClassSVM`

model object. All its properties are read-only. By default, the software sets the score warm-up period to 0 and the anomaly contamination fraction to 0.

`Mdl`

must be fit to data before you can use it to perform any other operations.

**Load Data**

Load the 1994 census data stored in `census1994.mat`

. The data set consists of demographic data from the US Census Bureau.

`load census1994.mat`

`incrementalOneClassSVM`

does not support categorical predictors and does not use observations with missing values. Remove missing values in the data to reduce memory consumption and speed up training. Remove the categorical predictors.

adultdata = rmmissing(adultdata); adultdata = removevars(adultdata,["workClass","education","marital_status", ... "occupation","relationship","race","sex","native_country","salary"]);

**Fit Incremental Model**

Fit the incremental model `Mdl`

to the data in the `adultdata`

table by using the `fit`

function. Because `ScoreWarmupPeriod`

= `0`

, `fit`

returns scores and detects anomalies immediately after fitting the model for the first time. To simulate a data stream, fit the model in chunks of 100 observations at a time. At each iteration:

Process 100 observations.

Overwrite the previous incremental model with a new one fitted to the incoming observations.

Store

`medianscore`

, the median score value of the data chunk, to see how it evolves during incremental learning.Store

`allscores`

, the score values for the fitted observations.Store

`threshold`

, the score threshold value for anomalies, to see how it evolves during incremental learning.Store

`numAnom`

, the number of detected anomalies in the data chunk.

n = numel(adultdata(:,1)); numObsPerChunk = 100; nchunk = floor(n/numObsPerChunk); medianscore = zeros(nchunk,1); threshold = zeros(nchunk,1); numAnom = zeros(nchunk,1); allscores = []; % Incremental fitting rng(0,"twister"); % For reproducibility for j = 1:nchunk ibegin = min(n,numObsPerChunk*(j-1) + 1); iend = min(n,numObsPerChunk*j); idx = ibegin:iend; Mdl = fit(Mdl,adultdata(idx,:)); [isanom,scores] = isanomaly(Mdl,adultdata(idx,:)); medianscore(j) = median(scores); allscores = [allscores scores']; numAnom(j) = sum(isanom); threshold(j) = Mdl.ScoreThreshold; end

`Mdl`

is an `incrementalOneClassSVM`

model object trained on all the data in the stream. The `fit`

function fits the model to the data chunk, and the `isanomaly`

function returns the observation scores and the indices of observations in the data chunk with scores above the score threshold value.

**Analyze Incremental Model During Training**

Plot the anomaly score for every observation.

plot(allscores,".-") xlabel("Observation") ylabel("Score") xlim([0 n])

At each iteration, the software calculates a score value for each observation in the data chunk. A negative score value with large magnitude indicates a normal observation, and a large positive value indicates an anomaly.

To see how the score threshold and median score per data chunk evolve during training, plot them on separate tiles.

figure tiledlayout(2,1); nexttile plot(medianscore,".-") ylabel("Median Score") xlabel("Iteration") xlim([0 nchunk]) nexttile plot(threshold,".-") ylabel("Score Threshold") xlabel("Iteration") xlim([0 nchunk])

finalScoreThreshold=Mdl.ScoreThreshold

finalScoreThreshold = 0.1799

The median score is negative for the first several iterations, then rapidly approaches zero. The anomaly score threshold immediately rises from its (default) starting value of 0 to 1.3, and then gradually approaches 0.18. Because `ContaminationFraction`

= 0, `incrementalOneClassSVM`

treats all training observations as normal observations, and at each iteration sets the score threshold to the maximum score value in the data chunk.

totalAnomalies = sum(numAnom)

totalAnomalies = 0

No anomalies are detected at any iteration, because `ContaminationFraction`

= 0.

### Incrementally Train One-Class SVM Model on Shingled Data

Train a one-class SVM model on a simulated noisy periodic shingled time series containing no anomalies by using `ocsvm`

. Convert the trained model to an incremental learner object, and incrementally fit the time series and detect anomalies.

**Create Simulated Data Stream**

Create a simulated data stream of observations representing a noisy sinusoid signal.

rng(0,"twister"); % For reproducibility period = 100; n = 5001+period; sigma = 0.04; a = linspace(1,n,n)'; b = sin(2*pi*(a-1)/period)+sigma*randn(n,1);

Introduce an anomalous region into the data stream. Plot the data stream portion which contains the anomalous region, and circle the anomalous data points.

c = 2*(sin(2*pi*(a-35)/period)+sigma*randn(n,1));

b(2150:2170) = c(2150:2170); scatter(a,b,".") xlim([1900,2200]) xlabel("Observation") hold on scatter(a(2150:2170),b(2150:2170),"r") hold off

Convert the single-featured data set `b`

into a multi-featured data set by shingling [1] with a shingle size equal to the period of the signal. The $$i$$th shingled observation is a vector of $$k$$ features with values $${b}_{i}$$, $${b}_{i+1}$$, ..., $${b}_{i+k-1}$$, where $$k$$ is the shingle size.

X = []; shingleSize = period; for i = 1:n-shingleSize X = [X;b(i:i+shingleSize-1)']; end

**Train Model and Perform Incremental Anomaly Detection**

Fit a one-class SVM model to the first 1000 shingled observations, specifying a contamination fraction of zero. Convert it to an `incrementalOneClassSVM`

model object.

Mdl = ocsvm(X(1:1000,:),ContaminationFraction=0); IncrementalMdl = incrementalLearner(Mdl);

To simulate a data stream, process the full shingled data set in chunks of 100 observations at a time. At each iteration:

Process 100 observations.

Calculate scores and detect anomalies using the

`isanomaly`

function.Store

`anomIdx`

, the indices of shingled observations marked as anomalies.If the chunk contains fewer than three anomalies, fit and update the previous incremental model.

n = numel(X(:,1)); numObsPerChunk = 100; nchunk = floor(n/numObsPerChunk); anomIdx = []; allscores = []; % Incremental fitting rng(0,"twister"); % For reproducibility for j = 1:nchunk ibegin = min(n,numObsPerChunk*(j-1) + 1); iend = min(n,numObsPerChunk*j); idx = ibegin:iend; [isanom,scores] = isanomaly(IncrementalMdl,X(idx,:)); allscores = [allscores;scores]; anomIdx = [anomIdx;find(isanom)+ibegin-1]; if (sum(isanom) < 3) IncrementalMdl = fit(IncrementalMdl,X(idx,:)); end end

**Analyze Incremental Model During Training**

At each iteration, the software calculates a score value for each observation in the data chunk. A negative score value with large magnitude indicates a normal observation, and a large positive value indicates an anomaly. Plot the anomaly score for the observations in the vicinity of the anomaly. Circle the scores of shingles that the software returns as anomalous.

figure scatter(a(1:5000),allscores,".") hold on scatter(a(anomIdx),allscores(anomIdx),20,"or") xlim([1900,2200]) xlabel("Shingle") ylabel("Score") hold off

Because the introduced anomalous region begins at observation 2150, and the shingle size is 100, shingle 2051 is the first one to show a high anomaly score. Some shingles between 2050 and 2170 have scores lying just below the anomaly score threshold due to the noise in the sinusoidal signal. The shingle size affects the performance of the model by defining how many subsequent consecutive data points in the original time series the software uses to calculate the anomaly score for each shingle.

Plot the unshingled data and highlight the introduced anomalous region. Circle the observation number of the first element in each shingle that the software returned as anomalous.

figure xlim([1900,2200]) ylim([-1.5 2]) rectangle(Position=[2150 -1.5 20 3.5],FaceColor=[0.9 0.9 0.9], ... EdgeColor=[0.9 0.9 0.9]) hold on scatter(a,b,".") scatter(a(anomIdx),b(anomIdx),20,"or") xlabel("Observation") hold off

### Perform Incremental Anomaly Detection with Categorical Predictor Data

Train a one-class SVM model and perform anomaly detection on a data set with categorical predictors.

**Load Data**

Load the 1994 census data stored in `census1994.mat`

. The data set consists of demographic data from the US Census Bureau.

`load census1994.mat`

The `fit`

function of `incrementalOneClassSVM`

does not use observations with missing values. Remove missing values in the data to reduce memory consumption and speed up training.

adultdata = rmmissing(adultdata); adulttest = rmmissing(adulttest);

The census data set contains nine categorical variables. Because the `fit`

function of `incrementalOneClassSVM`

does not support categorical variables, you need to convert them to dummy variables. Remove all of the noncategorical variables, and remove the categorical variables that have more than 10 unique categories. Convert the remaining categorical variables to dummy variables using `onehotencode`

.

adultdata = removevars(adultdata,["age","fnlwgt","capital_gain", ... "capital_loss","hours_per_week","occupation","education", ... "education_num","native_country"]); adulttest = removevars(adulttest,["age","fnlwgt","capital_gain", ... "capital_loss","hours_per_week","occupation","education", ... "education_num","native_country"]); Xtrain = table(); Xstream = table(); for i=1:width(adultdata) Xtrain = [Xtrain onehotencode(adultdata(:,i))]; Xstream = [Xstream onehotencode(adulttest(:,i))]; end

**Train One-Class SVM Model**

Fit a one-class SVM model to the training data. Specify a random stream for reproducibility, and an anomaly contamination fraction of 0.001. Set `KernelScale`

to `"auto"`

so that the software selects an appropriate kernel scale parameter using a heuristic procedure.

rng(0,"twister"); % For reproducibility TTMdl = ocsvm(Xtrain,ContaminationFraction=0.001, ... KernelScale="auto",RandomStream=RandStream("mlfg6331_64"))

TTMdl = OneClassSVM CategoricalPredictors: [] ContaminationFraction: 1.0000e-03 ScoreThreshold: -0.6840 PredictorNames: {1x30 cell} KernelScale: 2.4495 Lambda: 0.0727

`TTMdl`

is a `OneClassSVM`

model object representing a traditionally trained one-class SVM model.

**Convert Trained Model**

Convert the traditionally trained one-class SVM model to a one-class SVM model for incremental learning.

IncrementalMdl = incrementalLearner(TTMdl);

`IncrementalMdl`

is an `incrementalOneClassSVM`

model object that is ready for incremental learning and anomaly detection.

**Fit Incremental Model and Detect Anomalies**

Perform incremental learning on the `Xstream`

data by using the `fit`

function. To simulate a data stream, fit the model in chunks of 100 observations at a time. At each iteration:

Process 100 observations.

Overwrite the previous incremental model with a new one fitted to the incoming observations.

Store

`medianscore`

, the median score value of the data chunk, to see how it evolves during incremental learning.Store

`threshold`

, the score threshold value for anomalies, to see how it evolves during incremental learning.Store

`numAnom`

, the number of detected anomalies in the chunk, to see how it evolves during incremental learning.

n = numel(Xstream(:,1)); numObsPerChunk = 100; nchunk = floor(n/numObsPerChunk); medianscore = zeros(nchunk,1); numAnom = zeros(nchunk,1); threshold = zeros(nchunk,1); % Incremental fitting for j = 1:nchunk ibegin = min(n,numObsPerChunk*(j-1) + 1); iend = min(n,numObsPerChunk*j); idx = ibegin:iend; [IncrementalMdl,tf,scores] = fit(IncrementalMdl,Xstream(idx,:)); medianscore(j) = median(scores); numAnom(j) = sum(tf); threshold(j) = IncrementalMdl.ScoreThreshold; end

**Analyze Incremental Model During Training**

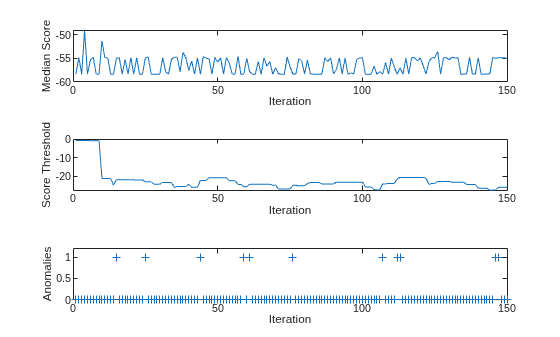

To see how the median score, score threshold, and number of detected anomalies per chunk evolve during training, plot them on separate tiles.

tiledlayout(3,1); nexttile plot(medianscore) ylabel("Median Score") xlabel("Iteration") xlim([0 nchunk]) nexttile plot(threshold) ylabel("Score Threshold") xlabel("Iteration") xlim([0 nchunk]) nexttile plot(numAnom,"+") ylabel("Anomalies") xlabel("Iteration") xlim([0 nchunk]) ylim([0 max(numAnom)+0.2])

totalanomalies=sum(numAnom)

totalanomalies = 11

anomfrac= totalanomalies/n

anomfrac = 7.3041e-04

`fit`

updates the model and returns the observation scores and the indices of observations with scores above the score threshold value as anomalies. A negative score value with large magnitude indicates a normal observation, and a large positive value indicates an anomaly. The median score fluctuates between approximately $$-$$58 and $$-$$55. After the 10th iteration, the score threshold fluctuates between $$-$$28 and $$-$$21. The software detects 11 anomalies in the `Xstream`

data, yielding a total contamination fraction of approximately 0.0007.

## Input Arguments

`Mdl`

— Incremental anomaly detection model

`incrementalOneClassSVM`

model object

Incremental anomaly detection model to fit to streaming data, specified as an
`incrementalOneClassSVM`

model object. You can create `Mdl`

by calling `incrementalOneClassSVM`

directly, or by converting a
traditionally trained `OneClassSVM`

model using the `incrementalLearner`

function.

`Tbl`

— Predictor data

table

Predictor data, specified as a table. Each row of `Tbl`

corresponds to one observation, and each column corresponds to one predictor variable.
Multicolumn variables and cell arrays other than cell arrays of character vectors are
not allowed.

If you train `Mdl`

using a table, then you must provide predictor
data by using `Tbl`

, not `X`

. All predictor
variables in `Tbl`

must have the same variable names and data types
as those in the training data. However, the column order in `Tbl`

does not need to correspond to the column order of the training data.

**Note**

If an observation contains at least one missing value (

`NaN`

,`''`

(empty character vector),`""`

(empty string),`<missing>`

, or`<undefined>`

) ,`fit`

ignores the observation. Consequently,`fit`

uses fewer than*n*observations to create an updated model, where*n*is the number of observations in`Tbl`

.Incremental learning functions support only numeric input predictor data. You must prepare an encoded version of categorical data to use incremental learning functions. Use

`dummyvar`

to convert each categorical variable to a dummy variable. For more details, see Dummy Variables.

**Data Types: **`table`

`X`

— Predictor data

numeric matrix

Predictor data, specified as a numeric matrix. Each row of `X`

corresponds to one observation, and each column corresponds to one predictor
variable.

If you train `Mdl`

using a matrix, then you must provide
predictor data by using `X`

, not `Tbl`

. The
variables that make up the columns of `X`

must have the same order as
the columns in the training data.

**Note**

If an observation contains at least one missing (

`NaN`

) value,`fit`

ignores the observation. Consequently,`fit`

uses fewer than*n*observations to create an updated model, where*n*is the number of observations in`X`

.Incremental learning functions support only numeric input predictor data. You must prepare an encoded version of categorical data to use incremental learning functions. Use

`dummyvar`

to convert each categorical variable to a numeric matrix of dummy variables. Then, concatenate all dummy variable matrices and any other numeric predictors, in the same way that the training function encodes categorical data. For more details, see Dummy Variables.

**Data Types: **`single`

| `double`

## Output Arguments

`Mdl`

— Updated one-class SVM model for incremental anomaly detection

`incrementalOneClassSVM`

model object

Updated one-class SVM model for incremental anomaly detection, returned as an
`incrementalOneClassSVM`

model object.

`tf`

— Anomaly indicators

logical column vector

Anomaly indicators, returned as a logical column vector. An element of
`tf`

is `true`

when the observation in the
corresponding row of `Tbl`

or `X`

is an anomaly,
and `false`

otherwise. `tf`

has the same length as
`Tbl`

or `X`

.

`fit`

updates `Mdl`

and then detects
observations with `scores`

above the threshold (the
`ScoreThreshold`

value) as anomalies.

**Note**

If the model is not warm (

`IsWarm`

=`false`

), then`fit`

returns all`tf`

as`false`

.`fit`

assigns the anomaly indicator of`false`

(logical 0) to observations with at least one missing value.

**Data Types: **`logical`

`scores`

— Anomaly scores

numeric column vector

Anomaly scores, returned as a numeric column vector whose values are in the range
`(–Inf,Inf)`

. `scores`

has the same length as
`Tbl`

or `X`

, and each element of
`scores`

contains an anomaly score for the observation in the
corresponding row of `Tbl`

or `X`

. fit
calculates scores after updating `Mdl`

. A negative score value with
large magnitude indicates a normal observation, and a large positive value indicates an
anomaly.

**Note**

If the model is not warm (

`IsWarm`

=`false`

), then`fit`

returns all`scores`

as`NaN`

.`fit`

assigns the anomaly score of`NaN`

to observations with at least one missing value.

**Data Types: **`single`

| `double`

## References

[1] Guha, Sudipto, N. Mishra, G. Roy, and O. Schrijvers. "Robust Random Cut Forest Based Anomaly Detection on Streams," *Proceedings of The 33rd International Conference on Machine Learning* 48 (June 2016): 2712–21.

## Version History

**Introduced in R2023b**

## MATLAB-Befehl

Sie haben auf einen Link geklickt, der diesem MATLAB-Befehl entspricht:

Führen Sie den Befehl durch Eingabe in das MATLAB-Befehlsfenster aus. Webbrowser unterstützen keine MATLAB-Befehle.

Select a Web Site

Choose a web site to get translated content where available and see local events and offers. Based on your location, we recommend that you select: .

You can also select a web site from the following list:

## How to Get Best Site Performance

Select the China site (in Chinese or English) for best site performance. Other MathWorks country sites are not optimized for visits from your location.

### Americas

- América Latina (Español)
- Canada (English)
- United States (English)

### Europe

- Belgium (English)
- Denmark (English)
- Deutschland (Deutsch)
- España (Español)
- Finland (English)
- France (Français)
- Ireland (English)
- Italia (Italiano)
- Luxembourg (English)

- Netherlands (English)
- Norway (English)
- Österreich (Deutsch)
- Portugal (English)
- Sweden (English)
- Switzerland
- United Kingdom (English)
