# controlrules

Western Electric and Nelson control rules

## Syntax

``R = controlrules(rules,X,cl,se)``
``[R,appliedRules] = controlrules(___)``

## Description

````R = controlrules(rules,X,cl,se)` returns violation indicators for the points in the numeric vector `X`, using the rules in `rules`, center line values `cl` and standard errors `se`. If `X` contains n points and `rules` contains m rules, then `R` is an n-by-m logical matrix, where `R(i,j)` has the value `true` (logical `1`) if point `i` violates rule `j`, and a value `false` (logical `0`) if it does not. If `rules` contains only one control rule, then `R` is a logical vector of length n.```

example

````[R,appliedRules] = controlrules(___)` additionally returns a cell array containing the names of the applied control rules.```

## Examples

collapse all

Load the `parts` data set.

`load parts;`

Create an X-bar chart with `controlchart` using the `we4` rule to mark out of control measurements. Return the subgroup statistics and plot data.

`[stats,plotted] = controlchart(runout,rules="we4");`

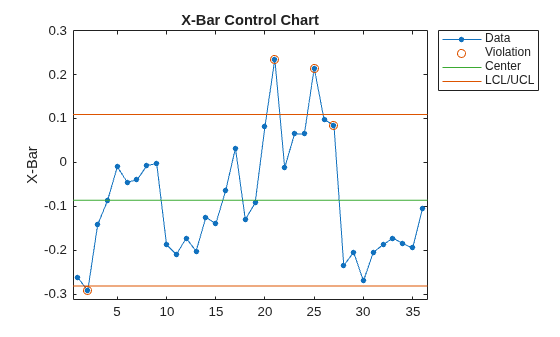

The software marks the out of control points marked with a red circle. Display the subgroup numbers of the out of control points.

`find(plotted.ooc)`
```ans = 4×1 2 21 25 27 ```

Use `controlrules` to identify the measurements that violate the `we4` control rule.

```R = controlrules("we4",plotted.pts,plotted.cl(1),plotted.se(1)); I = find(R)```
```I = 27 ```

The subgroups 2, 21, and 25 are out of control since they are outside the control limits delineated by the red lines. Subgroup 27 is in violation of the `we4` control rule, since it is the last of eight consecutive points that lie above the center line.

## Input Arguments

collapse all

Control rules, specified as a character vector, string scalar, string array, or cell array of character vectors containing one or more of the following values.

ValueViolation Condition
`"we1"`

One point above `cl` `+` `3*``se`

`"we2"`

Two of three points above `cl` `+` `2*se`

`"we3"`

Four of five points above `cl` `+` `se`

`"we4"`Eight of eight points above `cl`
`"we5"`

One point below `cl` `–` `3*se`

`"we6"`

Two of three points below `cl` `–` `2*se`

`"we7"`

Four of five points below `cl` `–` `se`

`"we8"`Eight of eight points below `cl`
`"we9"`

15 of 15 points between `cl` `–` `se` and `cl` `+` `se`

`"we10"`

Eight of eight points below `cl` `–` `se` or above `cl` `+` `se`

`"n1"`

One point below `cl` `–` `3*se` or above `cl` `+` `3*se`

`"n2"`Nine of nine points on the same side of `cl`
`"n3"`Six of six points increasing or decreasing
`"n4"`14 points alternating up or down
`"n5"`

Two of three points below `cl` `–` `2*se` or above `cl` `+` `2*se`, all on the same side

`"n6"`

Four of five points below `cl` `–` `se` or above `cl` `+` `se`, all on the same side

`"n7"`

15 of 15 points between `cl` `–` `se` and `cl` `+` `se`

`"n8"`

Eight of eight points below `cl` `–` `se` or above `cl` `+` `se`, on either side

`"we"`All Western Electric rules (beginning with the letters `"we"`)
`"n"`All Nelson rules (beginning with the letter `"n"`)

For the control rules that involve more than a single point, a rule violation at point `i` indicates that the set of consecutive points ending at point `i` trigger the rule. `R(i)` is `true` only if the point `i` is one of the points that violates the rule's condition.

Any point whose `X`, `cl`, or `se` value is `NaN` is not counted in rules that involve more than a single point, and always has an `R` value of `false` (logical 0).

Example: `rules=["we","n"]`

Data Types: `char` | `string`

Points to evaluate, specified as a numeric vector.

Data Types: `single` | `double`

Center lines, specified as a numeric vector that has the same length as `X`. You can also specify `cl` as a numeric scalar. In this case, the software uses the same value for all points.

Example: `cl=1.5`

Data Types: `single` | `double`

Standard errors, specified as a numeric vector that has the same length as `X`. You can also specify `se` as a numeric scalar. In this case, the software uses the same value for all points.

Example: `se=2.5`

Data Types: `single` | `double`

## Output Arguments

collapse all

Control rule violation indicators for the points in `X`, using the rules in `rules`, center line values `cl`, and standard errors `se`. If `X` contains n points and `rules` contains m rules, then `R` is an n-by-m logical matrix, where `R(i,j)` has the value `true` (logical `1`) if point `i` violates rule `j`, and a value `false` (logical `0`) if it does not. If `rules` contains only one control rule, `R` is a logical vector of length n.

Applied control rules, returned as a cell array of character vectors. If `rules` includes `"we"` or `"n"`, all of the associated individual rules are included in `appliedRules`.

## Version History

Introduced in R2006b
