# RegressionPartitionedGP

Cross-validated Gaussian process regression (GPR) model

## Description

`RegressionPartitionedGP` is a set of Gaussian process regression models trained on cross-validated folds. Estimate the quality of the cross-validated regression by using one or more kfold functions: `kfoldPredict`, `kfoldLoss`, and `kfoldfun`.

Every kfold object function uses models trained on training-fold (in-fold) observations to predict the response for validation-fold (out-of-fold) observations. For example, suppose you cross-validate using five folds. The software randomly assigns each observation into five groups of equal size (roughly). The training fold contains four of the groups (roughly 4/5 of the data), and the validation fold contains the other group (roughly 1/5 of the data). In this case, cross-validation proceeds as follows:

1. The software trains the first model (stored in `CVMdl.Trained{1}`) by using the observations in the last four groups, and reserves the observations in the first group for validation.

2. The software trains the second model (stored in `CVMdl.Trained{2}`) by using the observations in the first group and the last three groups. The software reserves the observations in the second group for validation.

3. The software proceeds in a similar manner for the third, fourth, and fifth models.

If you validate by using `kfoldPredict`, the software computes predictions for the observations in group i by using the ith model. In short, the software estimates a response for every observation by using the model trained without that observation.

## Creation

You can create a `RegressionPartitionedGP` object in two ways:

• Create a cross-validated model from a GPR model object `RegressionGP` by using the `crossval` object function.

• Create a cross-validated model by using the `fitrgp` function and specifying one of the name-value arguments `CrossVal`, `CVPartition`, `Holdout`, `KFold`, or `Leaveout`.

Regardless of whether you train a full or cross-validated GPR model first, you cannot specify an `ActiveSet` value in the call to `fitrgp`.

## Properties

expand all

### Cross-Validation Properties

This property is read-only.

Cross-validated model name, specified as `'GP'`.

Data Types: `char`

This property is read-only.

Number of cross-validated folds, specified as a positive integer.

Data Types: `double`

This property is read-only.

Cross-validation parameter values, specified as an `EnsembleParams` object. The parameter values correspond to the values of the name-value arguments used to cross-validate the GPR model. `ModelParameters` does not contain estimated parameters.

You can access the properties of `ModelParameters` using dot notation.

This property is read-only.

Data partition indicating how the software splits the data into cross-validation folds, specified as a `cvpartition` model.

This property is read-only.

Compact models trained on cross-validation folds, specified as a cell array of `CompactRegressionGP` model objects. `Trained` has k cells, where k is the number of folds.

Data Types: `cell`

### Other Regression Properties

This property is read-only.

Categorical predictor indices, specified as a vector of positive integers. `CategoricalPredictors` contains index values indicating that the corresponding predictors are categorical. The index values are between 1 and `p`, where `p` is the number of predictors used to train the model. If none of the predictors are categorical, then this property is empty (`[]`).

Data Types: `double`

This property is read-only.

Number of observations in the training data stored in `X` and `Y`, specified as a numeric scalar.

Data Types: `double`

This property is read-only.

Predictor variable names, specified as a cell array of character vectors. The order of the elements of `PredictorNames` corresponds to the order in which the predictor names appear in the training data.

Data Types: `cell`

This property is read-only.

Response variable name, specified as a character vector.

Data Types: `char`

Response transformation function, specified as `'none'` or a function handle. In general, `ResponseTransform` describes how the software transforms raw response values.

For GPR model objects, `ResponseTransform` is `'none'` by default. Regardless of the `ResponseTransform` value, the software does not use a response transformation when making predictions.

Data Types: `char` | `function_handle`

This property is read-only.

Observation weights, specified as an n-by-1 numeric vector, where n is the number of observations (`NumObservations`). The software normalizes the observation weights so that the elements of `W` sum to 1.

For GPR model objects, the software ignores observation weights when training a model or making predictions.

Data Types: `double`

This property is read-only.

Predictors used to cross-validate the model, specified as a numeric matrix or table.

Each row of `X` corresponds to one observation, and each column corresponds to one variable.

Data Types: `single` | `double` | `table`

This property is read-only.

Response used to cross-validate the model, specified as a numeric vector.

Each row of `Y` represents the observed response of the corresponding row of `X`.

Data Types: `single` | `double`

## Object Functions

 `kfoldLoss` Loss for cross-validated partitioned regression model `kfoldPredict` Predict responses for observations in cross-validated regression model `kfoldfun` Cross-validate function for regression

## Examples

collapse all

Compute the cross-validation mean squared error of a Gaussian process regression (GPR) model. Compare the predicted response values to the true response values.

Simulate 1000 observations from the model $y=1+0.05x+sin\left(x\right)/x+0.2ϵ$ where:

• `x` is a 1000-by-1 vector of evenly spaced values between –10 and 10.

• $ϵ$ is a 1000-by-1 vector of random normal errors with mean 0 and standard deviation 0.2.

```rng("default"); % For reproducibility n = 1000; x = linspace(-10,10,n)'; y = 1 + 0.05*x + sin(x)./x + 0.2*randn(n,1);```

Create a 5-fold cross-validated GPR model. Use a linear basis function, the exact fitting method to estimate model parameters, and the exact method to make predictions.

```cvMdl = fitrgp(x,y,Basis="linear", ... FitMethod="exact",PredictMethod="exact", ... KFold=5);```

`cvMdl` is a `RegressionPartitionedGP` object that contains five trained `CompactRegressionGP` model objects (`cvMdl.Trained`). Each of the five GPR models is trained using approximately 4/5 of the observations in `x`.

Compute the average mean squared error.

`kfoldLoss(cvMdl)`
```ans = 0.0401 ```

Predict the response values using the cross-validated model. The predicted response values are the predictions on the holdout (validation) observations. In other words, the software obtains each prediction by using a model that was trained without the corresponding observation.

`ypred = kfoldPredict(cvMdl);`

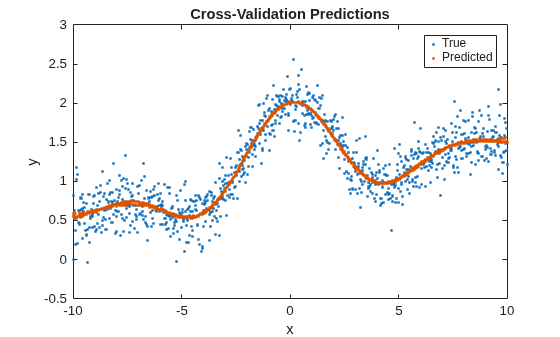

Plot the true response values and the predicted response values for the cross-validated model.

```plot(x,y,"."); hold on plot(x,ypred,"."); xlabel("x") ylabel("y") title("Cross-Validation Predictions") legend(["True","Predicted"]) hold off```

The five `CompactRegressionGP` models seem generally to agree, but some of the predictions differ close to the endpoints of the predictor data range (around –10 and 10).

You cannot use the cross-validated model directly to make predictions on new data. If you want to predict response values for a new data set, you can train a new GPR model using all the data in `x` and then use the `predict` object function. For example, predict response values for each even integer between –10 and 10.

```mdl = fitrgp(x,y,Basis="linear", ... FitMethod="exact",PredictMethod="exact"); xnew = (-10:2:10)'; prednew = predict(mdl,xnew)```
```prednew = 11×1 0.5473 0.7012 0.6395 0.5945 1.3450 2.0073 1.5643 0.9842 1.2214 1.4962 ⋮ ```

Alternatively, you can use the individual compact models in the `Trained` property of the cross-validated model and then combine the predictions (for example, through averaging). For example, predict average response values for each even integer between –10 and 10.

```preds = zeros(length(xnew),cvMdl.KFold); for i = 1:cvMdl.KFold preds(:,i) = predict(cvMdl.Trained{i},xnew); end meanpreds = mean(preds,2)```
```meanpreds = 11×1 0.5462 0.7012 0.6395 0.5949 1.3451 2.0067 1.5640 0.9851 1.2213 1.4963 ⋮ ```

## Version History

Introduced in R2022b
