Enforce Barrier Certificate Constraints for Collision-Free Robots

This example shows how to enforce barrier certificate constraints for collision-free robots using the Barrier Certificate Enforcement block.

Overview

In this example, the goal for the robots is to reach a target position without colliding with each other [1]. The robot dynamics are modeled by double integrators in the x-y plane. Each robot has four states (x-position, y-position, x-velocity, and y-velocity) and two control variables (x-acceleration and y-acceleration). The velocities are constrained to [-2, 2] m/s and the accelerations are constrained to [-10, 10] m/s^2. The PID controllers are designed for the robots to reach the target position. Collision avoidance is achieved by enforcing barrier certificate constraints.

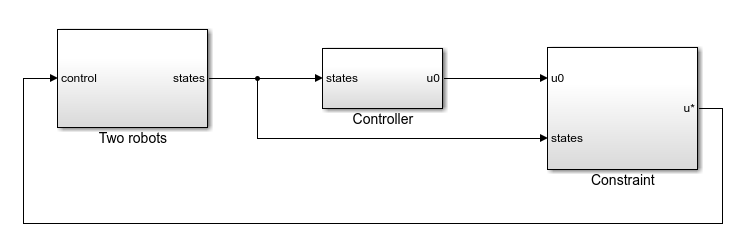

Open the Simulink® model.

mdl = 'twoRobotsCBF';
open_system(mdl);

Controller Design

Each robot has its own controller that brings it to the target position. In this example, the controller is implemented as a PID-type controller.

Run the simulation and view the results.

constrained = 0;
sim(mdl);

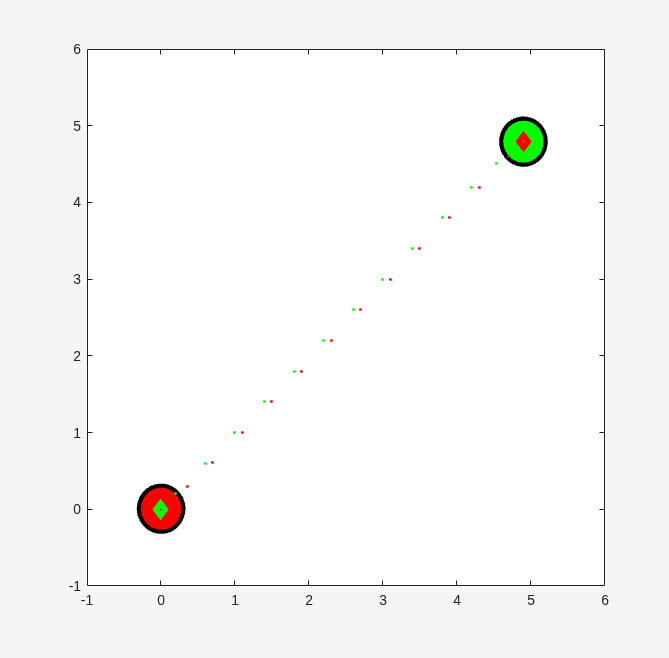

In the figure, robot 1 (green) reaches the target position [4.9, 4.8] m and robot 2 reaches the target position [0, 0] m. The controllers successfully bring the controlled robots to their target positions.

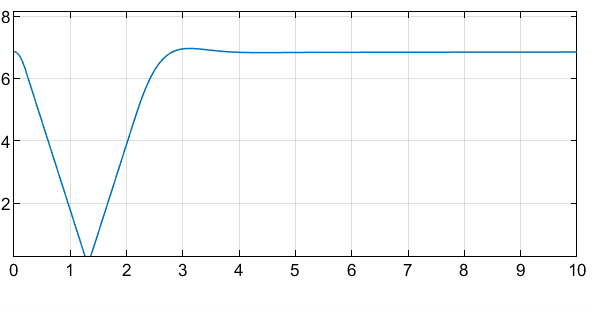

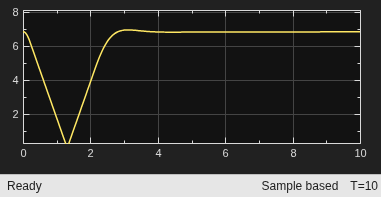

Open the distance scope in the Two robots > visualization subsystem. The two robots collide with each other at around 1.3 seconds.

Barrier Certificate Constraints

For collision avoidance, the constraint is that the distance between two robots $\mathit{i}$ and $\mathit{j}$ stay greater than a given threshold if the two robots are moving closer to each other [1]. The barrier certificate is given by

$$h(x)=\sqrt{2{\alpha }_{sum}(\Vert ▵p_{ij}\Vert -D_s)}+\frac{▵p_{ij}^T▵v_{ij}}{\Vert ▵p_{ij}\Vert }$$.

Here, the variables are:

• The maximum braking power from both robots — ${\alpha }_{\mathrm{sum}}=20$

• The minimum distance between the robots — ${\mathit{D}}_{\mathit{s}}=0.7$

• The position error vector — $$▵p_{ij}=p_i-p_j$$

• The velocity error vector — $$▵v_{ij}=v_i-v_j$$

The partial derivative of $\mathit{h}\left(\mathit{x}\right)$ over states $\mathit{x}={\left[{\mathit{p}}_{\mathit{i}},{\mathit{p}}_{\mathit{j}},{\mathit{v}}_{\mathit{i}},{\mathit{v}}_{\mathit{j}}\right]}^{\mathit{T}}$ is denoted by $\mathit{q}\left(\mathit{x}\right)$, and the analytical results are given in the barrierGradFcn2Robots script.

The Barrier Certificate Enforcement block accepts the dynamics in the form $$\underset{}{\overset{\dot{}}{x}}=f(x)+g(x)u$$. For this example,

$\mathit{f}\left(\mathit{x}\right)=\left[\begin{array}{cccc}0& 0& \mathit{I}& 0\\ 0& 0& 0& \mathit{I}\\ 0& 0& 0& 0\\ 0& 0& 0& 0\end{array}\right]\mathit{x}$ and $\mathit{g}\left(\mathit{x}\right)=\left[\begin{array}{cc}0& 0\\ 0& 0\\ \mathit{I}& 0\\ 0& \mathit{I}\end{array}\right]$,

and each element is a 2-by-2 matrix.

Simulate Collision-Free Controller with Barrier Certificate Constraint

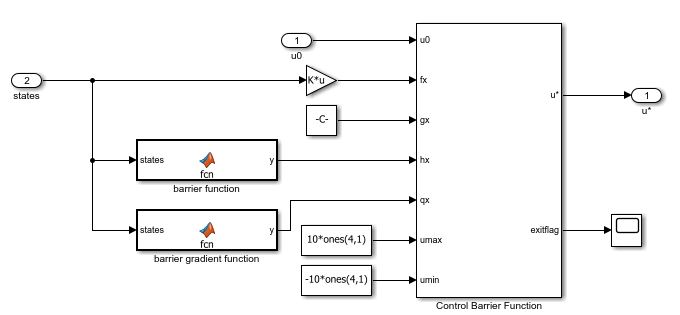

To view the constraint implementation, open the Constraint > Constrained subsystem.

constrained = 1;

Close the figure before running the model.

f = findobj('Name','Two robots');
close(f)

Run the model and view the simulation results. The two robots avoid each other when they are too close.

sim(mdl);

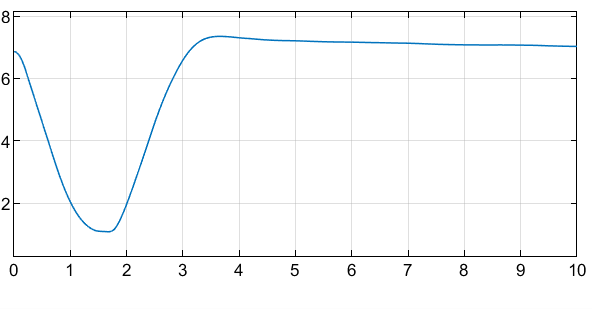

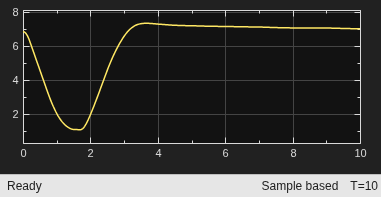

The distance between the two robots stays above the threshold ${\mathit{D}}_{\mathit{s}}=0.7$.

The Barrier Certificate Enforcement block successfully constrains the control actions such that the two robots reach their target positions in a collision-free manner.
