padv.TaskTool

Tool to help organize and complete task activities in Process Advisor

Since R2023b

Description

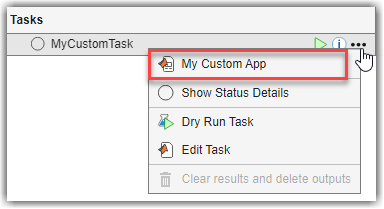

A padv.TaskTool object represents a tool that you can add to your task or process to help you organize and complete task activities in Process Advisor. Starting in R2023b, your task tools are available from the options menu for a task in Process Advisor. You add the task tool to your process model by using the addTaskTool function and link the tool to a specific task or process by setting the TaskTools property of the task or process. In Process Advisor, you access task tools by pointing to the task in the Tasks column and opening the options menu (...).

Creation

Syntax

padv.TaskTool(ToolFunction=AppName,Title=Title,Type="TaskApp")

padv.TaskTool(ToolFunction=FunctionName,Title=toolTitle,Type="Command")

padv.TaskTool(___,Arguments=Arguments)

Description

padv.TaskTool(ToolFunction=AppName,Title=Title,Type="TaskApp") creates a task tool that represents a custom app that you can open from the task options menu in Process Advisor. You design the app by using App Designer or uifigure.

padv.TaskTool(ToolFunction=FunctionName,Title=toolTitle,Type="Command") creates a task tool that represents a command that you can run from the task options menu in Process Advisor.

padv.TaskTool(___,Arguments=Arguments) passes arguments to the task tool. For example, padv.TaskTool(ToolFunction="blankApp1",Title="My Custom App",Type="TaskApp",Arguments="arg1") passes the argument arg1 to the task app.

Input Arguments

AppName — Name of app to open

string

Name of app to open, specified as a string. Do not include the file extension.

The app must:

• Be an app that you design using App Designer or uifigure. You can save the app as an App Designer app (.mlapp), export the App Designer app as an M file, or define the app by using a MATLAB^® class (.m).

• Be on the MATLAB path.

• Include a TaskContext property that you pass as a name-value argument in the constructor. Process Advisor uses the argument to identify the context of the task in your process.

• Do one of the following during initialization:

  • Return a figure object from the uifigure function

  • Return an object with a getFigure method that returns a figure object from the uifigure function

  • Return an object with a UIFigure property containing a figure object from the uifigure function

For example, the following MATLAB class defines a blank task app.

classdef blankApp1 < matlab.apps.AppBase
    properties (Access = public)
        UIFigure  matlab.ui.Figure
        TaskContext
    end
    methods (Access = private)
        function createComponents(app)
            app.UIFigure = uifigure('Visible', 'on');
        end
    end
    methods (Access = public)
        function app = blankApp1(NameValueArgs)
            arguments
                NameValueArgs.TaskContext
            end
            app.TaskContext = NameValueArgs.TaskContext;
            createComponents(app);
            if nargout == 0
                clear app
            end
        end
        function delete(app)
            delete(app.UIFigure)
        end
    end
end

For an example App Designer file, see TaskAppDemo.mlapp in the Process Advisor example project shown in Integrate Custom App into Process Advisor.

Example: "blankApp1"

Data Types: string

FunctionName — Name of function to evaluate

string

Name of function to evaluate, specified as a string. Do not include the file extension.

The function must accept a TaskContext as a name-value argument in its NameValueArgs input. Process Advisor uses this argument to identify the context of the task in your process. Inside the function, specify the command that you want the task tool to execute.

function out = myTaskCommand(NameValueArgs)
    arguments
        NameValueArgs.TaskContext
    end
    % define task command here
end

padv.TaskTool uses the feval function to evaluate the function and any input arguments that you specify in padv.TaskTool.

For an example, see Integrate Custom Commands into Process Advisor.

Example: "myTaskCommand"

Data Types: string

Title — Tool name that appears in Process Advisor app

string

Tool name that appears in Process Advisor app, specified as a string.

Example: "My Custom App"

Data Types: string

Arguments — Input arguments for tool

cell array

Input arguments for tool, specified as a cell array.

Example: {'arg1'}

Example: {"arg1","arg2"}

Data Types: cell

Properties

ToolFunction — Name of app to open or function to evaluate

string

Name of app to open or function to evaluate, specified as a string. Do not include the file extension.

The value that you specify depends on the type of task app that you create:

• If the Type property is "TaskApp", specify the name of an app. The app must:

  • Be an app that you design by using App Designer or uifigure.

  • Be on the MATLAB path.

  • Include a TaskContext property that you pass as a name-value argument in the constructor. Process Advisor uses the argument to identify the context of the task in your process.

  • Do one of the following during initialization:

    • Return a figure object from the uifigure function

    • Return an object with a getFigure method that returns a figure object from the uifigure function

    • Return an object with a UIFigure property containing a figure object from the uifigure function

  For example, the following MATLAB class defines a blank task app.

  classdef blankApp1 < matlab.apps.AppBase
      properties (Access = public)
          UIFigure  matlab.ui.Figure
          TaskContext
      end
      methods (Access = private)
          function createComponents(app)
              app.UIFigure = uifigure('Visible', 'on');
          end
      end
      methods (Access = public)
          function app = blankApp1(NameValueArgs)
              arguments
                  NameValueArgs.TaskContext
              end
              app.TaskContext = NameValueArgs.TaskContext;
              createComponents(app);
              if nargout == 0
                  clear app
              end
          end
          function delete(app)
              delete(app.UIFigure)
          end
      end
  end

  For an example App Designer file, see TaskAppDemo.mlapp in the Process Advisor example project shown in Integrate Custom App into Process Advisor.

• If the Type property is "Command", specify the name of a function to evaluate. The function must accept a TaskContext as a name-value argument in its NameValueArgs input. Process Advisor uses this argument to identify the context of the task in your process.

  Inside the function, specify the command that you want the task tool to execute.

  function out = myTaskCommand(NameValueArgs)
      arguments
          NameValueArgs.TaskContext
      end
      % define task command here
  end

  padv.TaskTool uses the feval function to evaluate the function and any input arguments that you specify in padv.TaskTool.

  For an example, see Integrate Custom Commands into Process Advisor.

Example: "blankApp1"

Example: "fun"

Data Types: string

Title — Tool name that appears in Process Advisor app

string

Tool name that appears in Process Advisor app, specified as a string.

Example: "My Custom App"

Data Types: string

Type — Type of tool

padv.TaskToolType.TaskApp | padv.TaskToolType.Command

Type of tool, specified as either:

• padv.TaskToolType.TaskApp — Represents a custom app that you can open from the task options menu in Process Advisor. You can design the app by using App Designer or uifigure. Use this type to represent interactive apps that you create for your tasks.

• padv.TaskToolType.Command — Represents a command that you can run from the task options menu in Process Advisor. Use this type to represent programmatic commands that you execute.

These values belong to the enumeration class padv.TaskToolType.

Example: padv.TaskToolType.TaskApp

Arguments — Input arguments for tool

cell array

Input arguments for tool, specified as a cell array.

Example: {'arg1'}

Example: {"arg1","arg2"}

Data Types: cell

Examples

Integrate Custom App into Process Advisor

Starting in R2023b, you can integrate custom apps into your process model. You create the custom app by using App Designer or uifigure and then represent the app by using a padv.TaskTool object. You add the custom app to your task and process model by using the addTaskTool function and the TaskTools property. You can use these custom apps to provide a UI to help you perform and complete activities for a task in your process.

For this example, you modify a custom task app in App Designer to display the commit history of the model and access the task app in Process Advisor.

Open the Process Advisor example project.

processAdvisorExampleStart

Open the standalone Process Advisor window.

processAdvisorWindow

Open the Additional Examples process by selecting Additional Examples from the Process gallery in the toolstrip. The Additional Examples process contains example tasks that use a custom task app created in App Designer.

Note

For R2025a, this functionality will be available in a future release of the support package.

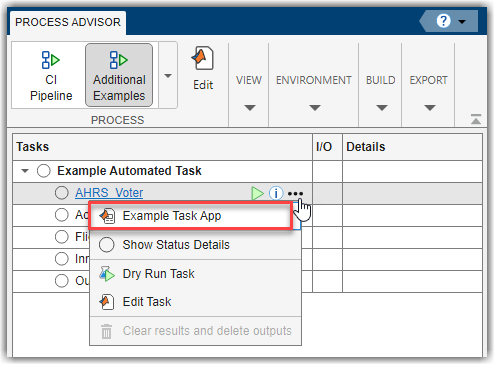

In the Tasks column, expand the task Example Automated Task and open the task app for the AHRS_Voter model by pointing to AHRS_Voter, opening the task options menu (...), and clicking Example Task App.

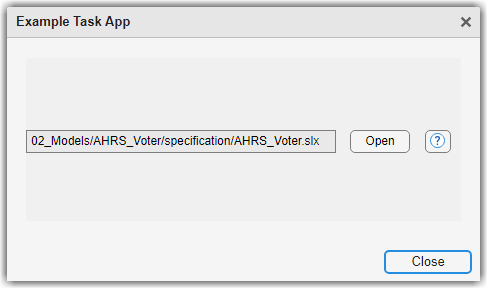

The App Designer app opens inside Process Advisor. The Example Task App dialog box shows the relative path to the model and several buttons for interacting with the app. The dialog box was designed in App Designer and provides a UI for opening a model and accessing other options using App Designer UI components. For example, you can open the current task iteration artifact, AHRS_Voter, by clicking Open in the Example Task App dialog box.

In Process Advisor, close the Example Task App dialog box by clicking Close.

In the project root, find the example app, TaskAppDemo.mlapp, and the example function, exampleProcess.m.

The exampleProcess function defines a padv.TaskTool object for the task app and adds the padv.TaskTool object, appOpenModel, to the example task and process model. Since the tool function is an App Designer app, the Type is set to padv.TaskToolType.TaskApp. The ToolFunction argument specifies the App Designer file name, TaskAppDemo, that defines the example task app UI.

% Example Task App
    appOpenModel = padv.TaskTool( ...
        Title        = "Example Task App", ...
        Type         = padv.TaskToolType.TaskApp, ...
        ToolFunction = "TaskAppDemo");
    pm.addTaskTool(appOpenModel);
...
taskExampleTaskApps.TaskTools = appOpenModel;

Open and inspect the exampleProcess.m file to view the full code. The processmodel.m file calls the exampleProcess function on the process model object, pm, to add the example process to the process model for the project.

Open the example task app in App Designer by double-clicking the TaskAppDemo.mlapp file in the root of the example project. You can use App Designer to interactively develop the example task app. For more information, see App Designer.

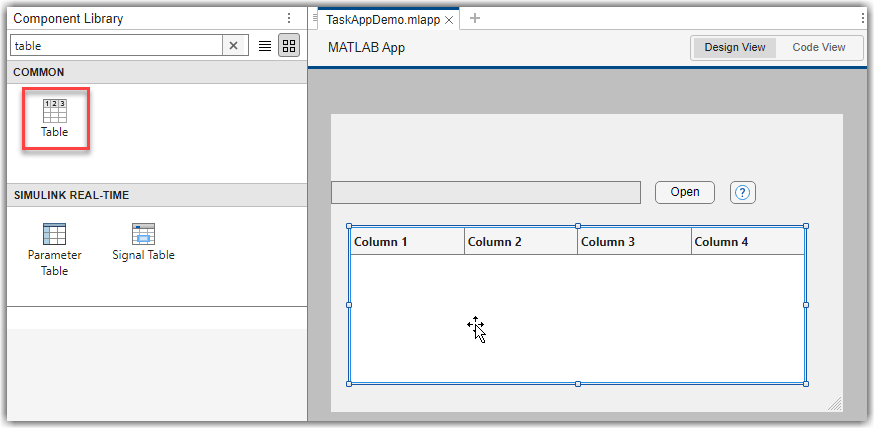

In App Designer, drag and drop a Table UI component onto the canvas. Resize the table and app layout as needed.

View the app code by clicking the Code View button above the canvas. This example app uses a startup function, startupFcn, to find the task context object, extract the task iteration artifact, and display the model file path in the app. When you open a task app, Process Advisor passes a padv.TaskContext object to the task app.

        function startupFcn(app, varargin)
            % Find the TaskContext object in varargin
            taskContextIndex = find(cellfun(@(x) isa(x, 'padv.TaskContext'), varargin), 1);

            if ~isempty(taskContextIndex)
                app.TaskContext = varargin{taskContextIndex};

                % Get the IterationArtifact
                iterationArtifact = app.TaskContext.getIterationArtifact();

                % Get the file path from the name field
                filePath = iterationArtifact.name;
                app.ModelFilePath.Value = filePath;

            end
        end

In the conditional block within startupFcn, add code that retrieves and displays the commit history for the current task iteration artifact in the table component of the app, app.UITable. The following code shows the updated startupFcn function.

        function startupFcn(app, varargin)
            % Find the TaskContext object in varargin
            taskContextIndex = find(cellfun(@(x) isa(x, 'padv.TaskContext'), varargin), 1);

            if ~isempty(taskContextIndex)
                app.TaskContext = varargin{taskContextIndex};

                % Get the IterationArtifact
                iterationArtifact = app.TaskContext.getIterationArtifact();

                % Get the file path from the name field
                filePath = iterationArtifact.name;
                app.ModelFilePath.Value = filePath;

                % Display commit history for iteration artifact
                repo = gitrepo;
                commitHistory = log(repo.CurrentBranch,File=filePath);
                app.UITable.Data = commitHistory;
                columnNames = commitHistory.Properties.VariableNames;
                app.UITable.ColumnName = columnNames;

            end
        end

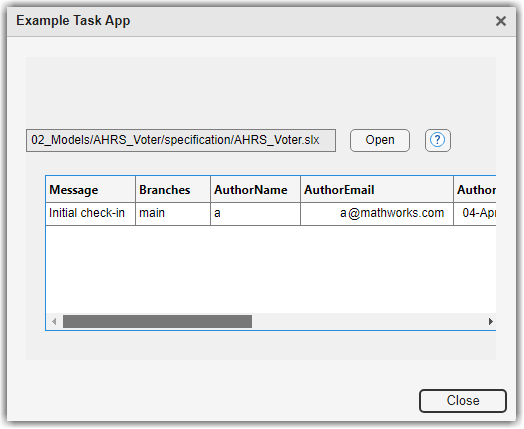

In Process Advisor, update the task information by clicking Refresh Tasks and open the task app for AHRS_Voter. The Example Task App dialog box shows a table with the commit message, branches, and authoring information for the AHRS_Voter model.

Integrate Custom Commands into Process Advisor

Starting in R2023b, you can integrate custom commands into your process model by using the addTaskTool function and TaskTools property. You represent the custom commands by using padv.TaskTool objects. For this example, you add two custom commands as tools for a task and view the tools in the options menu for the task in Process Advisor.

Open the Process Advisor example project. The model AHRS_Voter opens with the Process Advisor pane to the left of the Simulink^® canvas.

processAdvisorExampleStart

Define your custom command by creating a new MATLAB function file. The function must accept a TaskContext as a name-value argument and must be on the MATLAB path.

For this example, you can create a file named taskCmd1.m and define a custom function that accepts and displays an input argument.

function out = taskCmd1(inputArg, NamedValueArgs)
    arguments
    inputArg
    NamedValueArgs.TaskContext
    end

    disp(inputArg);

end

In the Process Advisor pane, click the Edit process model button to open the processmodel.m file for the project.

Replace the contents of the processmodel.m file with the following example code. The code defines:

• myTask — A custom task.

• myTaskTool — A custom tool for a task. The tool calls the function specified by the ToolFunction argument. In the Process Advisor context menu for a task, the tool has the title My Command 1. Since the tool function, taskCmd1, is a .m file for a function that defines a command for the task tool to execute, the Type is set to Command. The function accepts an input argument cmd1Arg.

Inside the process model, the code adds the task and tool to the process model and specifies the tool as one of the task tools for the task.

function processmodel(pm)
    % Define process model for project

    arguments
        pm padv.ProcessModel
    end

    % --- Task ---
    myTask = padv.Task("MyTask");
    pm.addTask(myTask);

    % --- TaskTool ---
    cmd1Arg = "myInputArg";
    myTaskTool = padv.TaskTool(ToolFunction="taskCmd1",...
        Title="My Command 1",...
        Type=padv.TaskToolType.Command,...
        Arguments={cmd1Arg});

    % --- Integrate ---
    pm.addTaskTool(myTaskTool);
    myTask.TaskTools = myTaskTool;

end

In Process Advisor, update the task information by clicking Refresh Tasks.

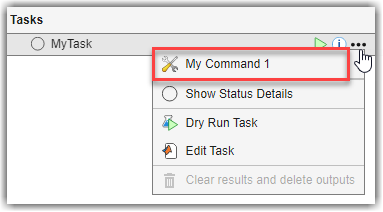

In the Tasks column, point to MyTask, open the options menu (...), and click My Command 1.

Process Advisor executes the command specified in the taskCmd1 function. The function displays the input argument, "myInputArg", in the MATLAB Command Window.

Version History

Introduced in R2023b
