createViewport

Create view of 3D environment

Since R2022b

Syntax

createViewport(world)

createViewport(world,Name=Value)

Description

createViewport(world) creates a view of the 3D environment specified by world with default values and saves the view as a field in the viewport structure. You can view the fields in the viewport structure from the Viewports property of the sim3d.World object.

If you do not create a viewport, then the Simulation 3D Viewer window displays the default view of the 3D environment from the field Default in the viewport structure. You can use the arrow keys and pointer to navigate in the environment.

createViewport(world,Name=Value) specifies additional options using one or more name-value arguments to create a custom view of the sim3d.World object specified by world. For example, to create a viewport named View1 at (5,0,2), set Name to View1 and Translation to [5 0 2].

If you create multiple viewports, you can use the setView function to set one as the view for the 3D environment.

Examples

Create Viewport

Create a viewport to view the 3D environment.

Create a world object using the sim3d.World object.

world = sim3d.World();

Create a box actor in the 3D environment using the sim3d.Actor object. Add the box actor to the world.

box = sim3d.Actor(ActorName='Box');
createShape(box,'box',[0.5 0.25 0.25]);
box.Color = [1 0 0];
add(world,box);

Create a viewport.

viewport = createViewport(world);

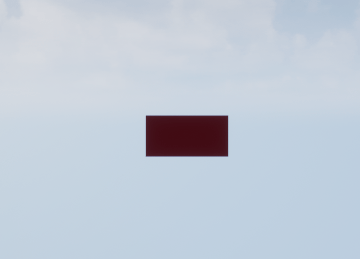

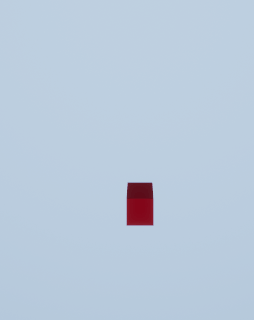

Run the simulation.

sampletime = 0.01;
stoptime = 5;
run(world,sampletime,stoptime);

Input Arguments

world — World object

sim3d.World object

World object that defines the 3D environment, specified as a sim3d.World object.

Example: world = sim3d.World()

Name-Value Arguments

Specify optional pairs of arguments as Name1=Value1,...,NameN=ValueN, where Name is the argument name and Value is the corresponding value. Name-value arguments must appear after other arguments, but the order of the pairs does not matter.

Example: createViewport(world,Name='View1',Translation=[1 2 3])

Name — Name of viewport

Viewpoint1 (default) | autogenerated name | character array | string

Name of viewport, specified as a character array or string. If you do not specify the name, then the software assigns the viewport an autogenerated name, Viewpoint1 and so on. Use this argument to set the field name of the viewport in the viewport structure.

Note

If you specify the same name as the viewport that already exists, then the software appends viewport name you specify with a unique identifier.

Example: Name="View1"

Translation — Relative translation

[-6 0 2] (default) | real 1-by-3 vector

Relative translation (x,y,z) of the viewport to the Scene Origin at (0,0,0), specified as a real 1-by-3 vector, in m. Use Translation to change the position of the viewport in the 3D environment along the X, Y, and Z axes of the coordinate system.

Example: Translation=[3 4 3]

Data Types: double

Rotation — Relative rotation

[0 0 0] (default) | real 1-by-3 vector

Relative rotation (roll, pitch, yaw) of the viewport to the Scene Origin at (0,0,0), specified as a real 1-by-3 vector, in rad. Use Rotation to rotate the viewport in the 3D environment.

Example: Rotation=[0 pi/2 pi/4]

Data Types: double

Version History

Introduced in R2022b

R2024b: Create multiple viewports with optional name-value input arguments

Use these optional name-value input arguments of createViewport function to create multiple viewports.

• Name: Set the name of the viewport.

• Translation: Set the translation of the viewport.

• Rotation: Set the rotation of the viewport.

Use the Viewports property of the sim3d.World object to access the viewports.
