OV2640 Camera Sensor
R2026bCapture JPEG images using ArduCam 2MP Mini Plus camera module with OV2640 sensor
Since R2023b
Libraries:
Simulink Support Package for Arduino Hardware /
Sensors
Description
Add-On Required: This feature requires the Simulink Support Package for Arduino Hardware add-on.
The OV2640 Camera Sensor block captures images in the JPEG format using the ArduCam Mini 2MP Plus camera module with an OV2640 sensor. The camera is attached to an Arduino® board. This block is a composite sensor block and uses both the SPI and I2C modules.
For a list of boards that support the OV2640 Camera Sensor block, see Supported Boards.
Note
You cannot add multiple OV2640 Camera Sensor blocks to a model.
Supported Boards
This list shows the supported board and the corresponding image resolutions.
| Arduino Board | Supported resolutions |
|---|---|
| Arduino Mega 2560a | 160x120, 176x144,
320x240 |
| Arduino Mega ADK | 160x120, 176x144,
320x240 |
| Arduino Due | 160x120, 176x144,
320x240 |
| Arduino MKR1000 | 160x120, 176x144,
320x240, 352x288 |
| Arduino MKR WiFi1010 | 160x120, 176x144,
320x240, 352x288 |
| Arduino MKR Zero | 160x120, 176x144,
320x240, 352x288 |
| Arduino Nano 33 IoT | 160x120, 176x144 |
| Arduino Nano 33 BLE SENSE | 160x120, 176x144 |
ESP32-WROOM ESP32-WROVER | 160x120, 176x144,
320x240, 352x288,
640x480, 800x600, 1024x768,
1600x1200 |
a Arduino Mega 2560 board supports the | |
Note
To avoid memory overuse on the hardware, on the Hardware tab of the Simulink® model, in the Prepare section, select Control Panel. In the new window that opens, click the Signal & Triggering button. In the second window, clear the Send multiple contiguous samples in same packet option in the Configuration section and click OK.

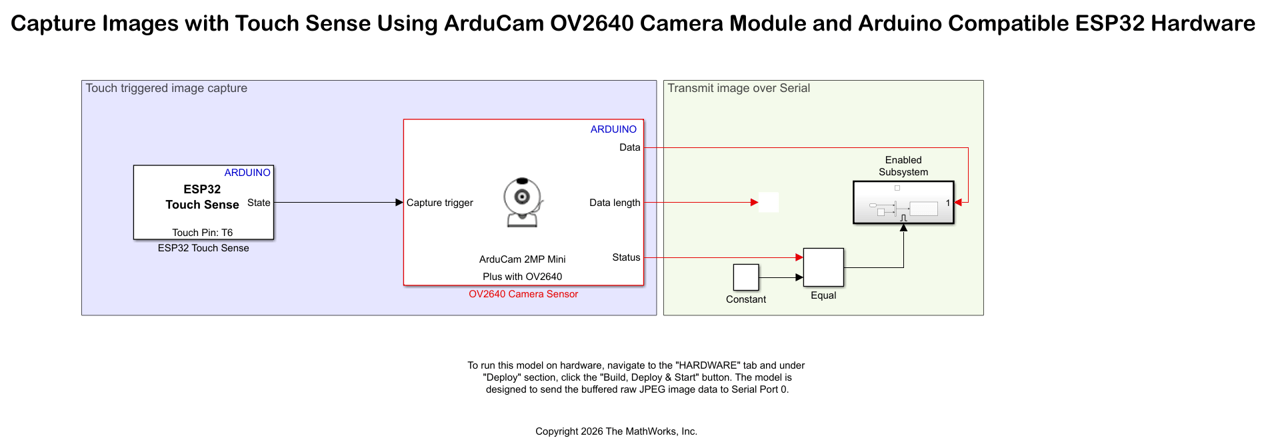

Examples
Ports
Input
Output
Parameters
Programmatic Use: Add Block
To add the block programmatically, use the add_block function with one of these library block paths as the source.
"arduinosensorlib/OV2640 Camera Sensor"
Example: add_block("arduinosensorlib/OV2640 Camera Sensor","myModel/myBlock",MakeNameUnique="on")
Version History
Introduced in R2023b
