jc_0741: Timing to update data used in state chart transition conditions
Sub ID Recommendations
NA-MAAB — No recommendations
JMAAB — a
Sub ID a
Variables that are used in a state transition condition shall not use state action
du to perform an update.
du is used to perform an update.

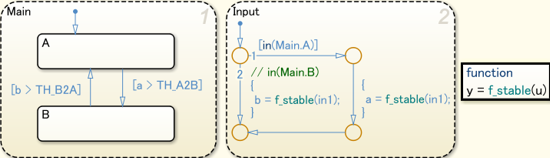

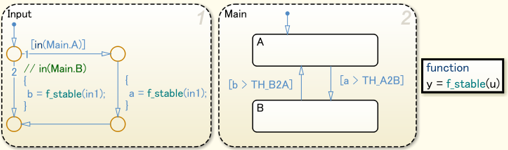

Sub ID a:
The execution order of the transition condition and implement of
duringcan be difficult to understand, which increases the risk of errors.
Model Advisor check: Check updates to variables used in state transition conditions (Simulink Check)
JMAAB guideline jc_0741, which is available in Control Algorithm Modeling Guidelines Using MATLAB, Simulink, and Stateflow on the MathWorks® website.
Transition Between Operating Modes (Stateflow)
Represent Operating Modes by Using States (Stateflow)
Execution of a Stateflow Chart (Stateflow)
Introduced in R2020a
