Slew Rate of Triangular Waveform

This example shows how to use the slew rate as an estimate of the rising and falling slopes of a triangular waveform. Create three triangular waveforms. One waveform has rising-falling slopes of $$\pm 2$$, one waveform has rising-falling slopes of $$\pm \frac{1}{2}$$, and one waveform has a rising slope of $$+2$$ and a falling slope of $$-\frac{1}{2}$$. Use slewrate to find the slopes of the waveforms.

Use tripuls to create a triangular waveform with rising-falling slopes of $$\pm 2$$. Set the sampling interval to 0.01 seconds, which corresponds to a sample rate of 100 hertz.

dt = 0.01;
t = -2:dt:2;

x = tripuls(t);

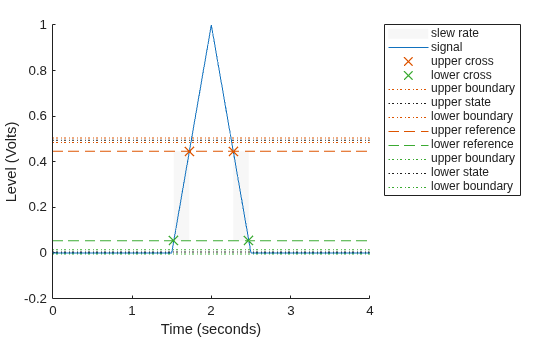

Compute and plot the slew rate for the triangular waveform. Input the sample rate (100 Hz) to obtain the correct positive and negative slope values.

slewrate(x,1/dt)

ans = 1×2

    2.0000   -2.0000

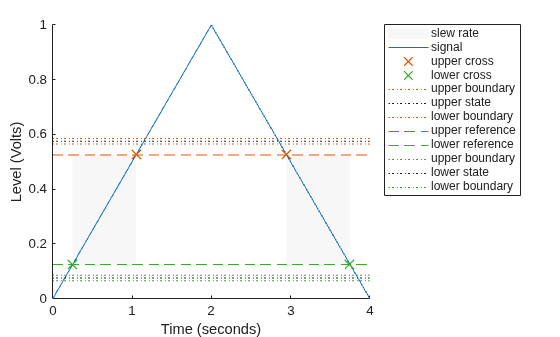

Change the width of the triangular waveform so it has slopes of $$\pm \frac{1}{2}$$. Compute and plot the slew rate.

x = tripuls(t,4);
slewrate(x,1/dt)

ans = 1×2

    0.5000   -0.5000

Create a triangular waveform with a rising slope of $$+2$$ and a falling slope of $$-\frac{1}{2}$$. Compute the slew rate.

x = tripuls(t,5/2,-3/5);
s = slewrate(x,1/dt)

s = 1×2

    2.0000   -0.5000

The first element of s is the rising slope and the second element is the falling slope. Plot the result.

slewrate(x,1/dt);
